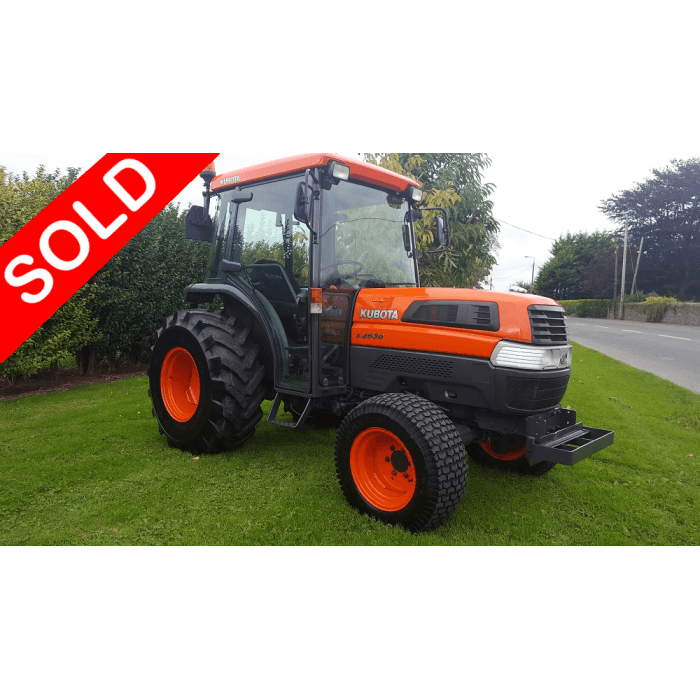

Kubota L4630HST

Last Updated: June 2024

Overview

The Kubota L4630HST is recognized as a versatile utility tractor, adept at an array of agricultural jobs. It operates using an E-TVCS, indirect injection diesel engine, ensuring efficient combustion to reduce emissions and provide consistent power. This engine, rated at 47.2 horsepower, couples with a 3-range hydrostatic transmission offering ease of control and a smooth operational experience. The L4630HST boasts a 4-cylinder engine with a displacement of 134.1 cubic inches, reaching a rated speed of 2700 rpm. It is designed for effective use with a Category 1 three-point hitch capable of lifting 2755.8 pounds, supported by a pto power of 38 horsepower. Its operating weight is 3516.4 pounds, signifying a solid and stable platform for various tasks including but not limited to plowing, harrowing, or mowing. The tractor's dimensions, including a wheelbase of 6.3 feet and outside frame width of 5.6 feet, contribute to its dynamic balance between efficiency in the field and maneuverability during tasks requiring tighter turns, with a turning radius of 9.6 feet.
Show more...

Key Specifications

Category: Utility

Power Output: 47.2

Transmission: HST (Hydrostatic Transmission) 3 range

Operating Weight: 3516.4

Fuel Type: Diesel

Lift Capacity: 2755.8

Kubota L4630HST vs. Similar Tractors

Power Output
Average
Greater than 45% of similar tractors.
Hitch Capacity
Average
Greater than 51% of similar tractors.
Operating Weight
Average
Greater than 30% of similar tractors.

Technical Specifications

Engine

Manufacturer
Unknown
Model
L4630 HST
Cooling Type
-
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
E-TVCS (Emission - Throttle Valve Controlled System) indirect injection
Cylinders
4
Displacement (ci)
134.1
Bore (in)
-
Stroke (in)
-
Rated RPM
2700
Power Output (hp)
47.2

Transmission

Type
HST (Hydrostatic Transmission) 3 range
Forward Gears
3
Reverse Gears
3
Total Gears
-

Dimensions

Length (in)
-
Width (in)
67.2 (assuming the width outside frame is the total width)
Height (in)
91.2 (assuming the height to the top of the cab is the total height)
Operating Weight (lb)
3516.4

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
-
Drive Type
-
Steering Type
-
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Agricultural
Manufacture - End Year
-
Hitch Type
Three-Point Hitch
Hitch Category
Category 1
Hitch Position
Rear
Hitch Capacity (lb)
2755.8
Operator Station Type
-
Starter Type
-
Brake Type
-
Hydraulic System Type
-
