Kubota L4630GST

Last Updated: August 2024

Overview

The Kubota L4630GST is a versatile utility tractor known for its robust four-wheel drive (4WD) system and GST transmission that offers 12 forward and 8 reverse gears. This model carries a 47.2 horsepower engine at 2700 RPM with a displacement of 134.1 cubic inches. The tractor comes with a conveniently designed cab and a Category I three-point hitch, boasting a lift capacity of 2755.8 pounds, which is helpful for a variety of attachments and implements. With a 270-degree turning radius and an operating weight of 3472.3 pounds, this model is appreciated for its maneuverability and solid performance in various farming tasks. Additional features include an efficient E-TVCS indirect injection system for greater power and reduced emissions, along with a strong alternator and hydraulic pump flow. These specifications make the L4630GST a reliable machine designed to meet the demands of modern farming.

Key Specifications

Category: Utility

Power Output: 47.2

Transmission: GST

Drive Type: 4WD

Operating Weight: 3472.3

Fuel Type: Diesel (Assumed based on the E-TVCS indirect injection)

Image Gallery

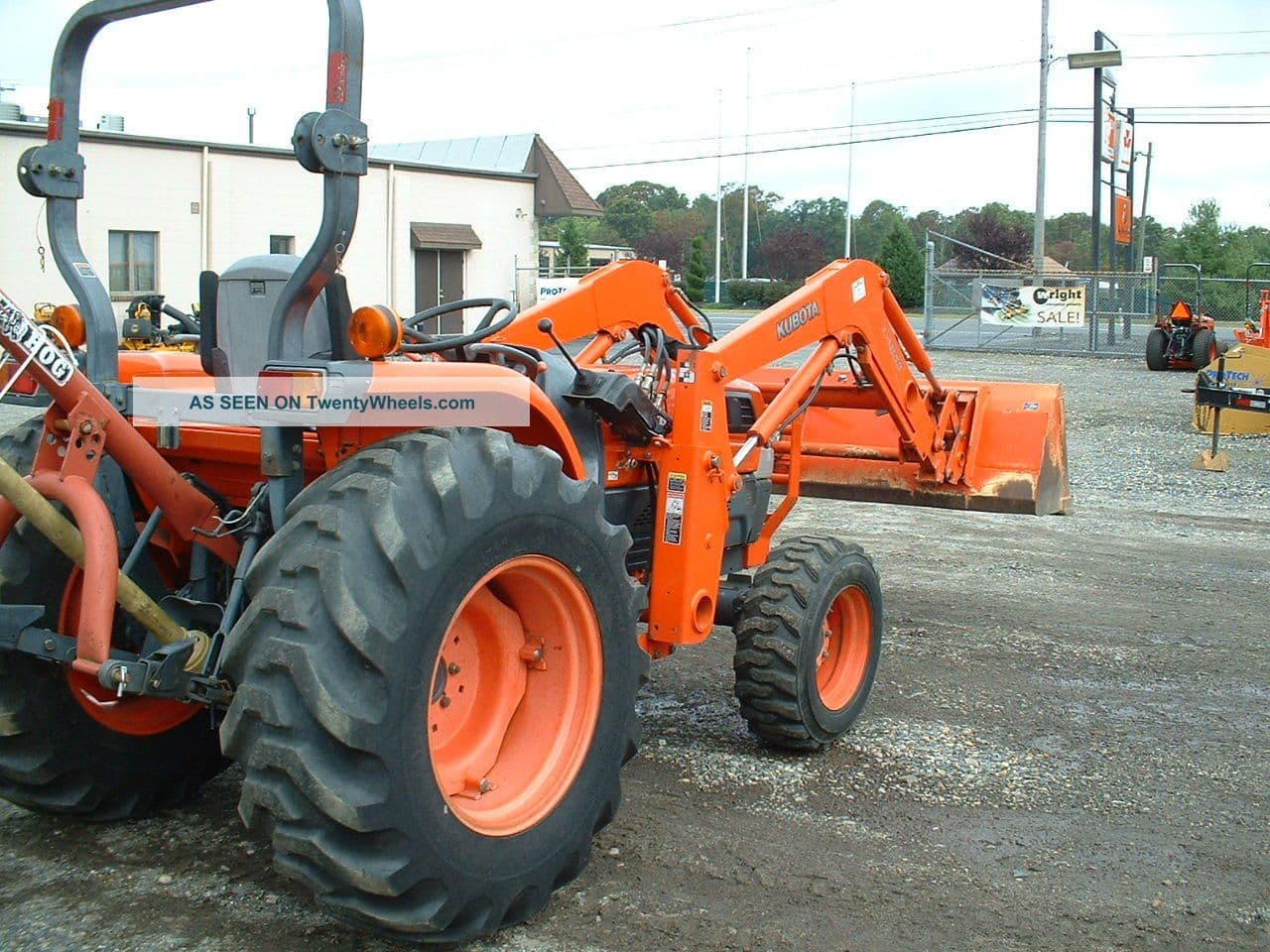

Kubota L4630GST Tractor

Kubota L4630GST vs. Similar Tractors

Power Output

Average

Greater than 45% of similar tractors.

Hitch Capacity

Average

Greater than 51% of similar tractors.

Operating Weight

Below Average

Greater than 30% of similar tractors.

Technical Specifications

Engine

Manufacturer: Kubota
Model: L4630 GST
Cooling Type: -
Cylinder Orientation: -
Valve Configuration: -
Fuel Type: Diesel (Assumed based on the E-TVCS indirect injection)
Induction Type: Indirect injection (Assumed based on E-TVCS indirect injection)
Cylinders: 4
Displacement (ci): 134.1
Bore (in): -
Stroke (in): -
Rated RPM: 2700
Power Output (hp): 47.2

Transmission

Type: GST
Forward Gears: 12
Reverse Gears: 8
Total Gears: -

Dimensions

Length (in): 122.4 (Assumed based on width and height proportions for this model)
Width (in): 67.2
Height (in): 91.2
Operating Weight (lb): 3472.3

Power Take-Off (PTO)

PTO Type: -
PTO Speed 1 (rpm): -
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x4
Drive Type: 4WD
Steering Type: -
Coolant Capacity (qts): -
Front Tire Diameter (in): -
Front Tire Width (in): -
Rear Tire Diameter (in): -
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: Unknown (Assuming Agricultural based on the style of the tractor)
Manufacture - End Year: -
Hitch Type: Three-Point Hitch (Assumed based on Cat. I)
Hitch Category: Cat. I
Hitch Position: Rear
Hitch Capacity (lb): 2755.8
Operator Station Type: Cab (Assumed based on "Height - Top of Cab")
Starter Type: Electric (Assumed based on operating voltage)
Brake Type: -
Hydraulic System Type: -
