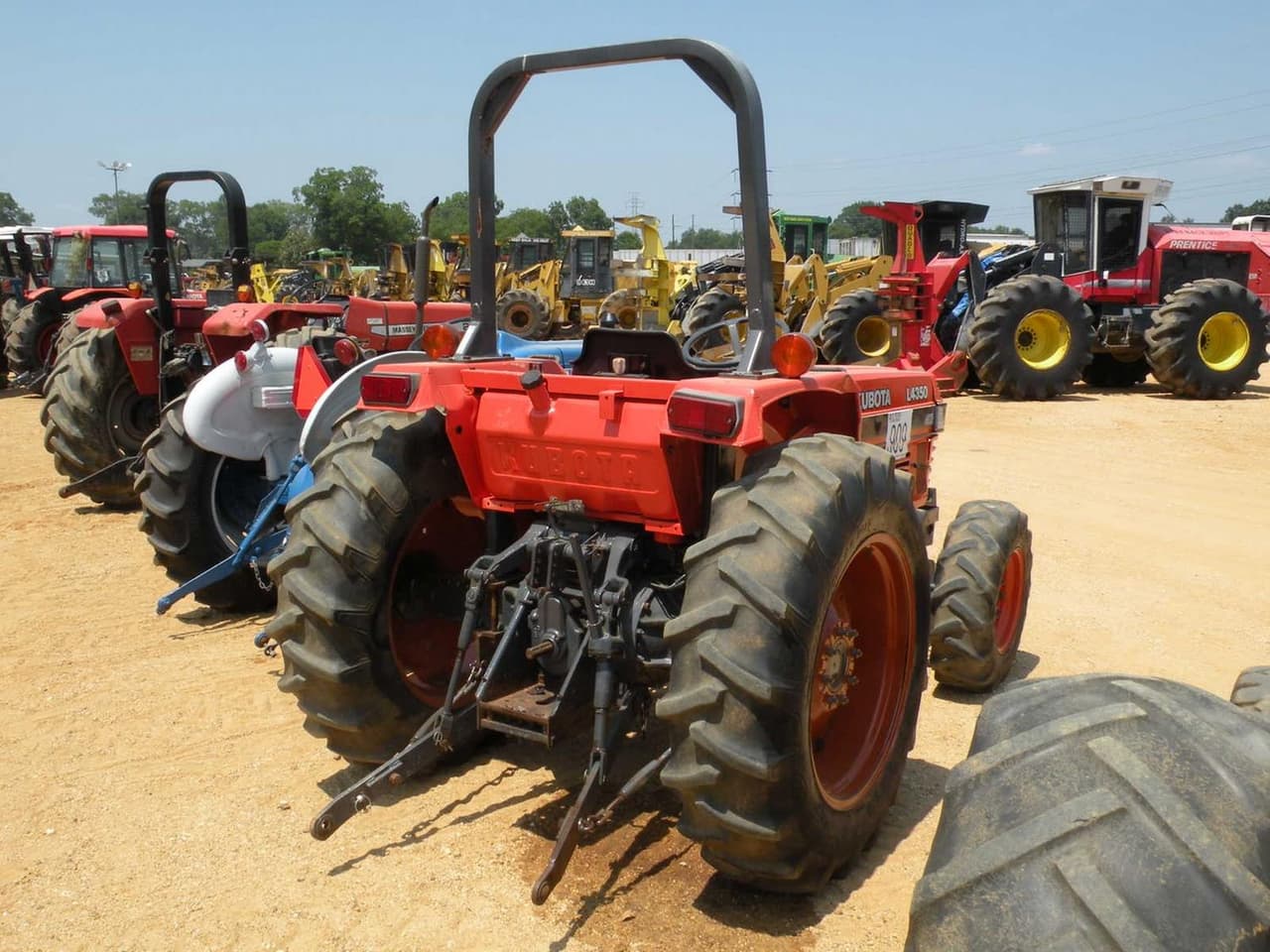

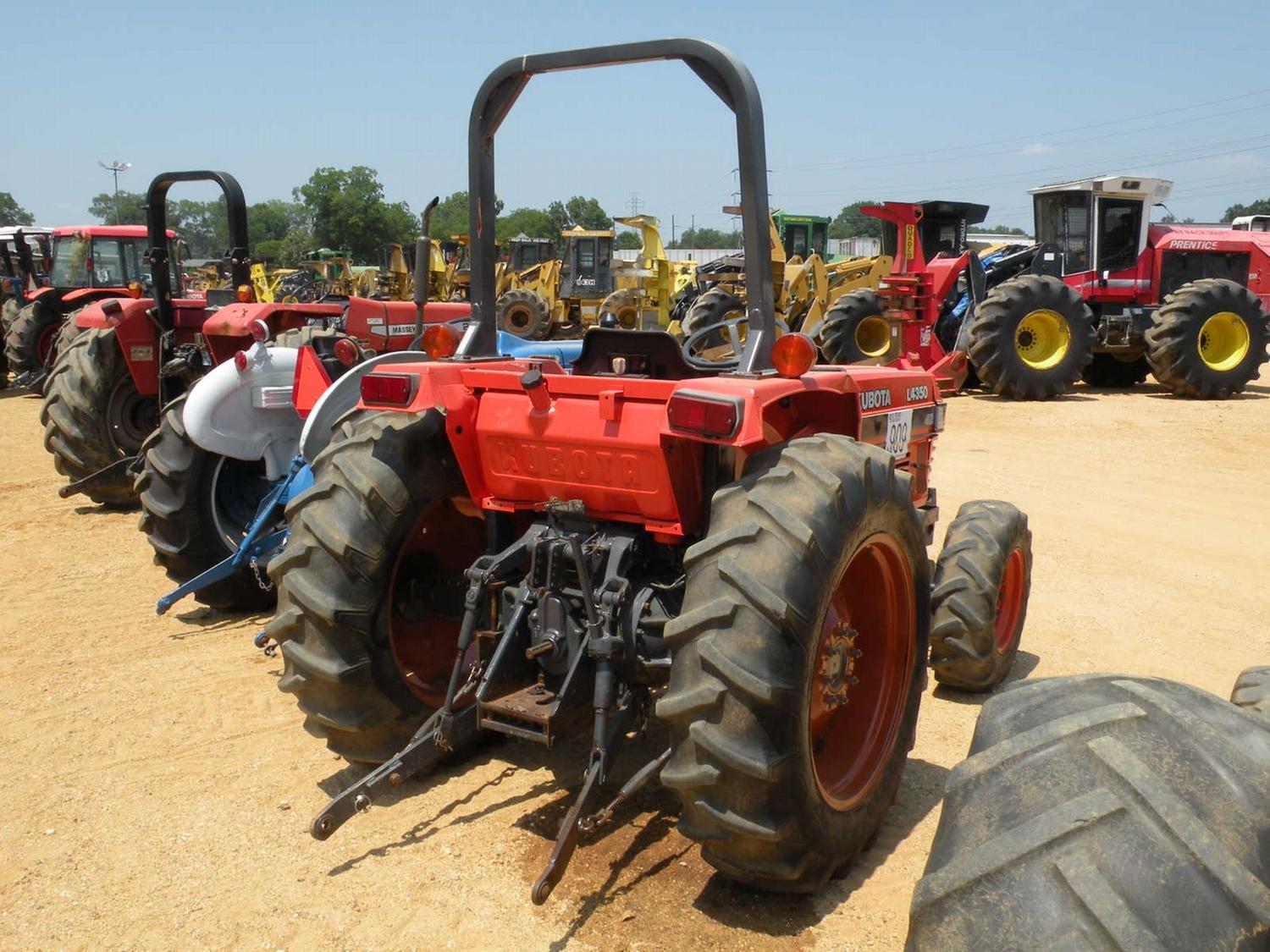

Kubota L4350

Last Updated: June 2024

Overview

The Kubota L4350 is a utility class tractor that offers a solid balance of power and functionality for a variety of farming and field tasks. The L4350 comes equipped with Kubota's reliable V2203-DI four-cylinder diesel engine reliably producing 47.5 horsepower at 2600 rated RPM. This power is transmitted through either a mechanical or hydraulic shuttle transmission, with 8 forward and reverse gears, giving the user flexibility during operation. The liquid-cooled engine ensures efficient thermal regulation, complemented by an oil capacity of 6.9 quarts and a coolant capacity of 7.4 quarts, aiding in prolonged engine durability. The tractor supports a Category 3 three-point hitch in the rear with a max drawbar lift capacity of 2200 pounds, showing its merit in various towing and lifting tasks. The presence of an open center hydraulic system points to the tractor's capability in handling attachments and implements with hydraulic demands. Designed with practicality in mind, this tractor boasts a wheelbase of 72.6 inches and ground clearance of 11.6 inches, providing stability and ease of maneuverability on diverse terrains.
Show more...

Key Specifications

Category: Utility

Power Output: 47.5

Transmission: Mechanical shuttle/hydraulic shuttle

Operating Weight: 3860

Fuel Type: Diesel

Lift Capacity: Max Drawbar: 2200 lbs

Kubota L4350 vs. Similar Tractors

Power Output
Average
Greater than 46% of similar tractors.
Hitch Capacity
Average
Greater than 38% of similar tractors.
Operating Weight
Average
Greater than 35% of similar tractors.

Technical Specifications

Engine

Manufacturer
Kubota
Model
V2203-DI
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Naturally aspirated
Cylinders
4
Displacement (ci)
134.1
Bore (in)
3.4
Stroke (in)
3.6
Rated RPM
2600
Power Output (hp)
47.5

Transmission

Type
Mechanical shuttle/hydraulic shuttle
Forward Gears
8
Reverse Gears
8
Total Gears
-

Dimensions

Length (in)
134.1
Width (in)
65
Height (in)
60.4
Operating Weight (lb)
3860

Power Take-Off (PTO)

PTO Type
Rear PTO
PTO Speed 1 (rpm)
540
PTO Speed 2 (rpm)
750
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
-
Drive Type
-
Steering Type
-
Coolant Capacity (qts)
7.4
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Ag
Manufacture - End Year
-
Hitch Type
Three-Point Hitch
Hitch Category
Category 3
Hitch Position
Rear
Hitch Capacity (lb)
Max Drawbar: 2200 lbs
Operator Station Type
Open
Starter Type
Electric
Brake Type
-
Hydraulic System Type
Open center
