Kubota L4310

Last Updated: June 2024

Overview

The Kubota L4310 is a versatile and reliable compact utility tractor being part of the Grand L10 series and was manufactured by Kubota from 1998 to 2002. It offers a choice of transmissions: an 8-speed mechanical shuttle (FST), a 3-range hydrostatic, and a Glide Shift (GST), catering to various operational needs. The tractor is powered by a Kubota V2203-A engine, a 2.2 L four-cylinder diesel engine providing 43 horsepower, suitable for a range of utility tasks. The L4310 features hydrostatic power steering for ease of maneuvering, wet disc brakes for effective stopping power, and offers the convenience of a two-post ROPS or an optional cab for operator comfort. With its open-center hydraulic system and lift capacity of 2,315 lbs, the L4310 can handle a variety of implements, making it a versatile workhorse for small farms and properties.

Key Specifications

Category: Utility

Power Output: 43

Transmission: Mechanical shuttle, Hydrostatic, Automatic fully synchronized (GST)

Drive Type: 2WD and 4WD options

Operating Weight: 2875 to 3520

Fuel Type: Diesel

Image Gallery

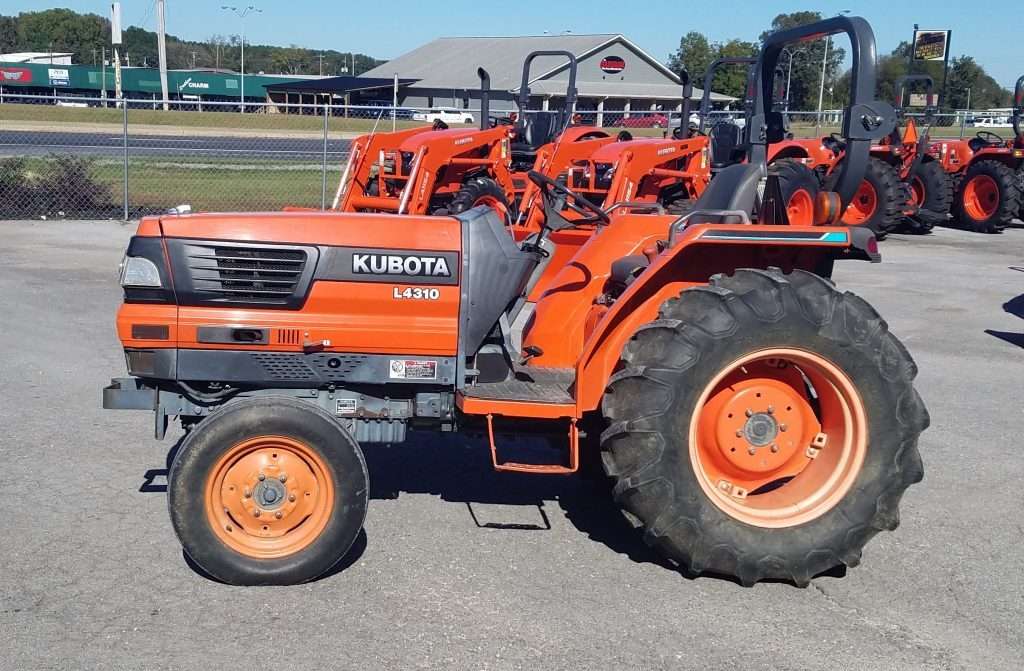

Kubota L4310 Tractor

Kubota L4310 vs. Similar Tractors

Power Output

Average

Greater than 40% of similar tractors.

Hitch Capacity

Average

Greater than 39% of similar tractors.

Operating Weight

Above Average

Greater than 84% of similar tractors.

Technical Specifications

Engine

Manufacturer: Kubota
Model: V2203-A
Cooling Type: Liquid-cooled
Cylinder Orientation: Inline
Valve Configuration: -
Fuel Type: Diesel
Induction Type: Naturally aspirated
Cylinders: 4
Displacement (ci): 134.1
Bore (in): 3.43
Stroke (in): 3.64
Rated RPM: -
Power Output (hp): 43

Transmission

Type: Mechanical shuttle, Hydrostatic, Automatic fully synchronized (GST)
Forward Gears: 8 (FST and GST), Infinite (3-range) for Hydrostatic
Reverse Gears: 8 (FST and GST), Infinite (3-range) for Hydrostatic
Total Gears: -

Dimensions

Length (in): 118.9
Width (in): 62.4
Height (in): 84.4
Operating Weight (lb): 2875 to 3520

Power Take-Off (PTO)

PTO Type: Independent
PTO Speed 1 (rpm): 540
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x2 2WD (L4310F)
Drive Type: 2WD and 4WD options
Steering Type: Hydrostatic power
Coolant Capacity (qts): 7.9
Front Tire Diameter (in): 16 (2WD)
Front Tire Width (in): -
Rear Tire Diameter (in): 24
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: -
Manufacture - End Year: 2002
Hitch Type: -
Hitch Category: -
Hitch Position: -
Hitch Capacity (lb): 2315
Operator Station Type: Two-post ROPS or Cab (option)
Starter Type: Electric
Brake Type: Wet disc type
Hydraulic System Type: Open center
