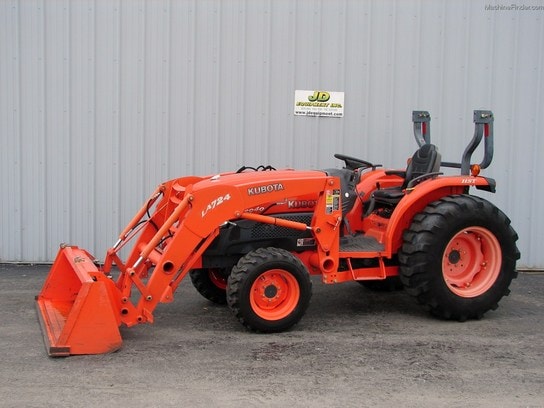

Kubota L3940

Last Updated: June 2024

Overview

The Kubota L3940 is a versatile compact utility tractor designed by Kubota, a well-known and respected manufacturer in the agricultural industry. Kubota manufactured the L3940 model from 2007 to 2013 as part of their L40 series. Incorporating a reliable Kubota V2003 diesel engine with a liquid-cooled four-cylinder configuration, the tractor provides a healthy 38.5 horsepower to tackle various farming needs. The L3940 offers multiple transmission options including a hydrostatic transmission providing infinite gear ranges in both forward and reverse, as well as two other manual transmissions (sync shuttle and glide shift) with a differing number of gears. The compact dimensions and 4WD make it suitable for a range of agricultural tasks, while the tractor also provides comfort options in the form of two-post ROPS or an optional Grand Cab. The various PTO options and open-center hydraulic system further enhance the versatility of this tractor model. Its powerful hydraulic system, three-point hitch, and a selection of tire types make the Kubota L3940 a practical choice for small farm or specialty agricultural work.
Show more...

Key Specifications

Category: Utility

Power Output: 38.5

Transmission: Hydrostatic, Sync shuttle, Glide shift

Drive Type: 4WD

Operating Weight: 3483

Fuel Type: Diesel

Kubota L3940 vs. Similar Tractors

Power Output
Average
Greater than 35% of similar tractors.
Hitch Capacity
Average
Greater than 67% of similar tractors.
Operating Weight
Below Average
Greater than 30% of similar tractors.

Technical Specifications

Engine

Manufacturer
Kubota
Model
V2003
Cooling Type
Liquid-cooled
Cylinder Orientation
Inline
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Natural Aspiration
Cylinders
4
Displacement (ci)
122
Bore (in)
3.3
Stroke (in)
3.6
Rated RPM
2700
Power Output (hp)
38.5

Transmission

Type
Hydrostatic, Sync shuttle, Glide shift
Forward Gears
Infinite (3-range), 8, 12 (based on transmission type; HST Plus, FST, GST)
Reverse Gears
Infinite (3-range), 8, 8 (based on transmission type; HST Plus, FST, GST)
Total Gears
-

Dimensions

Length (in)
121.5
Width (in)
66.5
Height (in)
97.4
Operating Weight (lb)
3483

Power Take-Off (PTO)

PTO Type
Semi-independent (optional), Independent
PTO Speed 1 (rpm)
540
PTO Speed 2 (rpm)
2000 (middle PTO)
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
Hydrostatic power
Coolant Capacity (qts)
7.9
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Ag, Lawn/Turf, Industrial
Manufacture - End Year
2013
Hitch Type
Three-Point Hitch
Hitch Category
Category I
Hitch Position
Rear
Hitch Capacity (lb)
3860 lbs
Operator Station Type
Two-post ROPS or Grand Cab (optional)
Starter Type
Electric
Brake Type
Wet disc
Hydraulic System Type
Open center
