Kubota L3830DT

Last Updated: June 2024

Overview

The Kubota L3830DT is a 4-wheel drive compact utility tractor, driven by a 39 horsepower Kubota diesel engine with an E-TVCS indirect injection system. It features a robust transmission with 8 forward and 8 reverse gears, allowing for versatility in a variety of tasks. The model also benefits from a Category I three-point hitch system with a lift capacity of 2755.8 pounds, suitable for numerous attachments and implements. A ground clearance of 14.8 inches and a modest wheelbase of 6.1 feet make it capable of providing good maneuverability in varying terrains. Additionally, a maximum speed of 16 mph enables the L3830DT to transition efficiently between job locations.

Key Specifications

Category: Utility

Power Output: 39

Transmission: FST

Drive Type: 4WD (assuming based on model number DT typically indicates Kubota's 4WD models)

Operating Weight: 3262.9

Fuel Type: Diesel (assumed based on E-TVCS indirect injection common in diesel engines)

Image Gallery

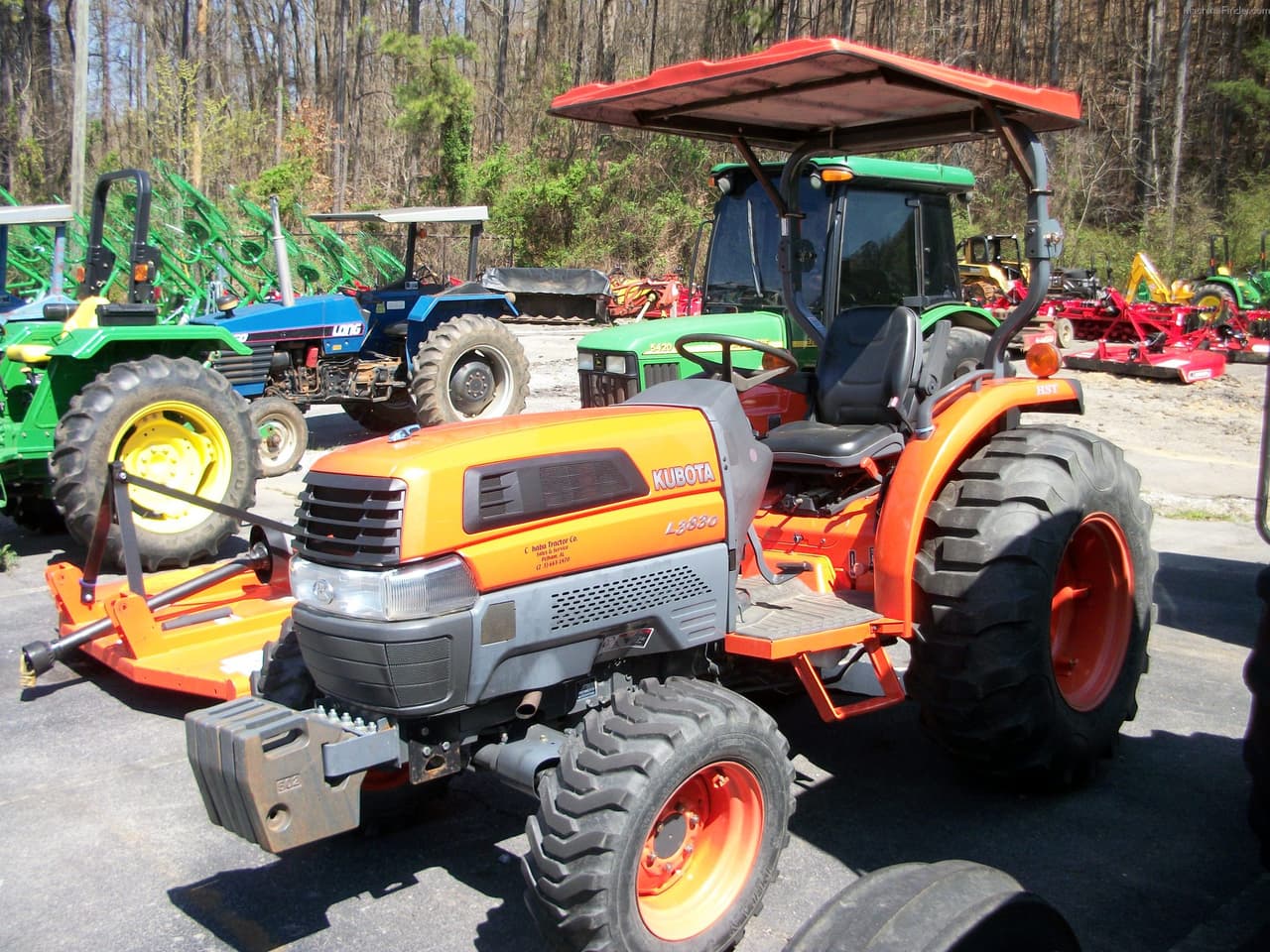

Kubota L3830DT Tractor

Kubota L3830DT vs. Similar Tractors

Power Output

Average

Greater than 35% of similar tractors.

Hitch Capacity

Average

Greater than 51% of similar tractors.

Operating Weight

Below Average

Greater than 28% of similar tractors.

Technical Specifications

Engine

Manufacturer: Kubota
Model: L3830 DT
Cooling Type: -
Cylinder Orientation: -
Valve Configuration: -
Fuel Type: Diesel (assumed based on E-TVCS indirect injection common in diesel engines)
Induction Type: E-TVCS indirect injection
Cylinders: 3
Displacement (ci): 111.5
Bore (in): -
Stroke (in): -
Rated RPM: 2700
Power Output (hp): 39

Transmission

Type: FST
Forward Gears: 8
Reverse Gears: 8
Total Gears: -

Dimensions

Length (in): 117.6 (Based on incorrect overall length provided, assumed it is a typo and meant to be 117.8 inches as 9.8 inches would be unreasonable for a tractor)
Width (in): 67.2 (Converted from 5.6 ft)
Height (in): 91.2 (Converted from 7.6 ft)
Operating Weight (lb): 3262.9

Power Take-Off (PTO)

PTO Type: -
PTO Speed 1 (rpm): -
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x4 (assuming based on model number DT typically indicates Kubota's 4WD models)
Drive Type: 4WD (assuming based on model number DT typically indicates Kubota's 4WD models)
Steering Type: -
Coolant Capacity (qts): -
Front Tire Diameter (in): Unknown (size 8.3-16 does not provide diameter)
Front Tire Width (in): Unknown (size 8.3-16 suggests approximately 8.3")
Rear Tire Diameter (in): Unknown (size 14.9-24 does not provide diameter)
Rear Tire Width (in): Unknown (size 14.9-24 suggests approximately 14.9")
Front/Rear Rim Diameter (in): 16/24 (implied from tire size notation 8.3-16 front, 14.9-24 rear)
Tire Type: -
Manufacture - End Year: -
Hitch Type: Three-Point Hitch
Hitch Category: Cat. I
Hitch Position: Rear
Hitch Capacity (lb): 2755.8
Operator Station Type: -
Starter Type: -
Brake Type: -
Hydraulic System Type: -
