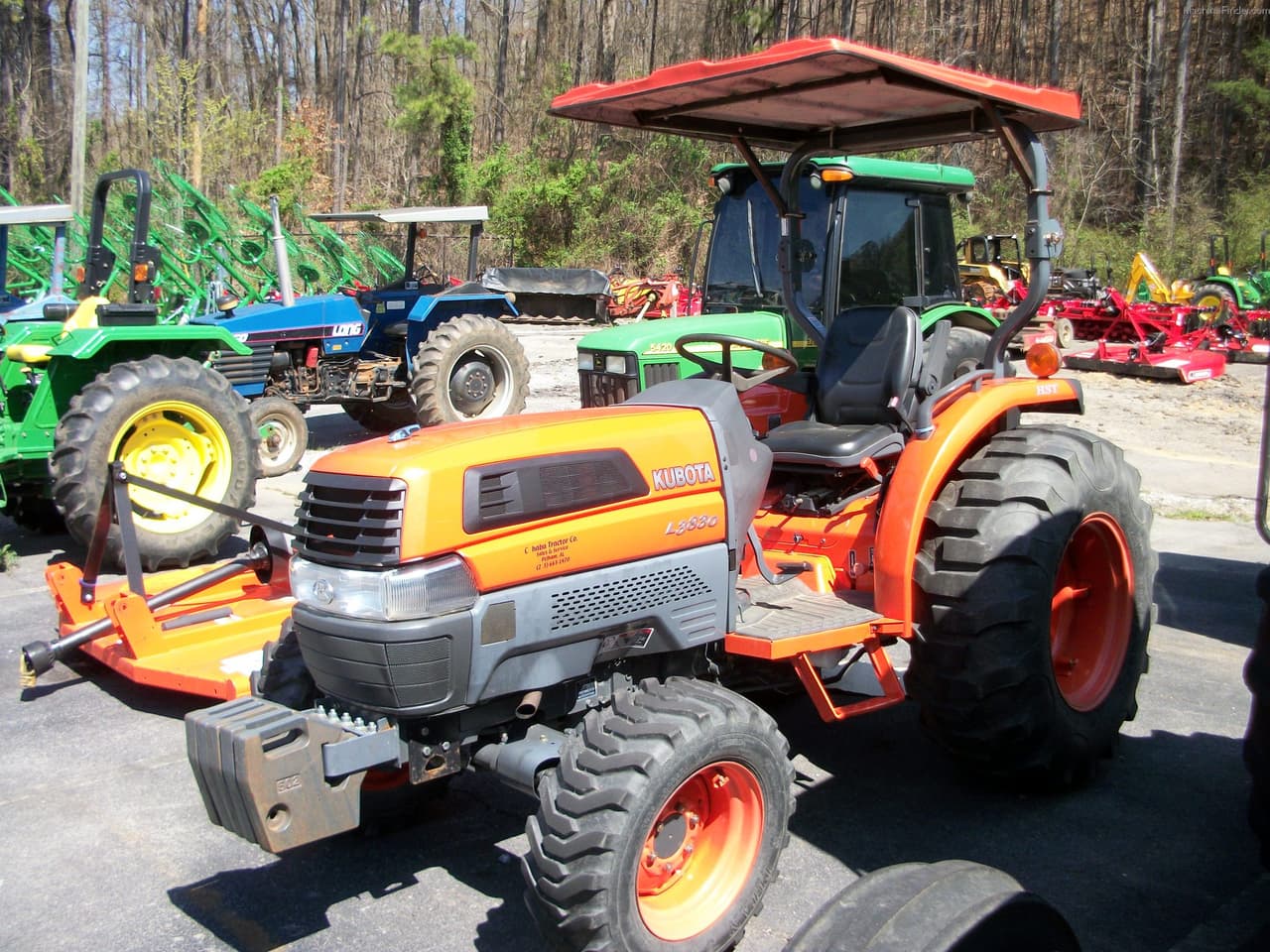

Kubota L3830

Last Updated: June 2024

Overview

The Kubota L3830 is a versatile and robust compact utility tractor ideal for a range of agricultural tasks. Manufactured by Kubota between 2003 and 2007 as part of the L30 series, it was made available with either a 2WD or 4WD chassis. Powered by the reliable Kubota D1803 three-cylinder liquid-cooled diesel engine, the L3830 comes with a choice of hydrostatic, fully synchronized, or glide shift transmissions providing different gear arrangements to suit varied tasks and terrain. With user-friendly hydrostatic power steering and wet disc type brakes, as well as an open operator station with two-post ROPS, the L3830 balances functionality and operator comfort. The tractor's hydraulic system is based on an open-center design, with a hitch lift capacity capable of handling substantial loads. The option of a LA723 loader adds to the L3830's versatility, making it a valuable asset for small-scale farming, estate management, and other utility operations.
Show more...

Key Specifications

Category: Utility

Power Output: 37.4

Transmission: Hydrostatic / Fully Synchronized / Glide Shift

Operating Weight: 3150 (2WD) / 3340 (4WD)

Fuel Type: Diesel

Lift Capacity: 3859

Kubota L3830 vs. Similar Tractors

Power Output
Average
Greater than 34% of similar tractors.
Hitch Capacity
Average
Greater than 67% of similar tractors.
Operating Weight
Excellent
Greater than 95% of similar tractors.

Technical Specifications

Engine

Manufacturer
Kubota
Model
D1803
Cooling Type
Liquid-cooled
Cylinder Orientation
Inline
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Naturally Aspirated
Cylinders
3
Displacement (ci)
111.4
Bore (in)
3.43
Stroke (in)
4.03
Rated RPM
2700
Power Output (hp)
37.4

Transmission

Type
Hydrostatic / Fully Synchronized / Glide Shift
Forward Gears
Infinite (3-range) / 8 / 12
Reverse Gears
Infinite (3-range) / 8 / 8
Total Gears
-

Dimensions

Length (in)
121.7 (2WD) / 117.5 (4WD)
Width (in)
66.1
Height (in)
90.9
Operating Weight (lb)
3150 (2WD) / 3340 (4WD)

Power Take-Off (PTO)

PTO Type
Independent
PTO Speed 1 (rpm)
540
PTO Speed 2 (rpm)
2000
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD / 4x4 MFWD 4WD
Drive Type
-
Steering Type
Hydrostatic Power
Coolant Capacity (qts)
7.9
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Ag (Agricultural)
Manufacture - End Year
2007
Hitch Type
Three-Point Hitch
Hitch Category
I
Hitch Position
Rear
Hitch Capacity (lb)
3859
Operator Station Type
Open Operator Station with two-post ROPS
Starter Type
Electric
Brake Type
Wet disc
Hydraulic System Type
Open Center
