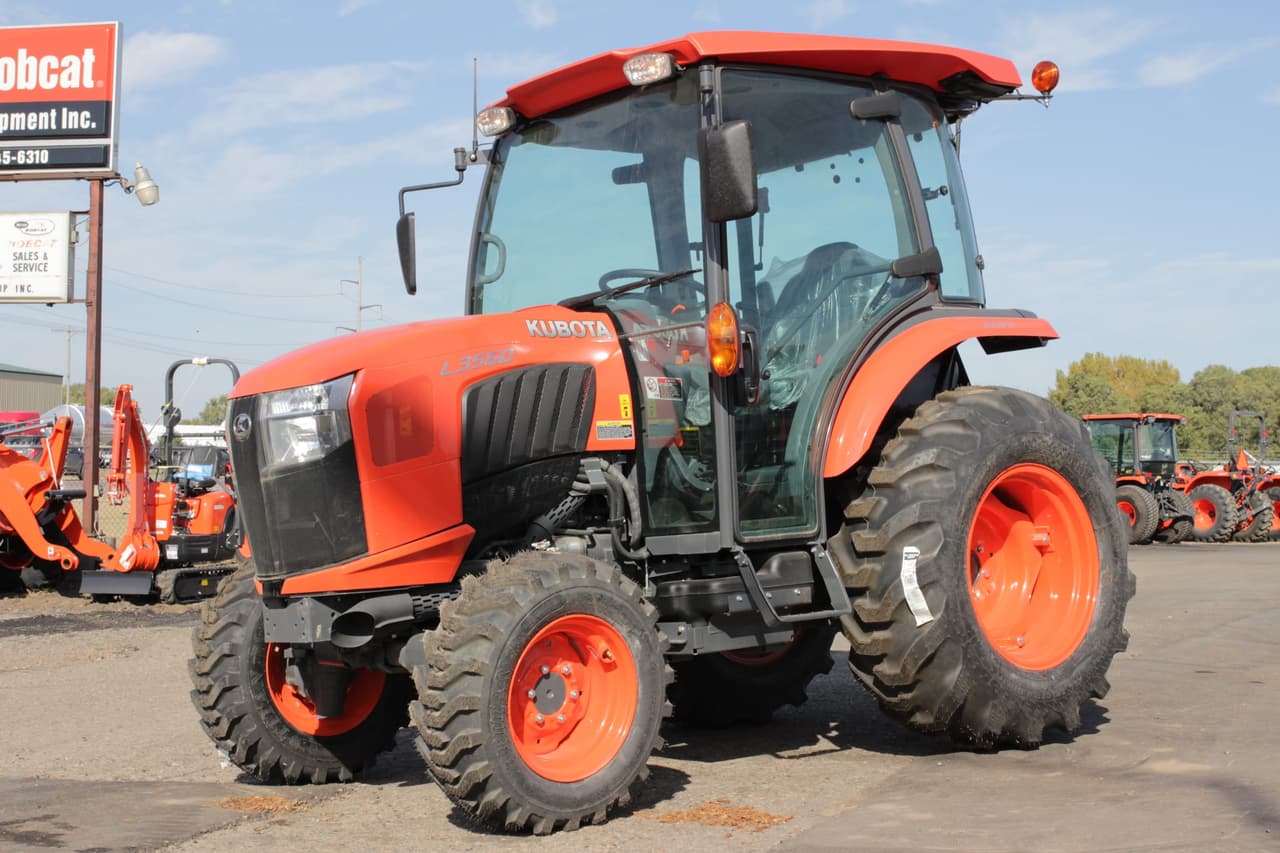

Kubota L3560DTRC

Last Updated: June 2024

Overview

The Kubota L3560DTRC is a versatile tractor capable of handling a variety of tasks. It is equipped with a diesel-powered engine manufactured by Kubota, specifically the L3560DTRC model. This engine features a liquid cooling system, natural aspiration with EGR, three cylinders, and an indirect injection system. The tractor has a displacement of 148.5 cubic inches, a bore of 3.5 inches, and a stroke of 4.1 inches. The engine's rated speed is at 2700 rpm, while its gross power output is 37 hp. It includes a hydrostatic power steering system, which gives the user easier control and maneuverability. The tractor's transmission type is listed as FST, with a total of 8 forward gears and 8 reverse gears. This model comes with a wet-disc brake system and an independent power take-off (PTO) system capable of running at two different speeds: 540 rpm for the rear PTO and 2000 rpm for the mid-PTO. The three-point hitch system is Category 1, with a hitch lift capacity of 2645.6 pounds, suitable for a variety of implements.
Show more...

Key Specifications

Category: Utility

Power Output: 37

Transmission: FST

Operating Weight: 3351.1

Fuel Type: Diesel

Lift Capacity: 2645.6

Kubota L3560DTRC vs. Similar Tractors

Power Output
Average
Greater than 33% of similar tractors.
Hitch Capacity
Average
Greater than 46% of similar tractors.
Operating Weight
Below Average
Greater than 29% of similar tractors.

Technical Specifications

Engine

Manufacturer
Kubota
Model
L3560DTRC
Cooling Type
Liquid-cooled
Cylinder Orientation
Vertical
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Natural with EGR
Cylinders
3
Displacement (ci)
148.5
Bore (in)
3.5
Stroke (in)
4.1
Rated RPM
2700
Power Output (hp)
37

Transmission

Type
FST
Forward Gears
8
Reverse Gears
8
Total Gears
-

Dimensions

Length (in)
115
Width (in)
60 (assuming the given width of 5 ft is correct)
Height (in)
98.4 (assuming the given height of 8.2 ft is correct)
Operating Weight (lb)
3351.1

Power Take-Off (PTO)

PTO Type
Independent
PTO Speed 1 (rpm)
540
PTO Speed 2 (rpm)
2000
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
-
Drive Type
-
Steering Type
Hydrostatic power steering
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
-
Manufacture - End Year
-
Hitch Type
Three-Point Hitch
Hitch Category
Category 1
Hitch Position
-
Hitch Capacity (lb)
2645.6
Operator Station Type
-
Starter Type
-
Brake Type
Wet disc type
Hydraulic System Type
-
