Kubota L355

Last Updated: June 2024

Overview

The Kubota L355 is a 4WD compact utility tractor from the L series. This tractor was manufactured by Kubota from 1982 to 1987. It features a 36 horsepower Kubota diesel engine, and is designed with a gear shift transmission that includes 8 forward and 8 reverse gears. The tractor is equipped with a mechanical front wheel drive system, integral power steering, and wet disc brakes. Additionally, the L355 has an operating weight of 3020 lbs and a three-point hitch of Category I. It provides a rear live PTO with a speed of 540 rpm. Notable for its liquid-cooled four-cylinder diesel engine, the L355 provides reliable power for a variety of agricultural tasks within its compact utility class. It comes with an open operator station for ease of access and operation.

Key Specifications

Category: Utility

Power Output: 36

Transmission: Gear shift

Drive Type: MFWD (Mechanical Front Wheel Drive)

Operating Weight: 3020

Fuel Type: Diesel

Image Gallery

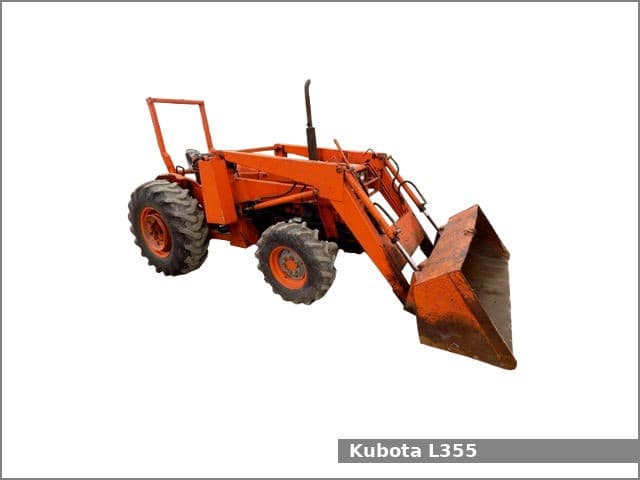

Kubota L355 Tractor

Kubota L355 vs. Similar Tractors

Power Output

Average

Greater than 32% of similar tractors.

Operating Weight

Below Average

Greater than 25% of similar tractors.

Technical Specifications

Engine

Manufacturer: Kubota
Model: V1701
Cooling Type: Liquid-cooled
Cylinder Orientation: Inline
Valve Configuration: -
Fuel Type: Diesel
Induction Type: Natural aspiration
Cylinders: 4
Displacement (ci): 105.7
Bore (in): 3.23
Stroke (in): 3.23
Rated RPM: -
Power Output (hp): 36

Transmission

Type: Gear shift
Forward Gears: 8
Reverse Gears: 8
Total Gears: -

Dimensions

Length (in): 130.3
Width (in): 64.2
Height (in): 81.3
Operating Weight (lb): 3020

Power Take-Off (PTO)

PTO Type: Rear Live PTO
PTO Speed 1 (rpm): 540
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x4 MFWD 4WD
Drive Type: MFWD (Mechanical Front Wheel Drive)
Steering Type: Power
Coolant Capacity (qts): -
Front Tire Diameter (in): 16
Front Tire Width (in): 8.6
Rear Tire Diameter (in): 24
Rear Tire Width (in): 13.6
Front/Rear Rim Diameter (in): -
Tire Type: Ag
Manufacture - End Year: 1987
Hitch Type: Three-Point Hitch
Hitch Category: Category I
Hitch Position: Rear
Hitch Capacity (lb): -
Operator Station Type: Open
Starter Type: Electric
Brake Type: Wet disc
Hydraulic System Type: Open center
