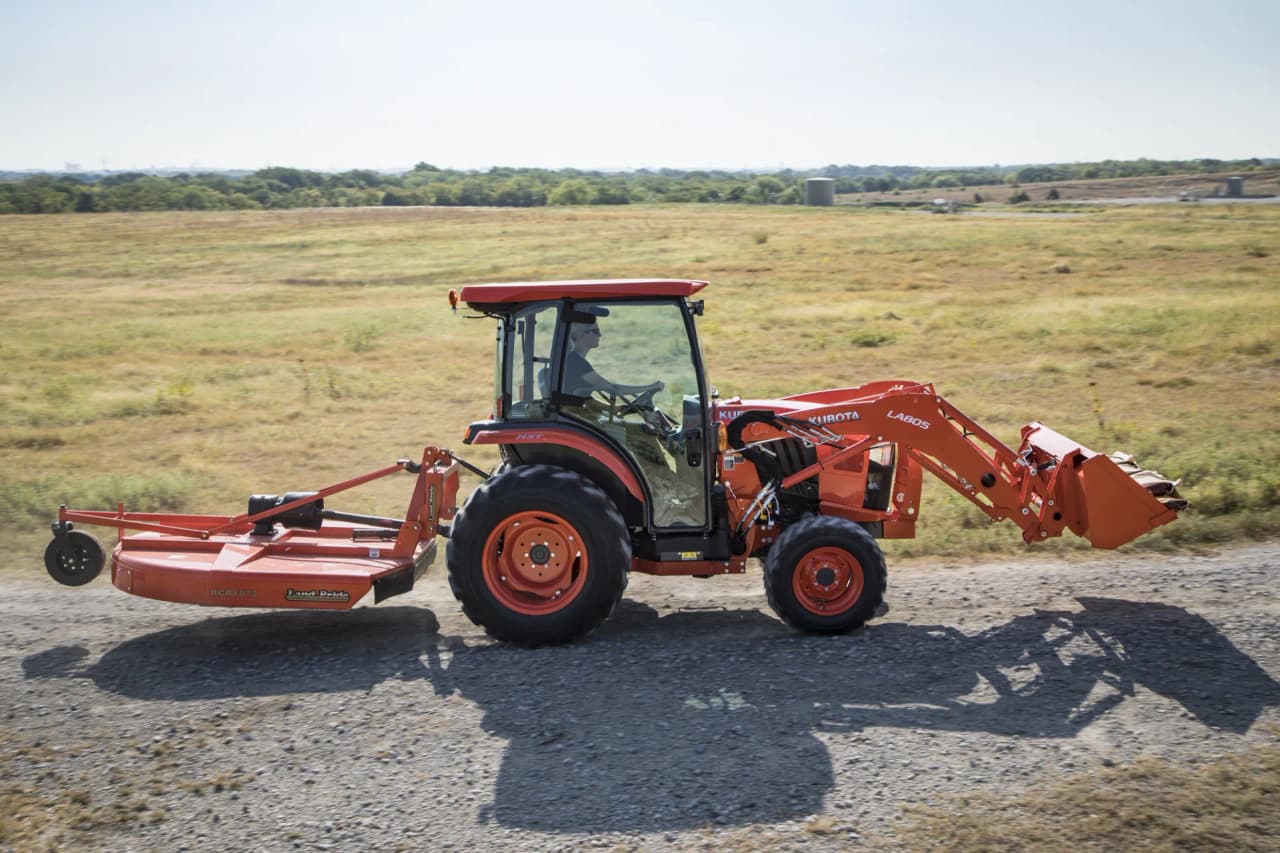

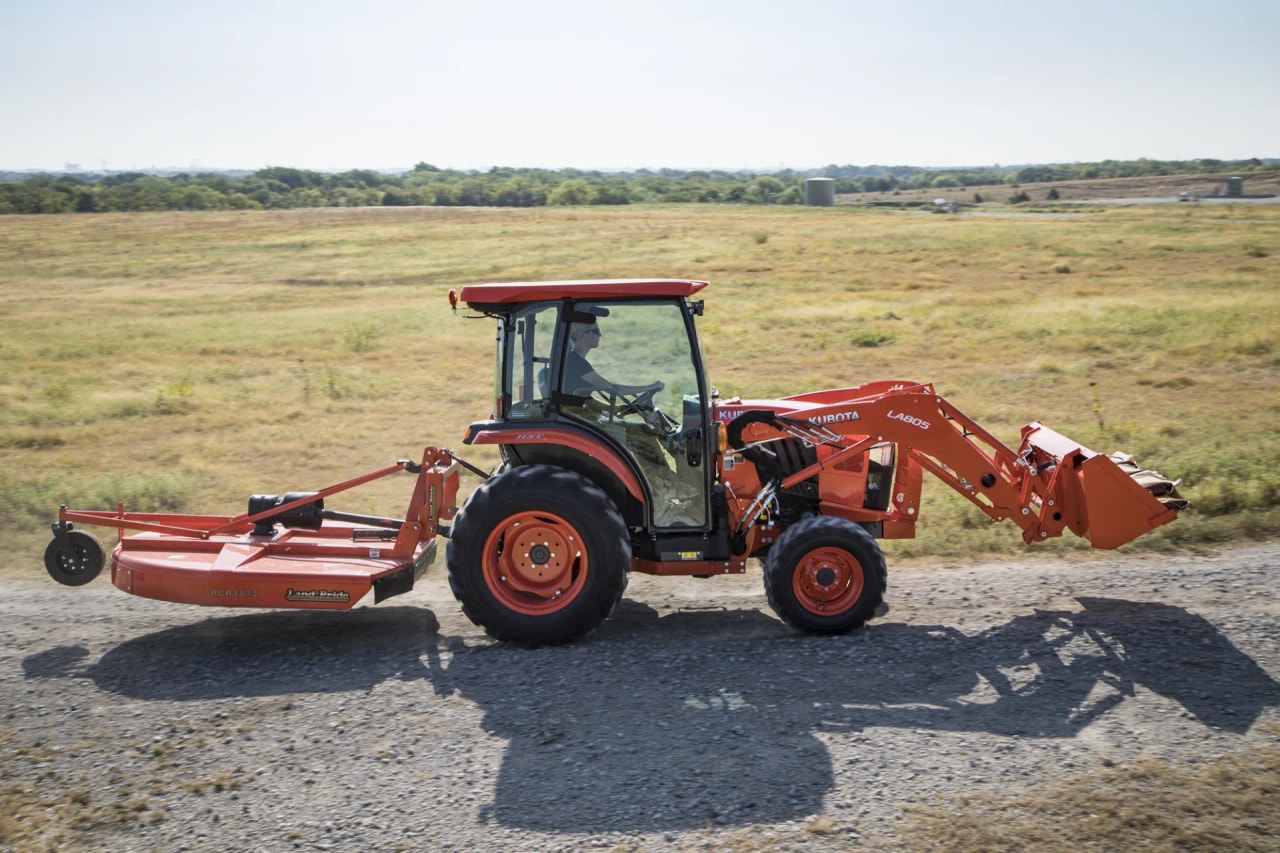

Kubota L3540GST

Last Updated: June 2024

Overview

The Kubota L3540GST is a utility tractor known for its balance of power and functionality. The L3540 model features a 37 horsepower engine at a rated RPM of 2700. This engine is a 3-cylinder E-TVCS model from Kubota, with a natural aspiration and a displacement of 111.4 cubic inches. This tractor comes with a GST transmission, providing 12 forward gears and 8 reverse gears, emphasizing versatility and control. The operating weight is 3296 pounds, which, in conjunction with the tractor's robust lift capacity of 2645.6 pounds at the rear Cat. I three-point hitch, confirms its capability in various tasks. Although specific engine cooling, cylinder orientation, valve configuration, and fuel type details are not provided, the available power output and weight hint at the tractor's reliability across a range of farming activities. The tractor's dimensions, specifying a length of 9.6 inches and a width of 60 inches, may suggest a typo in the provided length, warranting further investigation to provide accurate data. The Kubota L3540GST is thus suited for tasks requiring a dependable utility tractor with a good lift capacity and efficient power output.
Show more...

Key Specifications

Category: Utility

Power Output: 37

Transmission: GST

Operating Weight: 3296

Lift Capacity: 2645.6

Kubota L3540GST vs. Similar Tractors

Power Output
Average
Greater than 33% of similar tractors.
Hitch Capacity
Average
Greater than 46% of similar tractors.
Operating Weight
Below Average
Greater than 28% of similar tractors.

Technical Specifications

Engine

Manufacturer
Kubota
Model
E-TVCS
Cooling Type
-
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
-
Induction Type
Natural
Cylinders
3
Displacement (ci)
111.4
Bore (in)
-
Stroke (in)
-
Rated RPM
2700
Power Output (hp)
37

Transmission

Type
GST
Forward Gears
12
Reverse Gears
8
Total Gears
-

Dimensions

Length (in)
9.6
Width (in)
60
Height (in)
97.2
Operating Weight (lb)
3296

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
-
Drive Type
-
Steering Type
-
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
7.2
Rear Tire Diameter (in)
-
Rear Tire Width (in)
12.4
Front/Rear Rim Diameter (in)
-
Tire Type
-
Manufacture - End Year
-
Hitch Type
Cat. I
Hitch Category
Category 1
Hitch Position
Rear
Hitch Capacity (lb)
2645.6
Operator Station Type
-
Starter Type
-
Brake Type
-
Hydraulic System Type
-
