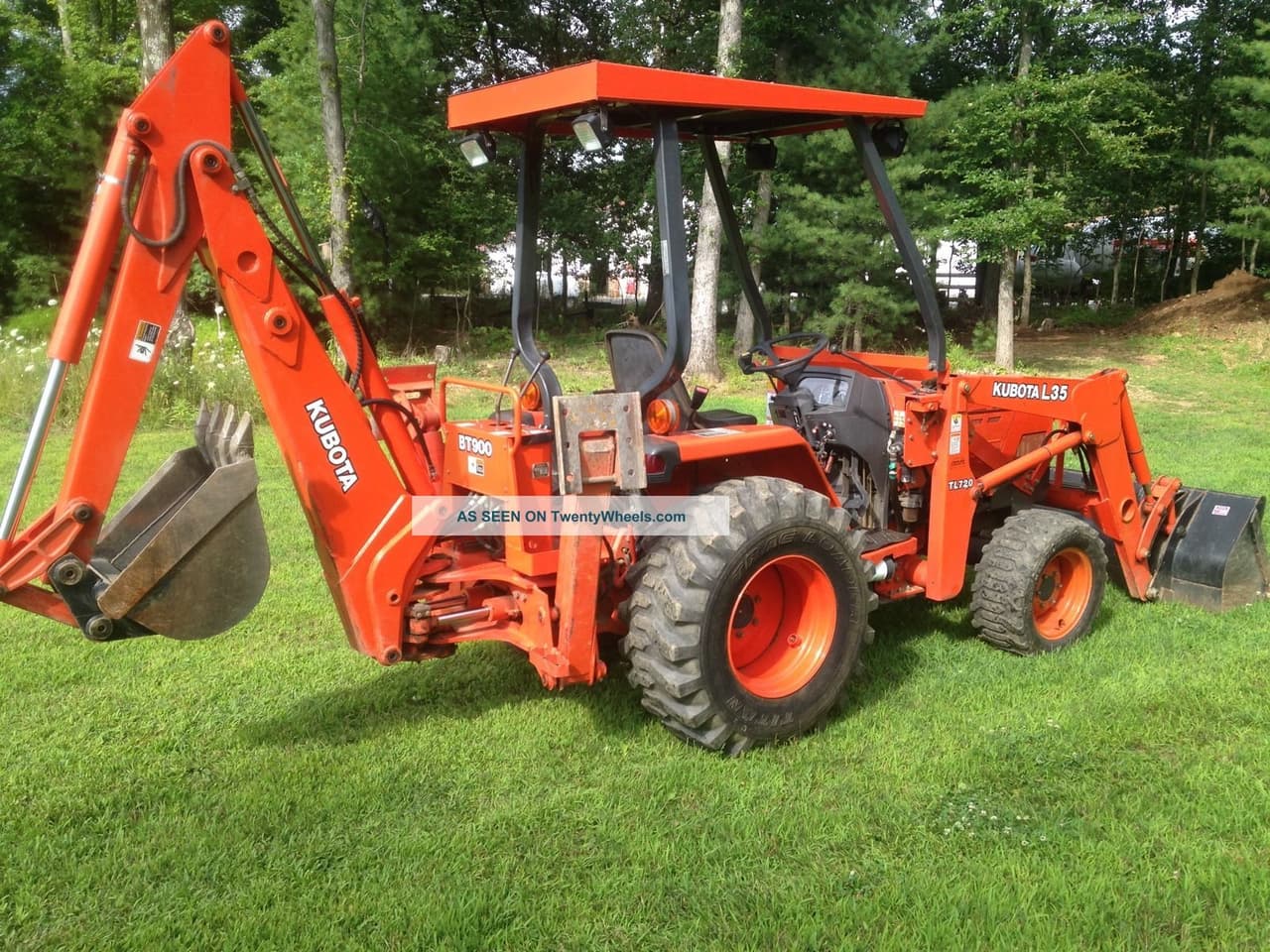

Kubota L35

Last Updated: June 2024

Overview

The Kubota L35 is a versatile backhoe loader tractor designed for various digging, trenching, and backfilling operations, predominantly aimed at the construction and landscaping industry. It boasts a Kubota D1703 three-cylinder diesel engine with a displacement of 1.6 liters, delivering a power output of 35 horsepower at 2700 rpm. This tractor features 4WD (4x4 MFWD 4WD) and glide shift transmission with dry disc clutch, enabling 8 forward and 8 reverse gears. The L35 was produced between 1999 and 2004, signifying its era of utility and reliability. The unit's capabilities are showcased by additional specs such as its front and rear industrial tire types, operating weight of nearly 6000 pounds, and a range of backhoe loader attachments, including a dig depth of up to 9 feet and a loading height of 7.9 feet. The open center hydraulic system assures efficient operations, and the unit is piloted via a four-post ROPS/FOPS canopy, providing both safety and comfort for the operator.
Show more...

Key Specifications

Category: Specialized, Backhoe Loader

Power Output: 35

Transmission: Glide Shift

Drive Type: 4WD

Operating Weight: 5996

Fuel Type: Diesel

Kubota L35 vs. Similar Tractors

Power Output
Below Average
Greater than 20% of similar tractors.
Operating Weight
Average
Greater than 63% of similar tractors.

Technical Specifications

Engine

Manufacturer
Kubota
Model
D1703
Cooling Type
Liquid
Cylinder Orientation
Inline
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Naturally Aspirated
Cylinders
3
Displacement (ci)
100.5
Bore (in)
3.43
Stroke (in)
3.64
Rated RPM
2700
Power Output (hp)
35

Transmission

Type
Glide Shift
Forward Gears
8
Reverse Gears
8
Total Gears
-

Dimensions

Length (in)
222.8
Width (in)
65.7
Height (in)
-
Operating Weight (lb)
5996

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
Power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Industrial
Manufacture - End Year
2004
Hitch Type
-
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
Four-post ROPS/FOPS canopy
Starter Type
Electric
Brake Type
-
Hydraulic System Type
Open Center
