Kubota L3430HSTC

Last Updated: June 2024

Overview

The Kubota L3430HSTC is a compact utility tractor that was manufactured by Kubota. It features a four-wheel drive (4WD) chassis and is powered by a liquid-cooled, three-cylinder Kubota engine model L3430 HSTC with electronic-controlled throttle valve scored indirect injection (E-TVCS) and a displacement of 100.5 cubic inches. This model produces a gross horsepower of 35.1 and a net horsepower of 33.6 at a rated RPM of 2700. The operating weight of the tractor is 3637.7 lbs. It offers a hydrostatic transmission with three forward and reverse gears, providing a maximum speed of 16.8 mph. Equipped with power steering and a rear-position three-point hitch of category I, the tractor has a hitch lift capacity of 2645.6 lbs. The tractor is designed for various tasks with a tight turning radius of 8.9 ft, which aids in maneuverability. Further enhancing its performance is the hydraulic system with a pump flow capacity of 13.3 gallons per minute.
Show more...

Key Specifications

Category: Utility

Power Output: 33.6 (Net Power), 35.1 (Gross Power)

Transmission: Hydrostatic

Drive Type: Four-wheel drive (4WD)

Operating Weight: 3637.7

Fuel Type: Diesel (indirect injection is commonly associated with diesel)

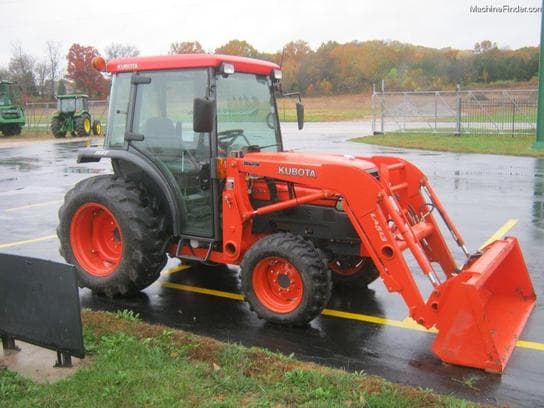

Image Gallery

Kubota L3430HSTC Tractor Kubota L3430HSTC Tractor Kubota L3430HSTC Tractor Kubota L3430HSTC Tractor Kubota L3430HSTC Tractor Kubota L3430HSTC Tractor Kubota L3430HSTC Tractor Kubota L3430HSTC Tractor Kubota L3430HSTC Tractor Kubota L3430HSTC Tractor Kubota L3430HSTC Tractor Kubota L3430HSTC Tractor

Kubota L3430HSTC vs. Similar Tractors

Hitch Capacity
Average
Greater than 46% of similar tractors.
Operating Weight
Average
Greater than 32% of similar tractors.

Technical Specifications

Engine

Manufacturer
Kubota
Model
L3430 HSTC
Cooling Type
Liquid (assumed based on industry standards, not explicitly provided)
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel (indirect injection is commonly associated with diesel)
Induction Type
Aspiration E-TVCS indirect injection
Cylinders
3
Displacement (ci)
100.5
Bore (in)
-
Stroke (in)
-
Rated RPM
2700
Power Output (hp)
33.6 (Net Power), 35.1 (Gross Power)

Transmission

Type
Hydrostatic
Forward Gears
3 range
Reverse Gears
3 range
Total Gears
-

Dimensions

Length (in)
115.2 (converted from 9.6 ft)
Width (in)
60 (converted from 5 ft)
Height (in)
87.6 (converted from 7.3 ft)
Operating Weight (lb)
3637.7

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 (MFWD)
Drive Type
Four-wheel drive (4WD)
Steering Type
Power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
Unknown (specifies size but not diameter)
Front Tire Width (in)
Unknown (specifies size but not width)
Rear Tire Diameter (in)
Unknown (specifies size but not diameter)
Rear Tire Width (in)
Unknown (specifies size but not width)
Front/Rear Rim Diameter (in)
-
Tire Type
Agricultural (assumed based on common use and size provided)
Manufacture - End Year
-
Hitch Type
Three-Point Hitch
Hitch Category
Cat. I
Hitch Position
Rear
Hitch Capacity (lb)
2645.6
Operator Station Type
Cab (assumed based on the "HSTC" in model name, suggesting hydrostatic transmission with a cab)
Starter Type
-
Brake Type
-
Hydraulic System Type
-
