Kubota L3410

Last Updated: June 2024

Overview

The Kubota L3410 is a compact utility tractor that was part of the Kubota Grand L10 series, produced from 1998 to 2002. The tractor is powered by a Kubota V1703-A 1.6 L three-cylinder diesel engine, with a liquid cooling system. It offers a variety of transmissions including mechanical shuttle (FST) with 8 forward and reverse gears, hydrostatic transmission with infinite (3-range) forward and reverse gears, glide shift (GST) with 8 forward and reverse gears, and an optional creeper gear for both the FST and GST models. With a hydrostatic power steering and wet disc brakes, the Kubota L3410 provides ease of operation and reliable braking. This model also includes an open operator station with two-post ROPS for safety. It has a fuel tank capacity of 9.2 US gallons and a total oil capacity of 5.8 US quarts. The tractor's dimensions are as follows: length at 110.8 inches, width at 56.7 inches, and height with ROPS at 84.3 inches. The L3410 is compatible with a range of attachments, enhancing its versatility for different tasks.

Key Specifications

Category: Utility

Power Output: 35.1

Transmission: Multiple Options: mechanical shuttle, hydrostatic, automatic fully synchronized

Drive Type: MFWD

Fuel Type: Diesel

Lift Capacity: 2,205 lbs at 24 in

Image Gallery

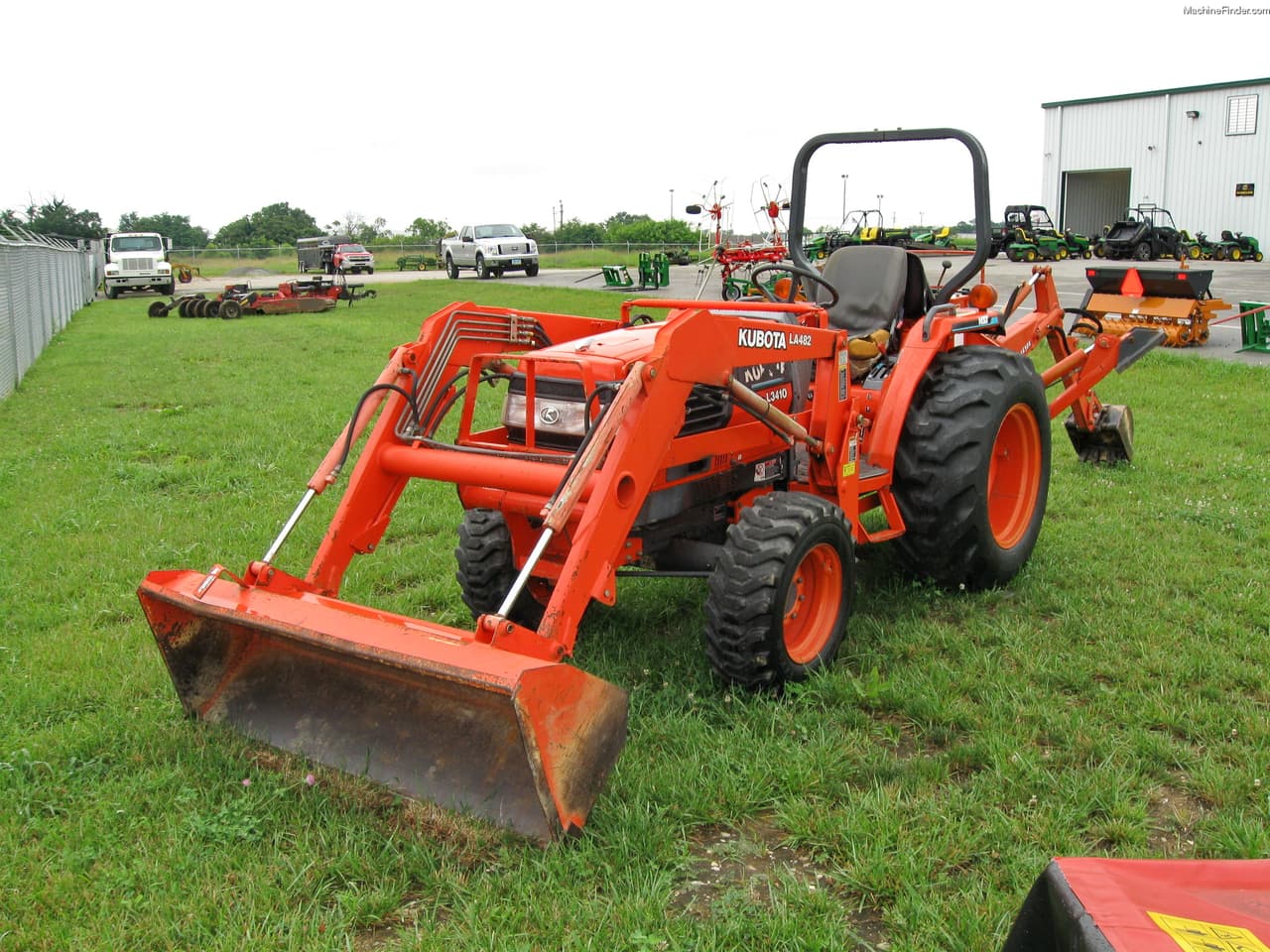

Kubota L3410 Tractor

Kubota L3410 vs. Similar Tractors

Power Output

Average

Greater than 32% of similar tractors.

Hitch Capacity

Poor

Greater than 4% of similar tractors.

Technical Specifications

Engine

Manufacturer: Kubota
Model: V1703-A
Cooling Type: Liquid
Cylinder Orientation: Inline
Valve Configuration: -
Fuel Type: Diesel
Induction Type: Natural aspirated
Cylinders: 3
Displacement (ci): 100.5
Bore (in): 3.43
Stroke (in): 3.64
Rated RPM: 2700
Power Output (hp): 35.1

Transmission

Type: Multiple Options: mechanical shuttle, hydrostatic, automatic fully synchronized
Forward Gears: -
Reverse Gears: -
Total Gears: -

Dimensions

Length (in): 110.8
Width (in): 56.7
Height (in): 84.3
Operating Weight (lb): -

Power Take-Off (PTO)

PTO Type: Multiple Options: Semi-independent (HST version), Independent
PTO Speed 1 (rpm): 540
PTO Speed 2 (rpm): 2,000
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x4 MFWD 4WD
Drive Type: MFWD
Steering Type: Hydrostatic power
Coolant Capacity (qts): 7.4
Front Tire Diameter (in): -
Front Tire Width (in): -
Rear Tire Diameter (in): -
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: -
Manufacture - End Year: 2002
Hitch Type: -
Hitch Category: I
Hitch Position: -
Hitch Capacity (lb): 2,205 lbs at 24 in
Operator Station Type: Open operator station with two-post ROPS
Starter Type: Electric
Brake Type: Wet disc
Hydraulic System Type: Open Center
