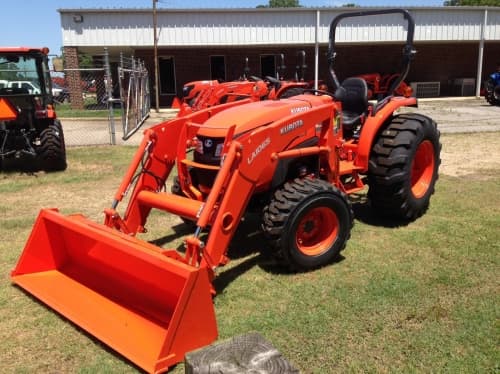

Kubota L3301-HST

Last Updated: June 2024

Overview

The Kubota L3301-HST is a utility tractor designed for a variety of tasks. With its 4WD chassis and power steering, it provides maneuverability and traction in diverse conditions. The tractor is powered by a Kubota D1803-CR-E4 engine, which is a vertical, water-cooled, 4-cycle diesel engine with direct injection. It has a gross power output of 33 hp at 2700 rpm and a displacement of 111.4 cubic inches. The L3301-HST features a hydrostatic transmission with 3 forward and reverse gears, allowing for convenient speed adjustment. It also has a Category 1 three-point hitch with a lift capacity of 1433.1 pounds, making it capable of handling various implements. The operating weight of the tractor is 2777.9 pounds, and it has mechanical wet disc brakes for effective stopping power. The tractor's height with ROPS/FOPS is 7.7 feet, and it has a total length of 107.9 inches and a width of 4.6 feet.
Show more...

Key Specifications

Category: Utility

Power Output: 33

Transmission: Hydrostatic

Drive Type: 4WD

Operating Weight: 2777.9

Fuel Type: Diesel

Kubota L3301-HST vs. Similar Tractors

Power Output
Below Average
Greater than 29% of similar tractors.
Hitch Capacity
Below Average
Greater than 27% of similar tractors.
Operating Weight
Below Average
Greater than 23% of similar tractors.

Technical Specifications

Engine

Manufacturer
Kubota
Model
D1803-CR-E4
Cooling Type
Water-Cooled
Cylinder Orientation
Vertical
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Direct Injection
Cylinders
3
Displacement (ci)
111.4
Bore (in)
3.5
Stroke (in)
4.1
Rated RPM
2700
Power Output (hp)
33

Transmission

Type
Hydrostatic
Forward Gears
3
Reverse Gears
3
Total Gears
-

Dimensions

Length (in)
107.9
Width (in)
55.2
Height (in)
91.2
Operating Weight (lb)
2777.9

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4WD
Drive Type
4WD
Steering Type
Power
Coolant Capacity (qts)
6.4
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
-
Manufacture - End Year
-
Hitch Type
Three-Point Hitch
Hitch Category
Category 1
Hitch Position
Rear
Hitch Capacity (lb)
1433.1
Operator Station Type
-
Starter Type
-
Brake Type
Mechanical, Wet Disc
Hydraulic System Type
-
