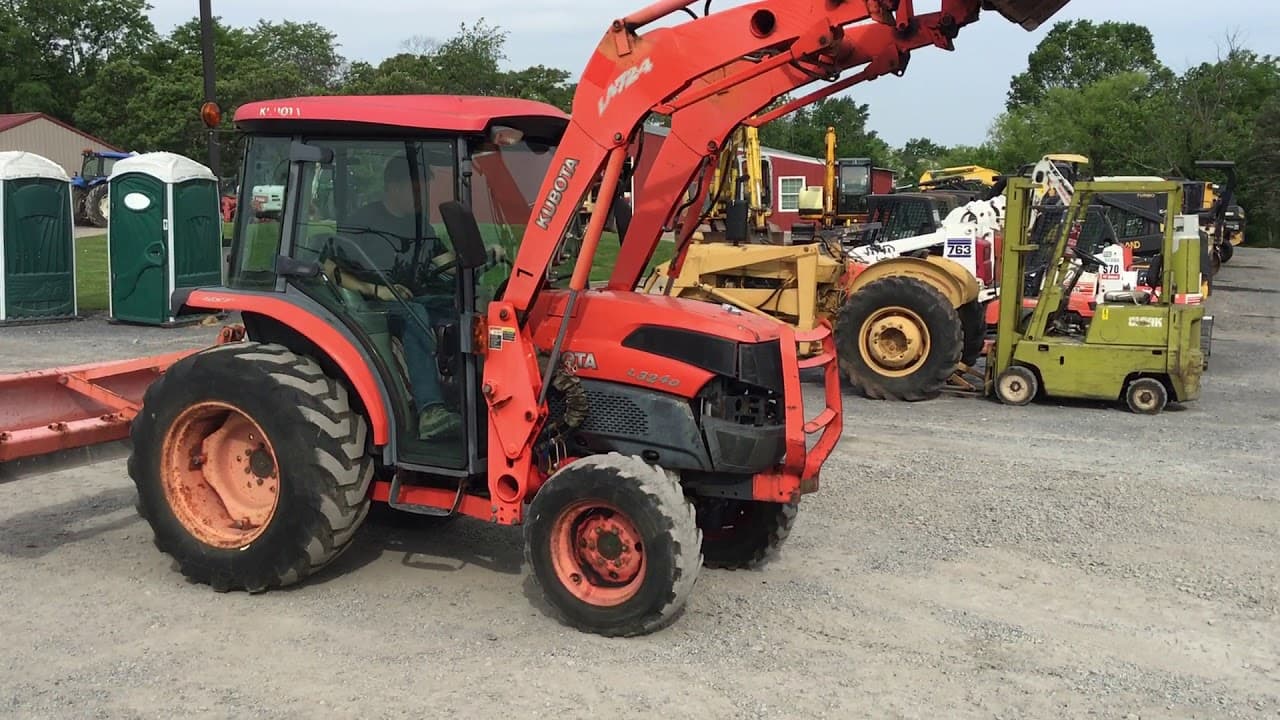

Kubota L3240DT

Last Updated: June 2024

Overview

The Kubota L3240DT is a utility tractor known for being a reliable and versatile machine suitable for a wide range of agricultural tasks. It features a 34 horsepower engine that produces up to 32 horsepower at the power take-off (PTO), enabling the operation of various implements. With an engine displacement of 100.5 cubic inches and a natural aspiration system, this tractor provides sufficient power to handle demanding jobs. Running at a rated RPM of 2700, the three-cylinder engine of the L3240DT also demonstrates efficiency in fuel consumption and operation. The FST transmission offers 8 forward and 8 reverse gears, a notable feature that provides versatility and control when maneuvering and performing different tasks. The Kubota L3240DT has a 3 point hitch type Cat. I with a lift capacity of 2645.6 lbs, which adds to its capability for towing and lifting various farm equipment. At 3251.9 lbs, the tractor's operating weight is ideal for stability during heavy-duty operations, while still maintaining a compact footprint.
Show more...

Key Specifications

Category: Utility

Power Output: 34

Transmission: FST

Operating Weight: 3251.9

Lift Capacity: 2645.6

Kubota L3240DT vs. Similar Tractors

Power Output
Below Average
Greater than 30% of similar tractors.
Hitch Capacity
Average
Greater than 46% of similar tractors.
Operating Weight
Below Average
Greater than 27% of similar tractors.

Technical Specifications

Engine

Manufacturer
Kubota
Model
E-TVCS
Cooling Type
-
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
-
Induction Type
Natural
Cylinders
3
Displacement (ci)
100.5
Bore (in)
-
Stroke (in)
-
Rated RPM
2700
Power Output (hp)
34

Transmission

Type
FST
Forward Gears
8
Reverse Gears
8
Total Gears
16

Dimensions

Length (in)
115.2 (inferred from 9.6 ft)
Width (in)
60 (inferred from 5 ft)
Height (in)
97.2 (inferred from 8.1 ft)
Operating Weight (lb)
3251.9

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
-
Drive Type
-
Steering Type
-
Coolant Capacity (qts)
-
Front Tire Diameter (in)
24 (inferred from tire size 7.2-16)
Front Tire Width (in)
7.2 (inferred from tire size 7.2-16)
Rear Tire Diameter (in)
48 (inferred from tire size 12.4-24)
Rear Tire Width (in)
12.4 (inferred from tire size 12.4-24)
Front/Rear Rim Diameter (in)
-
Tire Type
-
Manufacture - End Year
-
Hitch Type
Three-Point Hitch
Hitch Category
Category 1
Hitch Position
Rear
Hitch Capacity (lb)
2645.6
Operator Station Type
-
Starter Type
-
Brake Type
-
Hydraulic System Type
-
