Kubota L3130

Last Updated: June 2024

Overview

The Kubota L3130 is a versatile compact utility tractor with a selection of drive types: 2WD (L3130F) and 4WD. Manufactured by Kubota from 2003 to 2007, this model comes with a 1.5 L three-cylinder diesel engine, outputting 31 horsepower and is paired with one of three transmission systems: hydrostatic with infinite (3-range) forward and reverse gears, a fully synchronized shuttle (FST) with 8 forward and 8 reverse gears, or a glide shift (GST) with 12 forward and 8 reverse gears. The L3130 boasts hydrostatic power steering, wet disc brakes, and an open operator station with two-post ROPS. Its fuel tank capacity is 10.6 US gallons, and it accommodates a rear hitch system with Category I, lift capacity of 1,700 kg (3,749 lbs).

Key Specifications

Category: Utility

Power Output: 31

Transmission: Hydrostatic or Fully Synchronized (FST) or Glide Shift (GST)

Drive Type: 2WD / 4WD

Operating Weight: 3120 (2WD) / 3305 (4WD)

Fuel Type: Diesel

Image Gallery

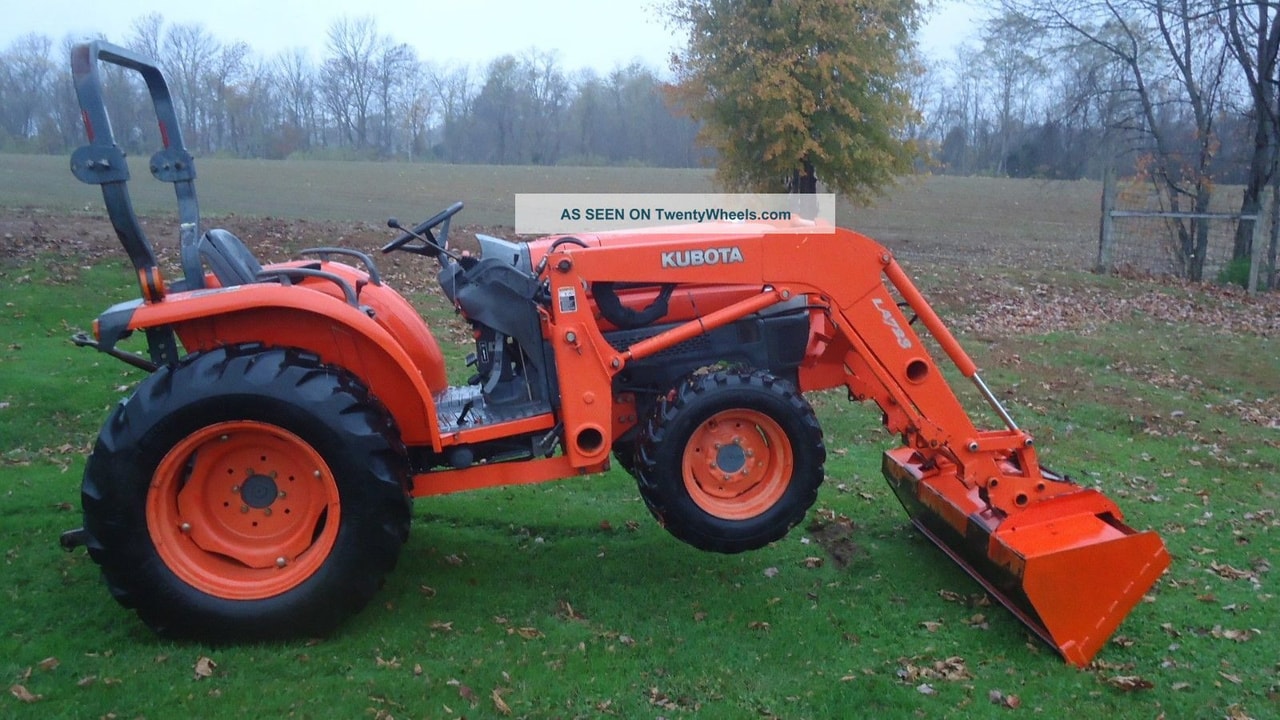

Kubota L3130 Tractor

Kubota L3130 vs. Similar Tractors

Power Output

Below Average

Greater than 26% of similar tractors.

Hitch Capacity

Average

Greater than 66% of similar tractors.

Operating Weight

Excellent

Greater than 95% of similar tractors.

Technical Specifications

Engine

Manufacturer: Kubota
Model: D1503
Cooling Type: Liquid-cooled
Cylinder Orientation: Inline
Valve Configuration: -
Fuel Type: Diesel
Induction Type: Natural Aspiration
Cylinders: 3
Displacement (ci): 91.5
Bore (in): 3.27
Stroke (in): 3.64
Rated RPM: 2700
Power Output (hp): 31

Transmission

Type: Hydrostatic or Fully Synchronized (FST) or Glide Shift (GST)
Forward Gears: 8 (FST) / 12 (GST) / Infinite (Hydrostatic)
Reverse Gears: 8 (FST and GST) / Infinite (Hydrostatic)
Total Gears: -

Dimensions

Length (in): 119.1 (2WD) / 114.8 (4WD)
Width (in): 56.3
Height (in): 88.8
Operating Weight (lb): 3120 (2WD) / 3305 (4WD)

Power Take-Off (PTO)

PTO Type: Live PTO
PTO Speed 1 (rpm): 540 / 750
PTO Speed 2 (rpm): 2000 (Mid PTO)
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x2 2WD or 4x4 MFWD 4WD
Drive Type: 2WD / 4WD
Steering Type: Hydrostatic power
Coolant Capacity (qts): 6.34
Front Tire Diameter (in): -
Front Tire Width (in): -
Rear Tire Diameter (in): -
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: Ag
Manufacture - End Year: 2007
Hitch Type: Three-Point Hitch
Hitch Category: I
Hitch Position: Rear
Hitch Capacity (lb): 3749
Operator Station Type: Open operator station with two-post ROPS
Starter Type: Electric
Brake Type: Wet disc type
Hydraulic System Type: Open center
