Kubota L2950

Last Updated: June 2024

Overview

The Kubota L2950 is a compact utility tractor that was a part of the L50 series and produced by Kubota between 1990 and 1993. It is available in either a 2WD or 4WD configuration and features a Kubota D1462-DI-AE three-cylinder liquid-cooled diesel engine with a displacement of 89.2 cubic inches, capable of delivering 31.8 horsepower at 2600 RPM. The L2950 comes with either a mechanical shuttle or Glide shift (GST) transmission, each offering 8 forward and reverse gears. It is equipped with a wet disc braking system and has an open operator station with a two-post ROPS. This model was designed with integral power steering for the 2WD version and hydrostatic power steering for the 4WD configuration, demonstrating Kubota's attention to operator comfort and machine maneuverability.

Key Specifications

Category: Utility

Power Output: 31.8

Transmission: Mechanical shuttle or Glide shift (GST)

Operating Weight: 2445 (2WD), 2670 (4WD)

Fuel Type: Diesel

Lift Capacity: 2646

Image Gallery

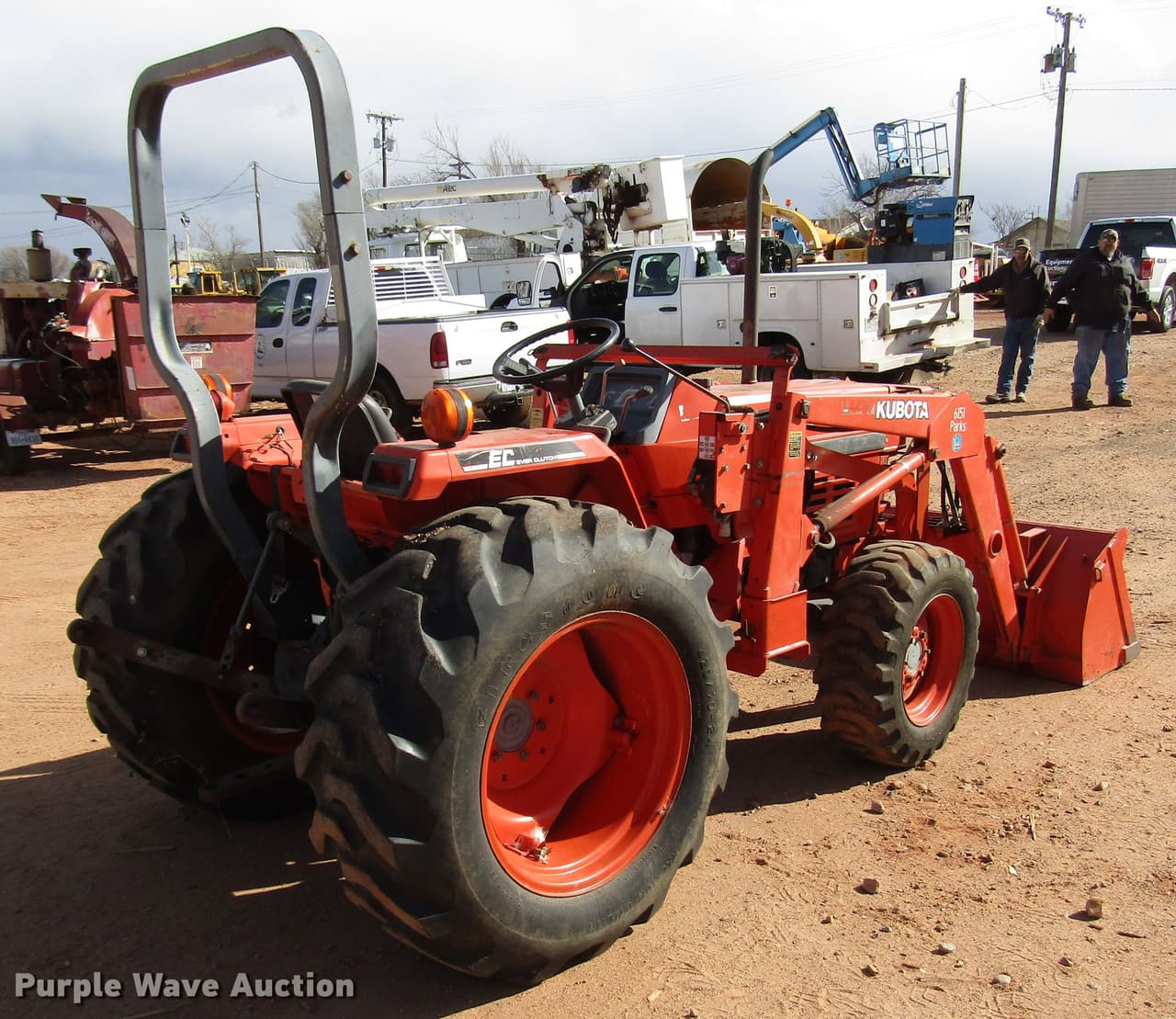

Kubota L2950 Tractor

Kubota L2950 vs. Similar Tractors

Power Output

Below Average

Greater than 26% of similar tractors.

Hitch Capacity

Average

Greater than 47% of similar tractors.

Operating Weight

Above Average

Greater than 71% of similar tractors.

Technical Specifications

Engine

Manufacturer: Kubota
Model: D1462-DI-AE
Cooling Type: Liquid-cooled
Cylinder Orientation: Inline
Valve Configuration: -
Fuel Type: Diesel
Induction Type: Natural aspiration
Cylinders: 3
Displacement (ci): 89.2
Bore (in): 3.43
Stroke (in): 3.23
Rated RPM: 2600
Power Output (hp): 31.8

Transmission

Type: Mechanical shuttle or Glide shift (GST)
Forward Gears: 8
Reverse Gears: 8
Total Gears: -

Dimensions

Length (in): 110
Width (in): 52.8
Height (in): 83.7
Operating Weight (lb): 2445 (2WD), 2670 (4WD)

Power Take-Off (PTO)

PTO Type: Optional Transmission or Live PTO
PTO Speed 1 (rpm): 540
PTO Speed 2 (rpm): 1000
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: Multiple options provided, specific configuration: "4x2 2WD or 4x4 MFWD 4WD"
Drive Type: -
Steering Type: Integral type power steering (2WD version) or Hydrostatic power steering (4WD version)
Coolant Capacity (qts): 4.9
Front Tire Diameter (in): -
Front Tire Width (in): -
Rear Tire Diameter (in): -
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: Multiple options provided, specific configuration: "Ag: 5.00-15 (2WD), 7-16 (4WD)"
Manufacture - End Year: 1993
Hitch Type: -
Hitch Category: Category I
Hitch Position: -
Hitch Capacity (lb): 2646
Operator Station Type: Open operator station with two-post ROPS
Starter Type: Electric
Brake Type: Wet disc
Hydraulic System Type: Open Center
