Kubota L285

Last Updated: June 2024

Overview

The Kubota L285 is a 2WD utility tractor from the L series, manufactured by Kubota between 1975 to 1981. It offers a solid combination of power and versatility for a variety of tasks. Powered by a 1.5 L four-cylinder diesel engine with 30 horsepower and liquid cooling, the L285 features an 8-speed gear transmission with 2 reverse speeds. The tractor sports a simple manual steering system complemented by effective wet disc brakes for safety and reliability. It is equipped with an open operator station with a two-post ROPS for added protection. The tractor's rear hitch is a category I. Additional specifications include a hydraulic system with an open center design and a chassis configured as 4x2 2WD, supporting the versatility typically needed by a utility tractor.

Key Specifications

Category: Utility

Power Output: 30

Transmission: Gear

Drive Type: 2WD

Operating Weight: 2230

Fuel Type: Diesel

Image Gallery

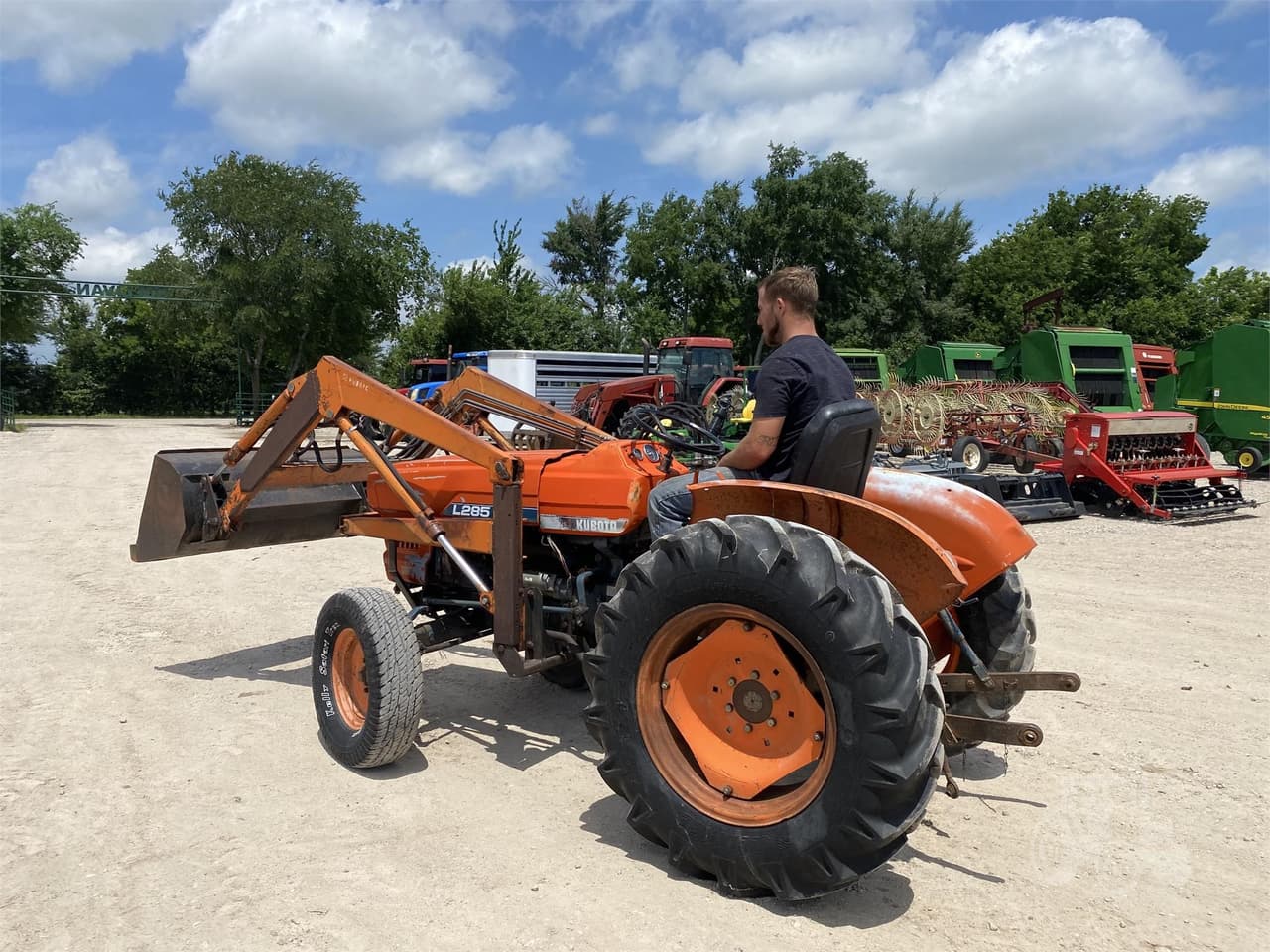

Kubota L285 Tractor

Kubota L285 vs. Similar Tractors

Power Output

Below Average

Greater than 25% of similar tractors.

Operating Weight

Below Average

Greater than 18% of similar tractors.

Technical Specifications

Engine

Manufacturer: Kubota
Model: V1501A
Cooling Type: Liquid-cooled
Cylinder Orientation: Inline
Valve Configuration: -
Fuel Type: Diesel
Induction Type: Natural
Cylinders: 4
Displacement (ci): 90.7
Bore (in): 2.99
Stroke (in): 3.23
Rated RPM: 2400
Power Output (hp): 30

Transmission

Type: Gear
Forward Gears: 8
Reverse Gears: 2
Total Gears: -

Dimensions

Length (in): 118.1
Width (in): 62.6
Height (in): 55.1
Operating Weight (lb): 2230

Power Take-Off (PTO)

PTO Type: -
PTO Speed 1 (rpm): 695
PTO Speed 2 (rpm): 1164
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x2 2WD
Drive Type: 2WD
Steering Type: Manual
Coolant Capacity (qts): 7.4
Front Tire Diameter (in): -
Front Tire Width (in): -
Rear Tire Diameter (in): -
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: Ag
Manufacture - End Year: 1981
Hitch Type: I
Hitch Category: I
Hitch Position: Rear
Hitch Capacity (lb): -
Operator Station Type: Open with two-post ROPS
Starter Type: Electric
Brake Type: Wet disc
Hydraulic System Type: Open center
