Kubota L2802

Last Updated: June 2024

Overview

The Kubota L2802 is a utility tractor from the L02 Series manufactured between 1978 and 1985. It is powered by a 27.6 horsepower Kubota V1501 diesel engine, with a displacement of 90.7 cubic inches, a bore of 3.00 inches, and a stroke of 3.23 inches. The engine features a liquid-cooling system and comes with an electric starter operating on 12 volts. This model includes a transmission system offering 16 forward gears and 4 reverse gears. Its precise chassis specifications, such as wheel configuration and drive type, along with full dimensions, weight, and tire types, are not detailed in the available data. Additional detailed specifications on hitch type, operator station type, PTO speeds, and braking or hydraulic systems are also not provided.
Show more...

Key Specifications

Category: Utility

Power Output: 27.6

Fuel Type: Diesel

Image Gallery

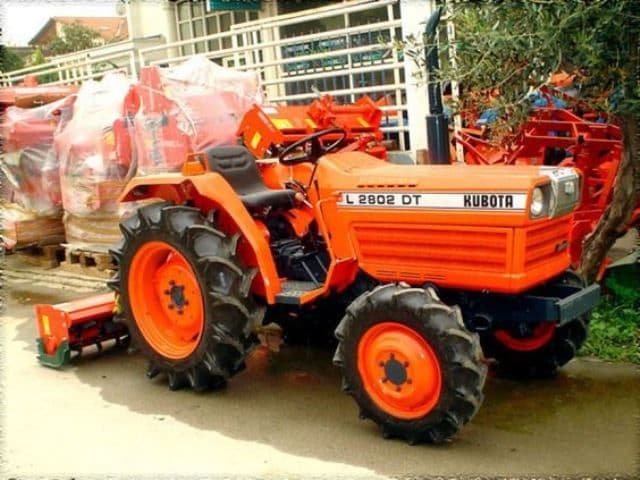

Kubota L2802 Tractor Kubota L2802 Tractor Kubota L2802 Tractor Kubota L2802 Tractor Kubota L2802 Tractor Kubota L2802 Tractor Kubota L2802 Tractor Kubota L2802 Tractor Kubota L2802 Tractor Kubota L2802 Tractor Kubota L2802 Tractor Kubota L2802 Tractor

Kubota L2802 vs. Similar Tractors

Power Output
Below Average
Greater than 22% of similar tractors.

Technical Specifications

Engine

Manufacturer
Kubota
Model
V1501
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Naturally aspirated
Cylinders
4
Displacement (ci)
90.7
Bore (in)
3
Stroke (in)
3.23
Rated RPM
-
Power Output (hp)
27.6

Transmission

Type
-
Forward Gears
16
Reverse Gears
4
Total Gears
-

Dimensions

Length (in)
-
Width (in)
-
Height (in)
-
Operating Weight (lb)
-

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
-
Drive Type
-
Steering Type
-
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
-
Manufacture - End Year
1985
Hitch Type
-
Hitch Category
Category 1
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Electric
Brake Type
-
Hydraulic System Type
-
