Kubota L275

Last Updated: July 2024

Overview

The Kubota L275 is a versatile compact utility tractor that was manufactured by Kubota between 1981 and 1985. It is available in both 2WD (L275) and 4WD (L275DT) configurations to cater to differing operational needs. Under the hood, the Kubota L275 features a robust Kubota D1302A three-cylinder diesel engine with a displacement of 79.3 cubic inches and a bore and stroke of 3.23 inches, offering a maximum power output of 27.5 horsepower. The operator can enjoy an open station with two-post ROPS, while maneuverability is supported by either manual or optional power steering. Shifting through tasks is accomplished through its gear-type transmission that has 8 forward and 7 reverse gears. The tractor demonstrates robustness with differential mechanical wet disc brakes, a live PTO with a speed of 540 rpm, and an open center hydraulic system. It provides practical usability in different terrains with a variety of tire options for agricultural or lawn/turf purposes. The specifications have been updated based on independent test results from the Nebraska Tractor Test Laboratory (1981) and deduced information where applicable.

Key Specifications

Category: Utility

Power Output: 27.5

Transmission: Gear

Drive Type: 2WD or Optional 4WD

Operating Weight: 2601

Fuel Type: Diesel

Image Gallery

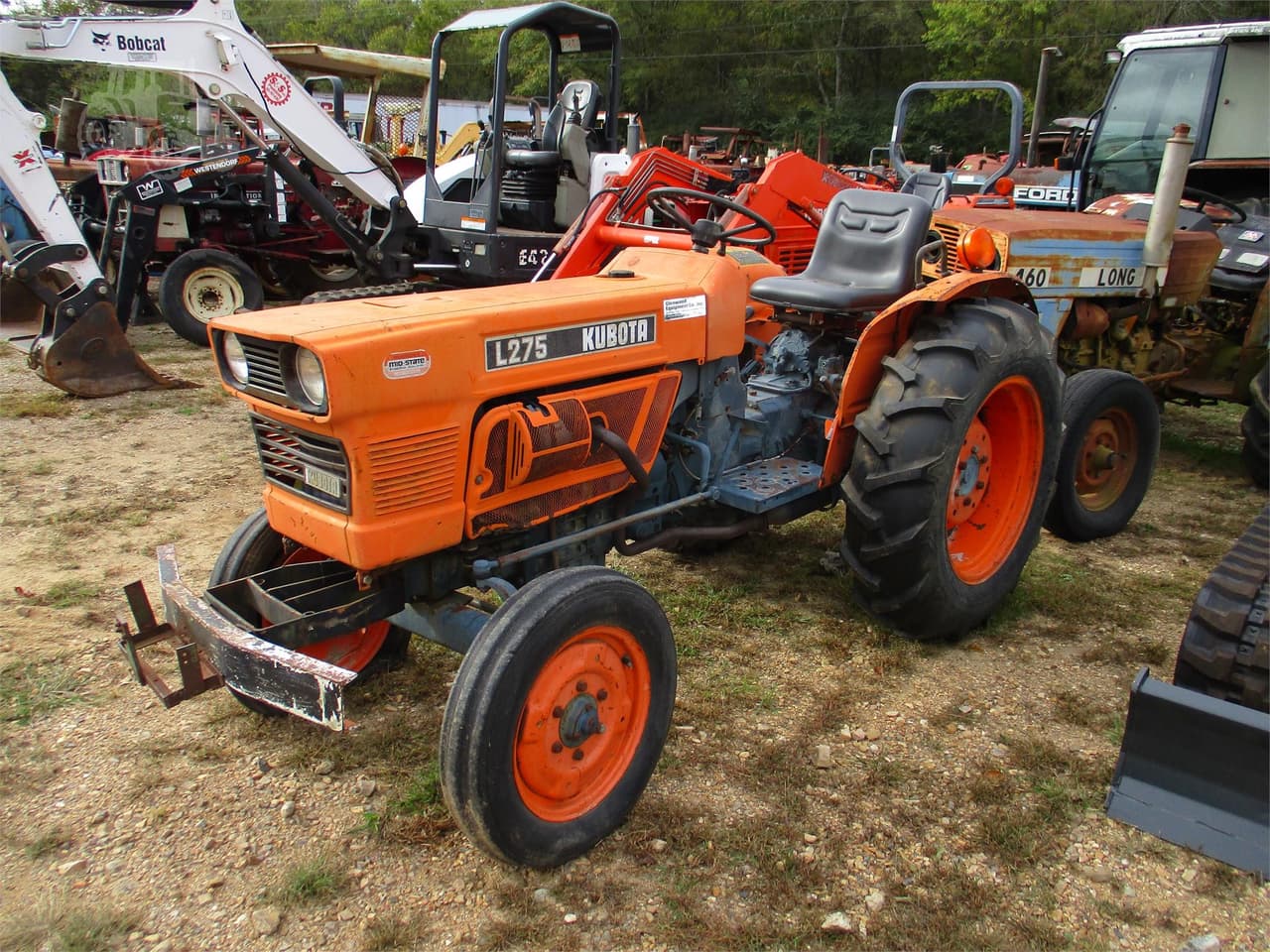

Kubota L275 Tractor

Kubota L275 vs. Similar Tractors

Power Output

Below Average

Greater than 21% of similar tractors.

Operating Weight

Below Average

Greater than 21% of similar tractors.

Technical Specifications

Engine

Manufacturer: Kubota
Model: D1302A
Cooling Type: Liquid-cooled
Cylinder Orientation: Inline
Valve Configuration: -
Fuel Type: Diesel
Induction Type: Natural aspirated
Cylinders: 3
Displacement (ci): 79.3
Bore (in): 3.23
Stroke (in): 3.23
Rated RPM: 2600
Power Output (hp): 27.5

Transmission

Type: Gear
Forward Gears: 8
Reverse Gears: 7
Total Gears: -

Dimensions

Length (in): 112.6
Width (in): 54.7
Height (in): 78
Operating Weight (lb): 2601

Power Take-Off (PTO)

PTO Type: Live
PTO Speed 1 (rpm): 540
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x2 2WD or 4x4 MFWD 4WD
Drive Type: 2WD or Optional 4WD
Steering Type: Manual or Optional Power Assist
Coolant Capacity (qts): 6.97
Front Tire Diameter (in): -
Front Tire Width (in): -
Rear Tire Diameter (in): -
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: Ag: 5.00-15 (2WD), 7.2-16 (4WD) / Lawn/turf: 23x8.50-12 (2WD), 27x8.50-16 (4WD)
Manufacture - End Year: 1985
Hitch Type: Three-Point Hitch
Hitch Category: Category I
Hitch Position: Rear
Hitch Capacity (lb): -
Operator Station Type: Open with two-post ROPS
Starter Type: Electric
Brake Type: Differential mechanical wet disc
Hydraulic System Type: Open center

Test Results

Nebraska Tractor Test Laboratory - Test Date: 1981

Maximum Power and Fuel Consumption

Maximum Power: [Include the maximum power measured for the Kubota L275]
Fuel Consumption at Maximum Power: [Include fuel consumption at maximum power in gallons per hour or liters per hour]

Drawbar Performance

Power at Rated Engine Speed: [Include power measured at rated engine speed]
Drawbar Pull: [Include drawbar pull in lbs or kN]
Speed: [Include speed in mph or km/h]

Torque and Engine Performance

Maximum Torque: [Include maximum torque measured]
Torque Rise: [Include percentage of torque rise]

Hydraulic Performance

Pump Delivery Rate: [Include pump delivery rate in GPM or l/min]
Hydraulic Power: [Include hydraulic power in HP or kW]

Overall Efficiency

Fuel Efficiency: [Include fuel efficiency in Hp.hr/gal or kW.h/l]
Fuel Consumption at Standard PTO Speed: [Include fuel consumption at PTO speed in gallons per hour or liters per hour]

NTTL.(1981).Test 1407: Kubota L275 4WD and L275 Diesel 8-Speed. Lincoln, NE:Nebraska Tractor Test Laboratory. Retrieved from https://digitalcommons.unl.edu/tractormuseumlit/1724
