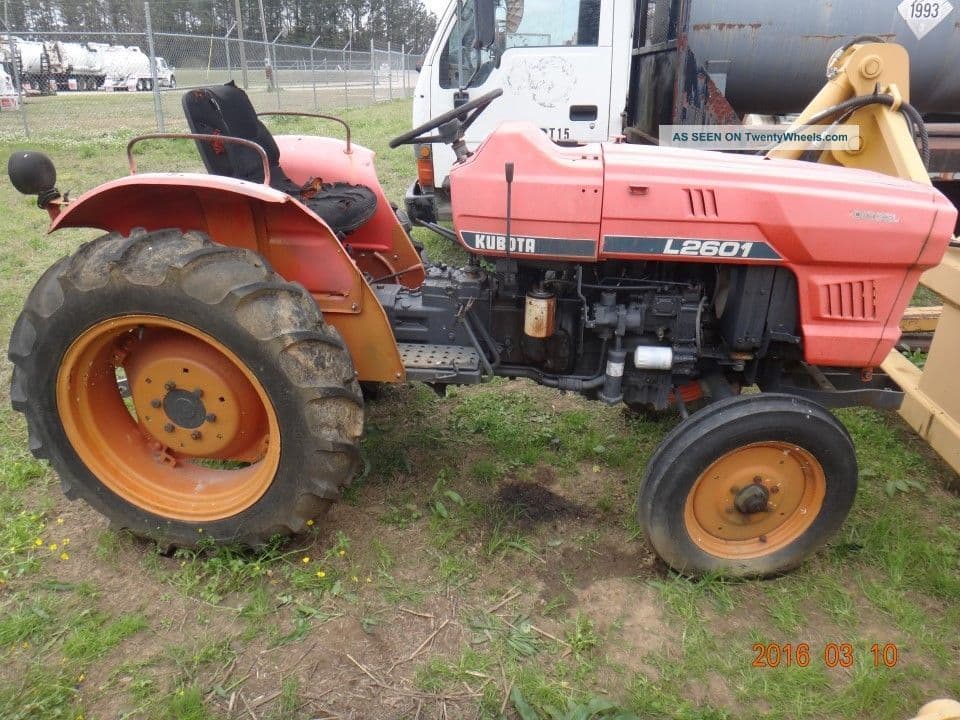

Kubota L2601

Last Updated: June 2024

Overview

The Kubota L2601 is a tractor designed with utility in mind. Equipped with a Kubota D1301 engine, it offers 25.6 horsepower with a displacement of 79.3 cubic inches and is liquid-cooled to efficiently manage heat. The engine's power is harnessed through a gear-driven transmission with 16 forward and 4 reverse gears, allowing for a variety of speeds and torques. With a rated RPM of 2800, the tractor has sufficient power for a range of tasks. It sports an electric starter system for quick ignition. The tractor's dimensions include a length of 112.2 inches, a width of 51.2 inches, and a height which varies from 55.3 inches at the steering wheel to 74.8 inches at the exhaust. It has a substantial operating weight of 2238 lbs and offers good ground clearance of 13.4 inches, suitable for various terrain types. The tractor operates on standard agricultural tires, with the front tire size being 5.00-15 and the rear tire size being 11.2/10-24. Details about the hitch system, hydraulics, manufacture start and end years, or additional features are not specified, potentially requiring further investigation by the owner.
Show more...

Key Specifications

Category: Utility

Power Output: 25.6

Transmission: Gear

Operating Weight: 2238

Fuel Type: Diesel

Kubota L2601 vs. Similar Tractors

Power Output
Below Average
Greater than 19% of similar tractors.
Operating Weight
Below Average
Greater than 18% of similar tractors.

Technical Specifications

Engine

Manufacturer
Kubota
Model
D1301
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Naturally Aspirated
Cylinders
3
Displacement (ci)
79.3
Bore (in)
3.23
Stroke (in)
3.23
Rated RPM
2800
Power Output (hp)
25.6

Transmission

Type
Gear
Forward Gears
16
Reverse Gears
4
Total Gears
-

Dimensions

Length (in)
112.2
Width (in)
51.2
Height (in)
Height at steering wheel: 55.3 | Height at exhaust: 74.8
Operating Weight (lb)
2238

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
-
Drive Type
-
Steering Type
-
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
AG
Manufacture - End Year
-
Hitch Type
-
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Electric
Brake Type
-
Hydraulic System Type
-
