Kubota L2600

Last Updated: June 2024

Overview

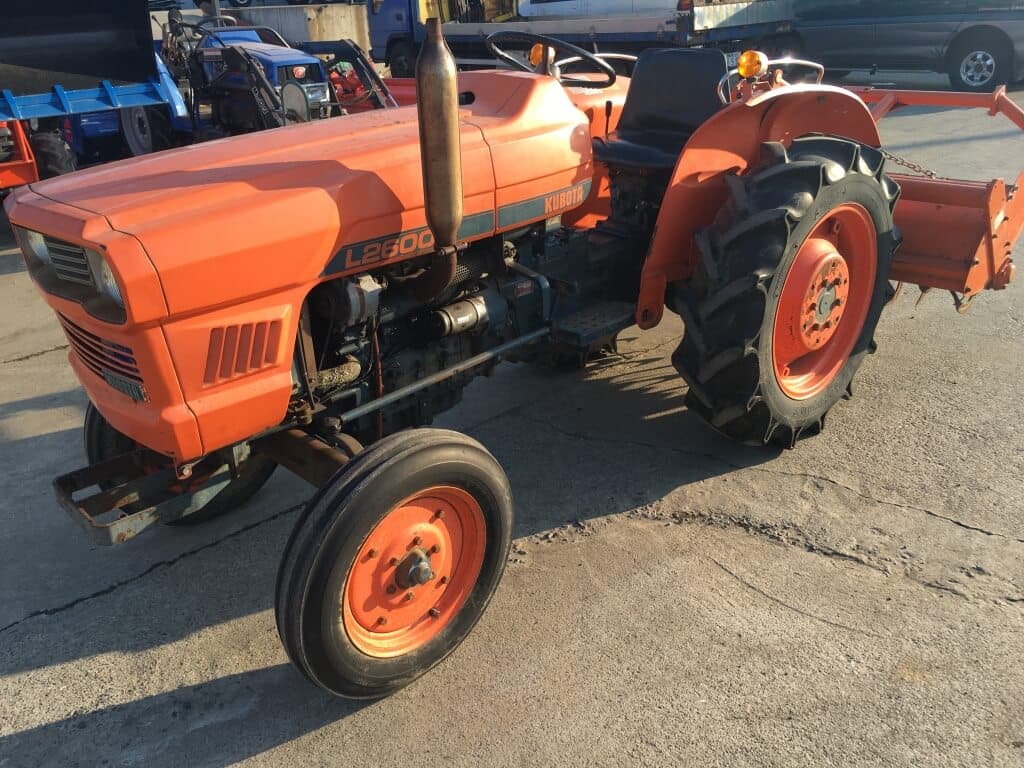

The Kubota L2600 is a compact utility tractor available in both 2WD (L2600F) and 4WD (L2600DT) variants. Produced by Kubota between the years 2000 and 2003, it's part of the Standard L series. Equipped with a Kubota D1403 three-cylinder diesel engine with a displacement of 85.1 cubic inches, it delivers a power output of 27 horsepower at 2800 RPM. The tractor features a manual (2WD model) or power (4WD model) steering and wet disc brakes. It provides an open operator station with a two-post ROPS (roll-over protection structure), which safeguards the driver in the event of a tractor roll-over. This tractor has a sliding gear transmission with 8 forward and 2 reverse gears, as well as a live PTO with a speed of 540 RPM. Additional specifications such as tire sizes and weights vary between the 2WD and 4WD configurations, but this model boasts a notable hitch lift capacity of 1,985 pounds with a rear three-point hitch (Category I). Finally, the Kubota L2600 has a liquid cooling system with a capacity of 6.3 quarts, ensuring efficient temperature management during prolonged operations.
Show more...

Key Specifications

Category: Utility

Power Output: 27

Transmission: Sliding Gear

Drive Type: 2WD; MFWD (4WD); Unknown

Operating Weight: 2116 (2WD)

Fuel Type: Diesel

Kubota L2600 vs. Similar Tractors

Power Output
Below Average
Greater than 21% of similar tractors.
Hitch Capacity
Average
Greater than 34% of similar tractors.
Operating Weight
Average
Greater than 70% of similar tractors.

Technical Specifications

Engine

Manufacturer
Kubota
Model
D1403
Cooling Type
Liquid-cooled
Cylinder Orientation
Inline
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Natural Aspirated
Cylinders
3
Displacement (ci)
85.1
Bore (in)
3.11
Stroke (in)
3.58
Rated RPM
2800
Power Output (hp)
27

Transmission

Type
Sliding Gear
Forward Gears
8
Reverse Gears
2
Total Gears
-

Dimensions

Length (in)
104.7 (2WD)
Width (in)
50.8
Height (in)
83.1
Operating Weight (lb)
2116 (2WD)

Power Take-Off (PTO)

PTO Type
Live
PTO Speed 1 (rpm)
540
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD or 4x4 MFWD 4WD
Drive Type
2WD; MFWD (4WD); Unknown
Steering Type
Manual; Power Steering; Unknown
Coolant Capacity (qts)
6.3
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
-
Manufacture - End Year
2003
Hitch Type
Three-Point Hitch
Hitch Category
I
Hitch Position
Rear
Hitch Capacity (lb)
1985 lbs
Operator Station Type
Open with two-post ROPS
Starter Type
Electric
Brake Type
Wet Disc
Hydraulic System Type
Open center
