Kubota L2501-HST

Last Updated: June 2024

Overview

The Kubota L2501-HST is a utility tractor equipped with a Kubota D1703-M-DI-E4 vertical, water-cooled, three-cylinder, direct injection diesel engine. It produces a gross power of 24.8 horsepower and a net power of 23.9 horsepower at a rated RPM of 2200, with a PTO power of 19 horsepower. The tractor has a displacement of 100.5 cubic inches with a bore and stroke of 3.5 and 3.7 inches respectively. The L2501-HST model features hydrostatic transmission with three forward and reverse gears, integral type power steering, and a Category 1 three-point hitch with a lift capacity of 1389 pounds at 24 inches. Operating weight is 2623.6 pounds, and it has wet disc brakes for reliable stopping power. The cooling system holds 1.6 gallons of coolant, and the fuel capacity is 10.1 gallons, suitable for extended working hours.
Show more...

Key Specifications

Category: Utility

Power Output: 24.8

Transmission: Hydrostatic

Drive Type: 4WD

Operating Weight: 2623.6

Fuel Type: Diesel

Image Gallery

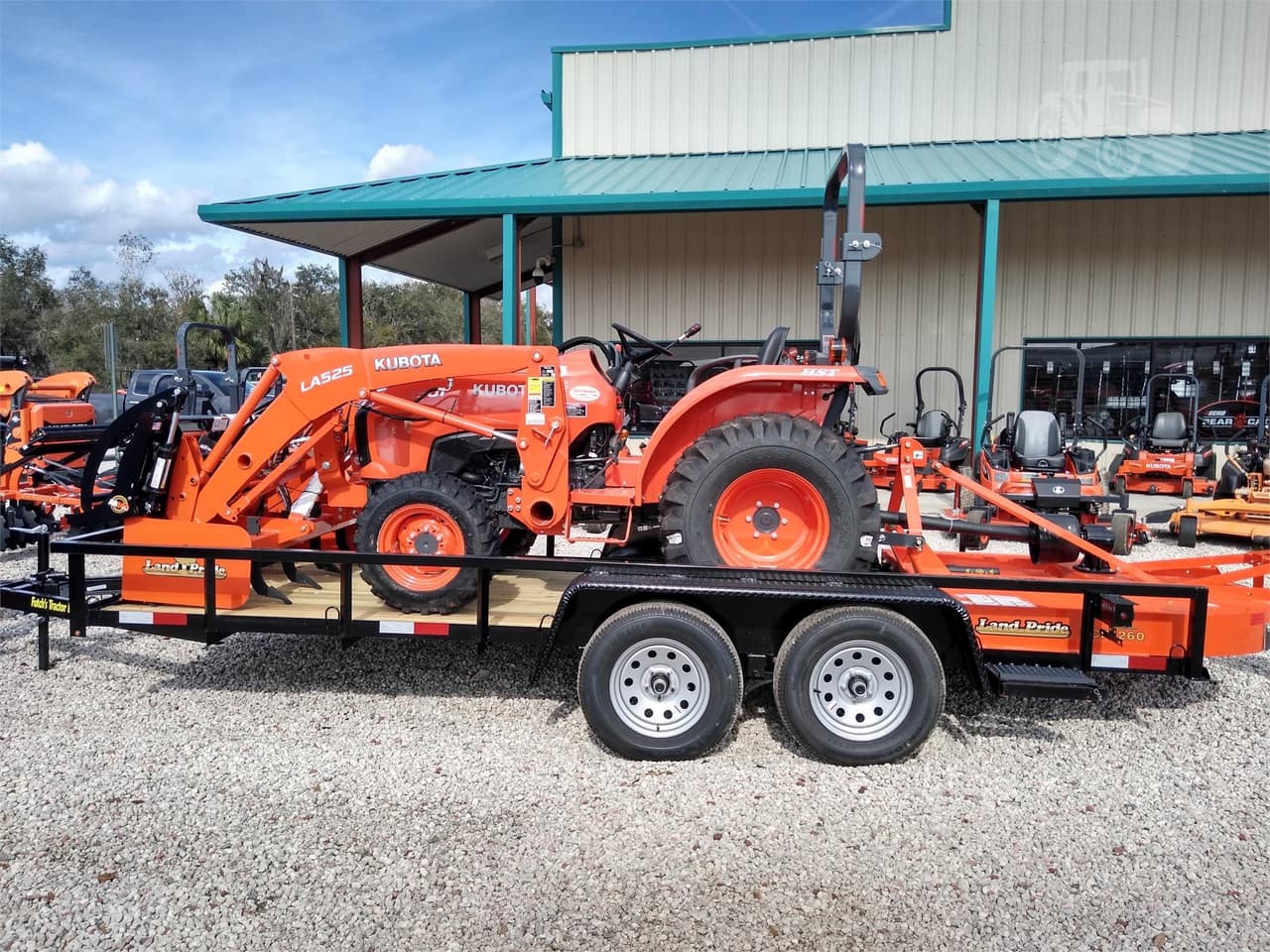

Kubota L2501-HST Tractor Kubota L2501-HST Tractor Kubota L2501-HST Tractor Kubota L2501-HST Tractor Kubota L2501-HST Tractor Kubota L2501-HST Tractor Kubota L2501-HST Tractor Kubota L2501-HST Tractor Kubota L2501-HST Tractor Kubota L2501-HST Tractor

Kubota L2501-HST vs. Similar Tractors

Power Output
Below Average
Greater than 17% of similar tractors.
Hitch Capacity
Below Average
Greater than 26% of similar tractors.
Operating Weight
Below Average
Greater than 21% of similar tractors.

Technical Specifications

Engine

Manufacturer
Kubota
Model
D1703-M-DI-E4
Cooling Type
Water-cooled
Cylinder Orientation
Vertical
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Direct injection
Cylinders
3
Displacement (ci)
100.5
Bore (in)
3.5
Stroke (in)
3.7
Rated RPM
2200
Power Output (hp)
24.8

Transmission

Type
Hydrostatic
Forward Gears
3
Reverse Gears
3
Total Gears
-

Dimensions

Length (in)
106.3
Width (in)
55.2
Height (in)
91.4
Operating Weight (lb)
2623.6

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
-
Drive Type
4WD
Steering Type
Power
Coolant Capacity (qts)
6.4
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
-
Manufacture - End Year
-
Hitch Type
Three-Point Hitch
Hitch Category
Category 1
Hitch Position
Rear
Hitch Capacity (lb)
1389
Operator Station Type
-
Starter Type
-
Brake Type
Wet disc
Hydraulic System Type
-
