Kubota L2501

Last Updated: June 2024

Overview

The Kubota L2501 compact utility tractor is a versatile and reliable machine designed for a range of tasks. It features a robust Kubota three-cylinder liquid-cooled diesel engine, D1703-M-DI-E4, with a displacement of 100.5 cubic inches. It delivers a gross horsepower of 24.8 and a net horsepower of 23.9, operating at a rated RPM of 2200. With either a 2WD or 4WD configuration, along with a choice between a gear type transmission with 8 forward and 4 reverse gears or a hydrostatic transmission with infinite ranges, the L2501 caters to a variety of needs. The tractor is equipped with a comfortable open operator station that includes a two-post folding ROPS for user safety. The mechanical wet disc brakes ensure reliable stopping power. The Kubota L2501 was introduced in 2014 and continues to be a solid choice for those requiring a compact but powerful tractor.

Key Specifications

Category: Utility

Power Output: 24.8 (gross) / 23.9 (net)

Transmission: Gear type with dry disc clutch / Hydrostatic

Drive Type: 2WD/4WD

Operating Weight: 2425 (2WD) / 2601 (4WD Gear) / 2623 (4WD Hydro)

Fuel Type: Diesel

Image Gallery

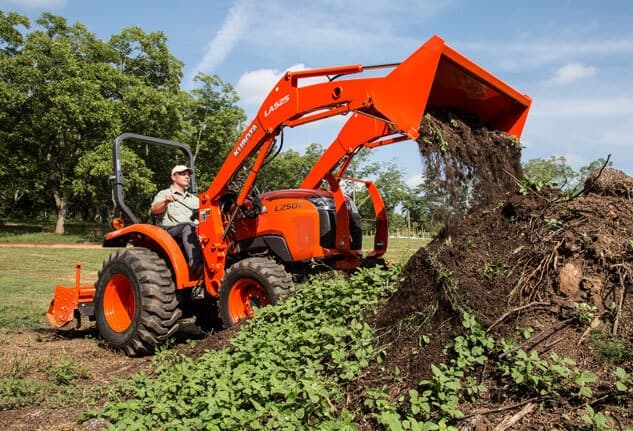

Kubota L2501 Tractor

Kubota L2501 vs. Similar Tractors

Hitch Capacity

Average

Greater than 33% of similar tractors.

Operating Weight

Excellent

Greater than 99% of similar tractors.

Technical Specifications

Engine

Manufacturer: Kubota
Model: D1703-M-DI-E4
Cooling Type: Liquid-cooled
Cylinder Orientation: Inline
Valve Configuration: -
Fuel Type: Diesel
Induction Type: Natural
Cylinders: 3
Displacement (ci): 100.5
Bore (in): 3.43
Stroke (in): 3.64
Rated RPM: 2200
Power Output (hp): 24.8 (gross) / 23.9 (net)

Transmission

Type: Gear type with dry disc clutch / Hydrostatic
Forward Gears: 8 (Gear type) / Infinite (Hydrostatic)
Reverse Gears: 4 (Gear type) / Infinite (Hydrostatic)
Total Gears: -

Dimensions

Length (in): 110.6 (2WD) / 106.3 (4WD)
Width (in): 55.1
Height (in): 91.7
Operating Weight (lb): 2425 (2WD) / 2601 (4WD Gear) / 2623 (4WD Hydro)

Power Take-Off (PTO)

PTO Type: Gear: Transmission driven with overrunning / HST: Live-continuous running
PTO Speed 1 (rpm): 540
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x2 2WD or 4x4 MFWD 4WD
Drive Type: 2WD/4WD
Steering Type: Power
Coolant Capacity (qts): -
Front Tire Diameter (in): -
Front Tire Width (in): -
Rear Tire Diameter (in): -
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: Ag / Industrial (Optional)
Manufacture - End Year: -
Hitch Type: -
Hitch Category: I
Hitch Position: Rear
Hitch Capacity (lb): 1920 lbs
Operator Station Type: Open with Two-post folding ROPS
Starter Type: Electric
Brake Type: Mechanical wet disc
Hydraulic System Type: Open center
