Kubota L2402

Last Updated: June 2024

Overview

The Kubota L2402 is a utility tractor that was manufactured by Kubota from 1978 to 1985. This model comes in both 2WD and 4WD variants, providing versatility for different farming needs. With a robust Kubota D1402 diesel engine, it boasts an engine displacement of 85.1 cubic inches, producing 23.7 horsepower at a rated RPM of 2600. Equipped with liquid cooling and a natural aspiration system, it ensures reliable performance and longevity. The transmission offers 16 forward and 4 reverse gears, catering to various working conditions. Although the L2402 is a dated model, it remains well-regarded among tractor enthusiasts and farmers for its simplicity and durability, making it a valued workhorse in the small farm segment.

Key Specifications

Category: Utility

Power Output: 23.7

Drive Type: 2WD/4WD (Model has both variants)

Operating Weight: 1962 (2WD) / 2205 (4WD)

Fuel Type: Diesel

Image Gallery

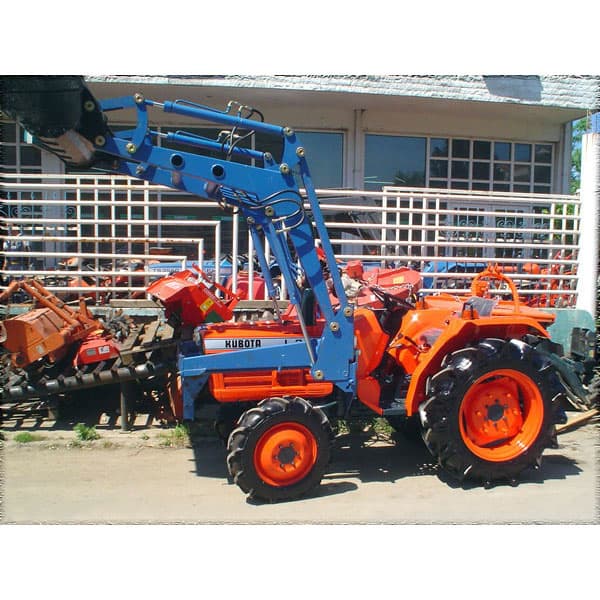

Kubota L2402 Tractor

Kubota L2402 vs. Similar Tractors

Power Output

Below Average

Greater than 15% of similar tractors.

Operating Weight

Excellent

Greater than 94% of similar tractors.

Technical Specifications

Engine

Manufacturer: Kubota
Model: D1402
Cooling Type: Liquid-cooled
Cylinder Orientation: -
Valve Configuration: -
Fuel Type: Diesel
Induction Type: Naturally aspirated
Cylinders: 3
Displacement (ci): 85.1
Bore (in): 3.3
Stroke (in): 3.2
Rated RPM: 2600
Power Output (hp): 23.7

Transmission

Type: -
Forward Gears: 16
Reverse Gears: 4
Total Gears: -

Dimensions

Length (in): 105.9
Width (in): 52
Height (in): 76.8
Operating Weight (lb): 1962 (2WD) / 2205 (4WD)

Power Take-Off (PTO)

PTO Type: -
PTO Speed 1 (rpm): -
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: -
Drive Type: 2WD/4WD (Model has both variants)
Steering Type: -
Coolant Capacity (qts): -
Front Tire Diameter (in): -
Front Tire Width (in): -
Rear Tire Diameter (in): -
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: Agricultural
Manufacture - End Year: 1985
Hitch Type: JIS1
Hitch Category: -
Hitch Position: -
Hitch Capacity (lb): -
Operator Station Type: -
Starter Type: Electric
Brake Type: -
Hydraulic System Type: -
