Kubota L2350

Last Updated: June 2024

Overview

The Kubota L2350 is a versatile compact utility tractor which was available in both 2WD and 4WD models, designated as the L2350F and L2350DT respectively. Produced between 1991 and 1998, this tractor is equipped with a Kubota D1102 diesel engine with a displacement of 68 cubic inches. It also offers a gear-driven transmission with a dry disc clutch and 8 forward and 2 reverse gears. The tractor came with a standard open operator station with a two-post ROPS and had manual or optional power steering. The Kubota L2350 was designed with a three-point hitch with a lift capacity of 1,874 pounds and featured a live rear PTO with a speed of 540 rpm. Its hydraulic system was of the open center type. The tractor could be fitted with a variety of wheel and tire configurations, conducive to different types of agricultural work, and it had a gross power output of 25 horsepower.

Key Specifications

Category: Utility

Power Output: 25

Transmission: Constant mesh with dry disc clutch

Operating Weight: 1962 (2WD), 2205 (4WD)

Fuel Type: Diesel

Lift Capacity: 1874

Image Gallery

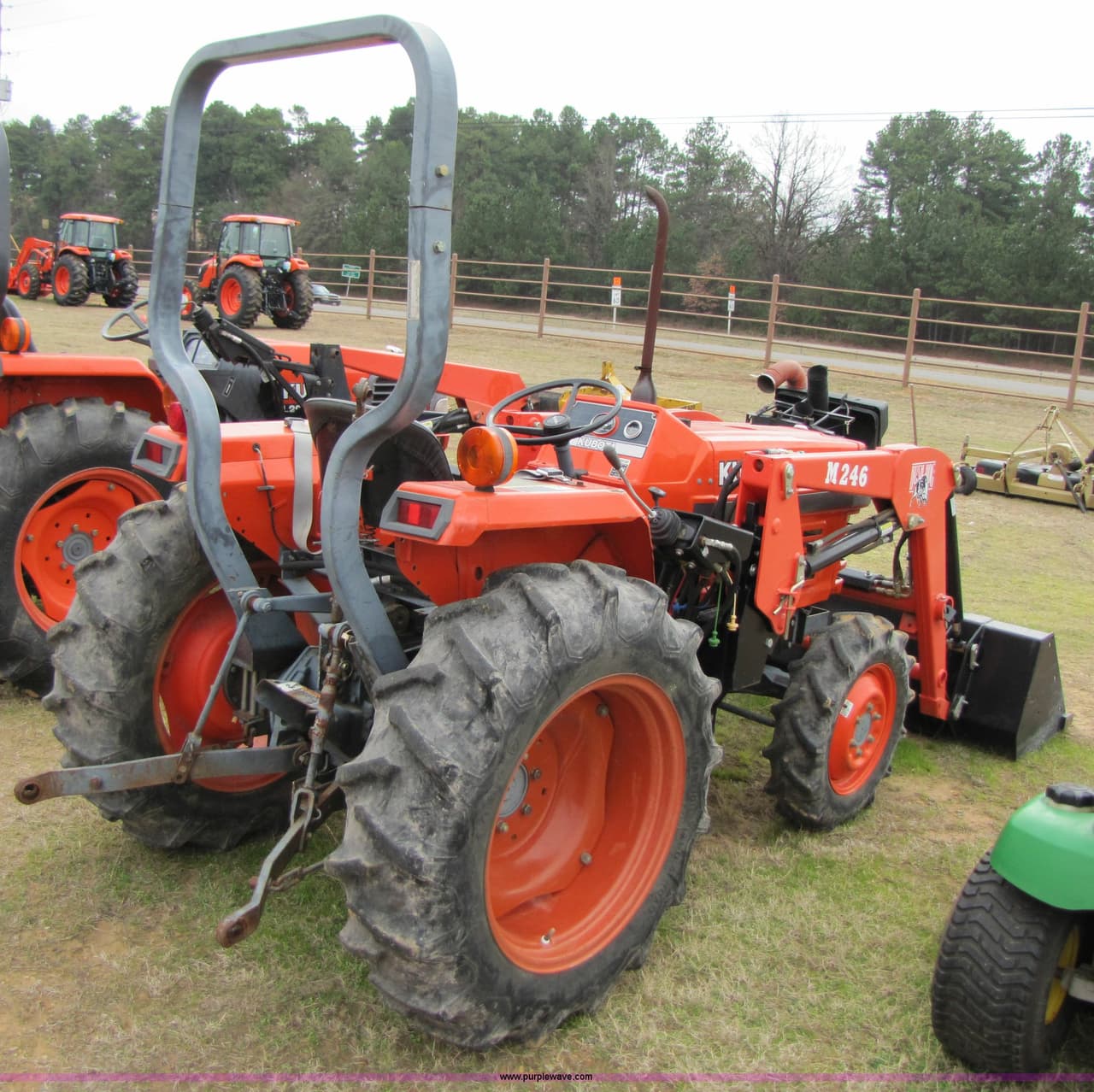

Kubota L2350 Tractor

Kubota L2350 vs. Similar Tractors

Power Output

Below Average

Greater than 18% of similar tractors.

Hitch Capacity

Average

Greater than 32% of similar tractors.

Operating Weight

Average

Greater than 69% of similar tractors.

Technical Specifications

Engine

Manufacturer: Kubota
Model: D1102
Cooling Type: Liquid-cooled
Cylinder Orientation: Inline
Valve Configuration: -
Fuel Type: Diesel
Induction Type: Naturally aspirated
Cylinders: 3
Displacement (ci): 68
Bore (in): 2.99
Stroke (in): 3.23
Rated RPM: 2500
Power Output (hp): 25

Transmission

Type: Constant mesh with dry disc clutch
Forward Gears: 8
Reverse Gears: 2
Total Gears: -

Dimensions

Length (in): 103.9
Width (in): 50
Height (in): 83.1
Operating Weight (lb): 1962 (2WD), 2205 (4WD)

Power Take-Off (PTO)

PTO Type: Live
PTO Speed 1 (rpm): 540
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x2 2WD or 4x4 MFWD 4WD
Drive Type: -
Steering Type: Manual or power (option)
Coolant Capacity (qts): 6.34
Front Tire Diameter (in): -
Front Tire Width (in): -
Rear Tire Diameter (in): -
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: Ag
Manufacture - End Year: 1998
Hitch Type: Three-point hitch
Hitch Category: I
Hitch Position: Rear
Hitch Capacity (lb): 1874
Operator Station Type: Open with two-post ROPS
Starter Type: Electric
Brake Type: Wet disc
Hydraulic System Type: Open center
