Kubota L235

Last Updated: June 2024

Overview

The Kubota L235 is a compact utility tractor that was manufactured by Kubota from 1981 to 1985. This model is available as a 2WD, characterized by its 4x2 chassis and manual steering. It is powered by a 23.5 hp Kubota D1102A engine with a liquid-cooled, three-cylinder diesel setup. With an 8-speed gear transmission and the option of continuous or live PTO, it serves diverse farming needs. The tractor has a wet disc brake system and an open operator station that optionally supports two-post ROPS. Dimensions are 112.6 inches in length, 49.4 inches in width, and 76.8 inches in height, with an operating weight of 2435 pounds for function and stability.

Key Specifications

Category: Utility

Power Output: 23.5

Transmission: Gear

Drive Type: 2WD

Operating Weight: 2435

Fuel Type: Diesel

Image Gallery

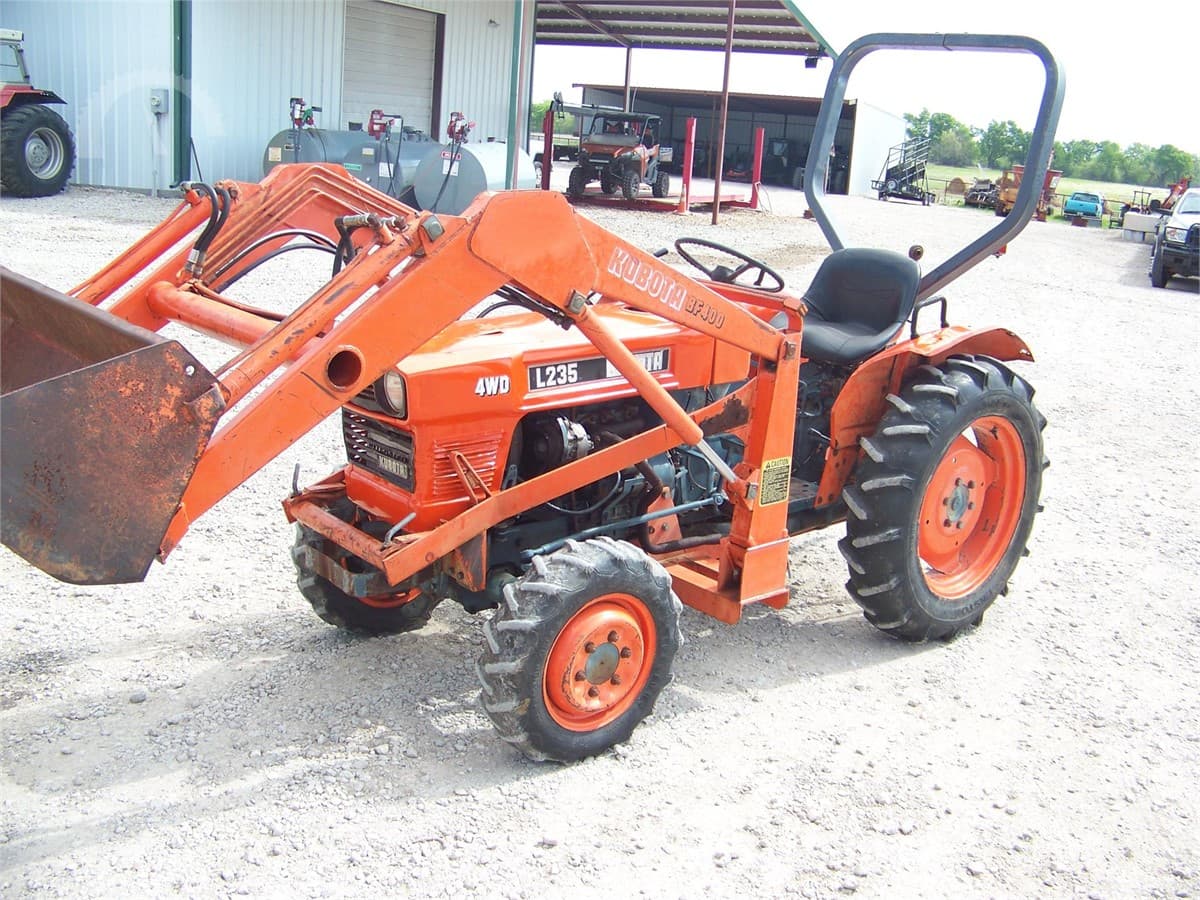

Kubota L235 Tractor

Kubota L235 vs. Similar Tractors

Power Output

Below Average

Greater than 14% of similar tractors.

Operating Weight

Below Average

Greater than 19% of similar tractors.

Technical Specifications

Engine

Manufacturer: Kubota
Model: D1102A
Cooling Type: Liquid-cooled
Cylinder Orientation: Inline
Valve Configuration: -
Fuel Type: Diesel
Induction Type: Natural aspirated
Cylinders: 3
Displacement (ci): 68
Bore (in): 3
Stroke (in): 3.2
Rated RPM: 2600
Power Output (hp): 23.5

Transmission

Type: Gear
Forward Gears: 8
Reverse Gears: 7
Total Gears: -

Dimensions

Length (in): 112.6
Width (in): 49.4
Height (in): 76.8
Operating Weight (lb): 2435

Power Take-Off (PTO)

PTO Type: Continuous or live (optional)
PTO Speed 1 (rpm): 540
PTO Speed 2 (rpm): 828
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x2 2WD
Drive Type: 2WD
Steering Type: Manual
Coolant Capacity (qts): 6.97
Front Tire Diameter (in): -
Front Tire Width (in): -
Rear Tire Diameter (in): -
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: -
Manufacture - End Year: 1985
Hitch Type: -
Hitch Category: I
Hitch Position: -
Hitch Capacity (lb): -
Operator Station Type: Open operator station, two-post ROPS (option)
Starter Type: Electric
Brake Type: Wet disc
Hydraulic System Type: Open center
