Kubota L200

Last Updated: June 2024

Overview

The Kubota L200 is a compact utility tractor produced by Kubota between the years 1972 and 1973. This model features a two-wheel-drive chassis with manual steering and a gear-type transmission with a total of 8 gears (6 forward and 2 reverse). It is powered by Kubota's Z1100 two-cylinder, liquid-cooled, diesel engine, offering 21 horsepower at an operating engine speed of 2700 RPM. With a 4.00-15 front tire size and a 9.5-24 rear tire size, the L200 was designed to offer a balance between functionality and compact dimensions, suited for a variety of tasks in a smaller farm setting. The tractor is fitted with an electric starter system, utilitarian open operator station, and differential mechanical expanding shoe brakes.

Key Specifications

Category: Utility

Power Output: 21

Transmission: Gear

Drive Type: 2WD

Operating Weight: 2000

Fuel Type: Diesel

Image Gallery

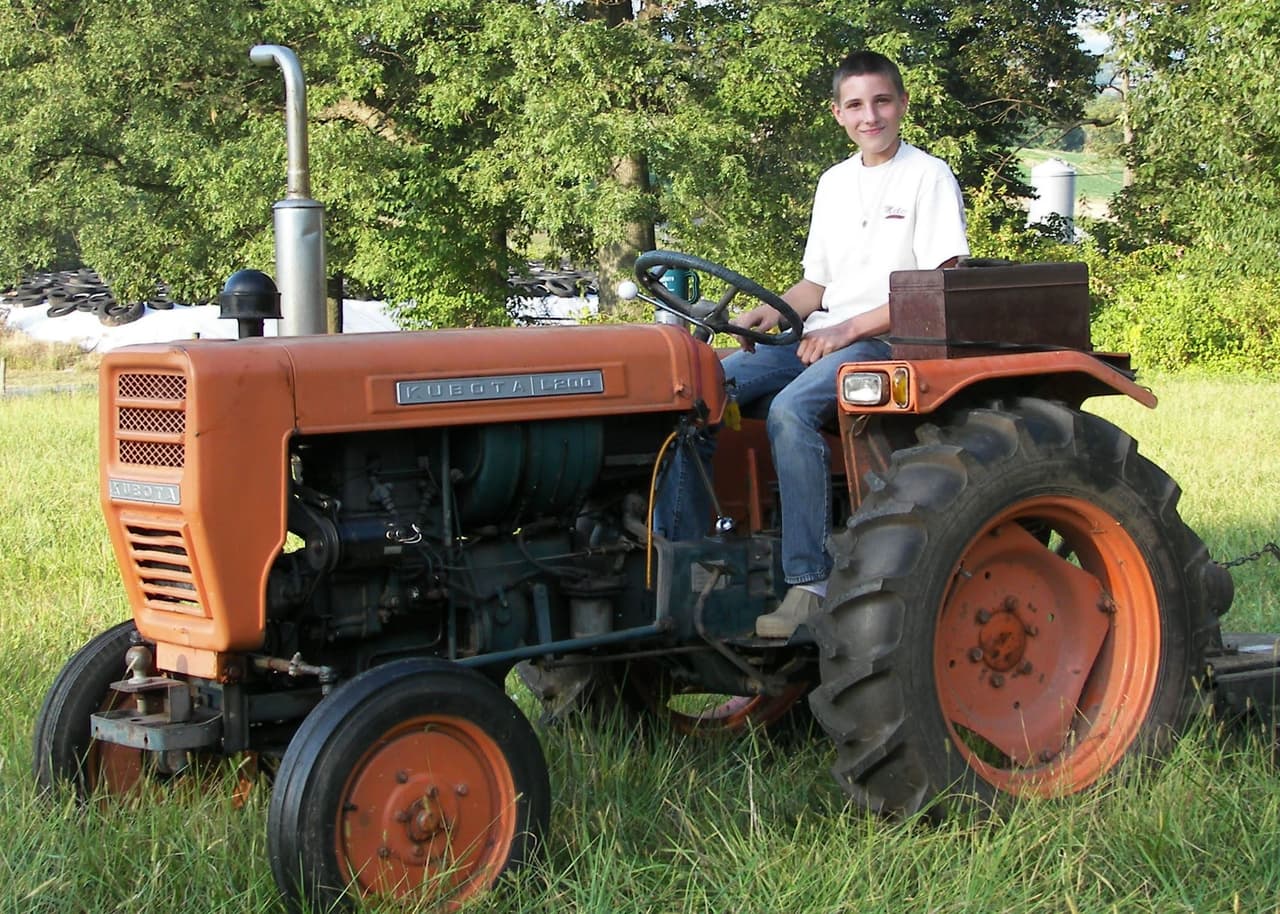

Kubota L200 Tractor

Kubota L200 vs. Similar Tractors

Power Output

Below Average

Greater than 11% of similar tractors.

Operating Weight

Below Average

Greater than 16% of similar tractors.

Technical Specifications

Engine

Manufacturer: Kubota
Model: Z1100
Cooling Type: Liquid-cooled
Cylinder Orientation: Inline
Valve Configuration: -
Fuel Type: Diesel
Induction Type: Natural aspirated
Cylinders: 2
Displacement (ci): 65.3
Bore (in): 3.46
Stroke (in): 3.46
Rated RPM: 2700
Power Output (hp): 21

Transmission

Type: Gear
Forward Gears: 6
Reverse Gears: 2
Total Gears: -

Dimensions

Length (in): 76.5
Width (in): 44.1
Height (in): 74.5
Operating Weight (lb): 2000

Power Take-Off (PTO)

PTO Type: -
PTO Speed 1 (rpm): -
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4×2 2WD
Drive Type: 2WD
Steering Type: Manual
Coolant Capacity (qts): 7.9
Front Tire Diameter (in): 15
Front Tire Width (in): 4
Rear Tire Diameter (in): 24
Rear Tire Width (in): 9.5
Front/Rear Rim Diameter (in): -
Tire Type: Ag
Manufacture - End Year: 1973
Hitch Type: -
Hitch Category: Category 1
Hitch Position: Rear
Hitch Capacity (lb): -
Operator Station Type: Open operator station
Starter Type: Electric
Brake Type: Differential mechanical expanding shoe
Hydraulic System Type: Open center
