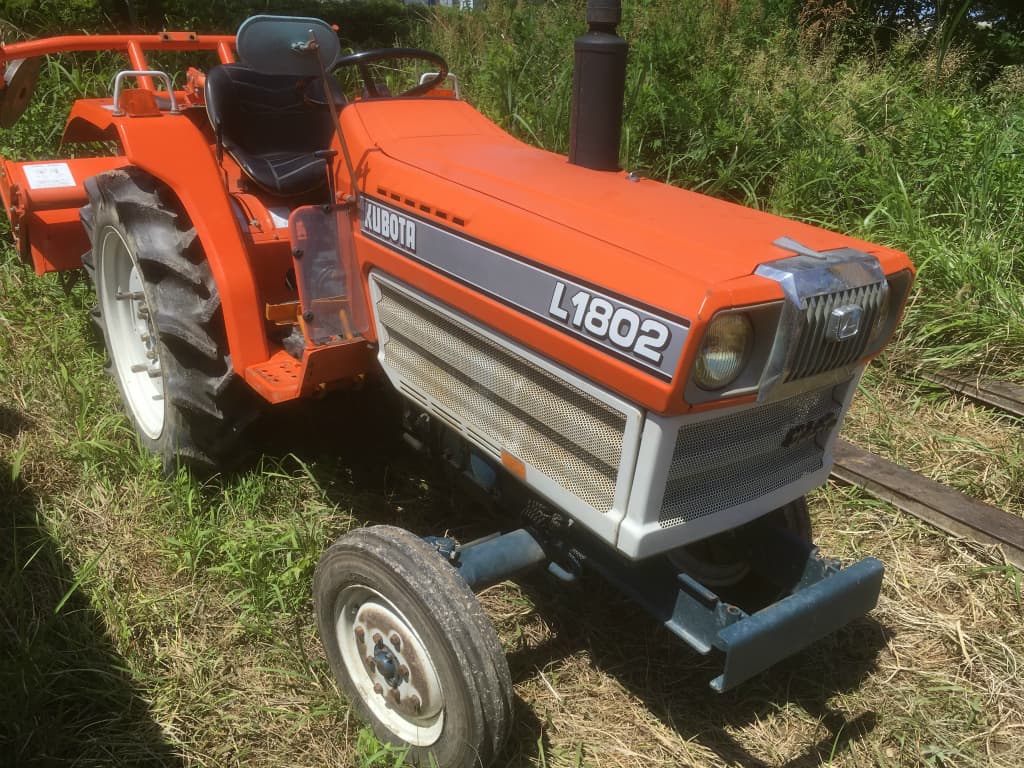

Kubota L1802

Last Updated: June 2024

Overview

The Kubota L1802 is designed to serve as a versatile utility tractor suitable for a variety of agricultural tasks. Introduced by Kubota in 1978 and manufactured until 1985, this tractor is powered by a reliable and robust Kubota D1102 diesel engine which provides 17.8 horsepower. With its liquid cooling system and 3-cylinder configuration, the L1802 is engineered for performance and durability. It features a transmission system that offers 16 forward and 4 reverse gears, accommodating various work demands. With standard agricultural tires, the tractor demonstrates proficient traction. The L1802 maintains a firm footing with a wheelbase of 59.1 inches and an operating weight ranging between 1742 to 1940 pounds, depending on the drive type. The tractor's dimensions, with a length of 101.2 inches and an exhaust height of 76.8 inches, reflect its robust yet manageable size for various farm operations.
Show more...

Key Specifications

Category: Utility

Power Output: 17.8

Operating Weight: 1742 to 1940

Fuel Type: diesel

Kubota L1802 vs. Similar Tractors

Power Output
Poor
Greater than 6% of similar tractors.
Operating Weight
Above Average
Greater than 82% of similar tractors.

Technical Specifications

Engine

Manufacturer
Kubota
Model
D1102
Cooling Type
liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
diesel
Induction Type
-
Cylinders
3
Displacement (ci)
68
Bore (in)
3
Stroke (in)
3.2
Rated RPM
2500
Power Output (hp)
17.8

Transmission

Type
-
Forward Gears
16
Reverse Gears
4
Total Gears
-

Dimensions

Length (in)
101.2
Width (in)
-
Height (in)
76.8
Operating Weight (lb)
1742 to 1940

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
-
Drive Type
-
Steering Type
-
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Standard (ag)
Manufacture - End Year
1985
Hitch Type
JIS1
Hitch Category
-
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
electric
Brake Type
-
Hydraulic System Type
-
