Kubota L175

Last Updated: June 2024

Overview

The Kubota L175 is a sub-compact utility tractor, manufactured by Kubota from 1973 to 1976. It is a 2WD (two-wheel drive), equipped with a Kubota Z750-A engine. The engine is a 0.7 L, two-cylinder, liquid-cooled, diesel, delivering 17 HP at 2800 RPM. The tractor features manual steering, a gear-type transmission with 8 forward and 2 reverse gears, a chassis of 4x2 2WD, and an operating weight of 1430 lbs. It has an open operator station, a Category I three-point hitch, and a 2.1 US gal fuel tank capacity. Designed with simplicity and functionality in mind, the Kubota L175 was well-suited for a variety of tasks around small farms and properties.

Key Specifications

Category: Utility, Sub-Compact

Power Output: 17

Transmission: Gear

Drive Type: 2WD

Operating Weight: 1430

Fuel Type: Diesel

Image Gallery

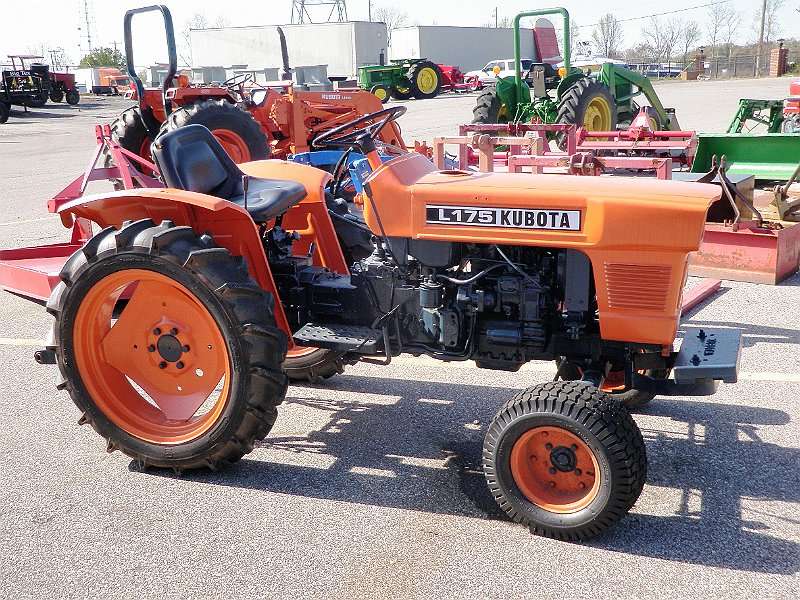

Kubota L175 Tractor

Kubota L175 vs. Similar Tractors

Power Output

Poor

Greater than 6% of similar tractors.

Hitch Capacity

Below Average

Greater than 28% of similar tractors.

Operating Weight

Below Average

Greater than 10% of similar tractors.

Technical Specifications

Engine

Manufacturer: Kubota
Model: Z750-A
Cooling Type: Liquid-cooled
Cylinder Orientation: Inline
Valve Configuration: -
Fuel Type: Diesel
Induction Type: Natural aspirated
Cylinders: 2
Displacement (ci): 45.3
Bore (in): 2.99
Stroke (in): 3.23
Rated RPM: 2800
Power Output (hp): 17

Transmission

Type: Gear
Forward Gears: 8
Reverse Gears: 2
Total Gears: -

Dimensions

Length (in): 94.5
Width (in): 47.6
Height (in): 50.8 (steering wheel height)
Operating Weight (lb): 1430

Power Take-Off (PTO)

PTO Type: -
PTO Speed 1 (rpm): -
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x2 2WD
Drive Type: 2WD
Steering Type: Manual
Coolant Capacity (qts): 5.6
Front Tire Diameter (in): -
Front Tire Width (in): -
Rear Tire Diameter (in): -
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: Ag (Agricultural)
Manufacture - End Year: 1976
Hitch Type: Three-Point Hitch
Hitch Category: Category I
Hitch Position: Rear
Hitch Capacity (lb): 1544
Operator Station Type: Open operator station
Starter Type: Electric
Brake Type: -
Hydraulic System Type: -
