Kubota L1-275

Last Updated: June 2024

Overview

The Kubota L1-275 is a compact utility tractor that was manufactured by Kubota between 1988 and 1991. It is equipped with a 26.6 horsepower Kubota D1462 diesel engine and provides a 16-speed manual transmission. This tractor has a 4x2 2WD chassis, indicating it is two-wheel drive with two powered wheels. With a liquid-cooled three-cylinder engine, it has a displacement of 89.2 cubic inches. The L1-275's rated RPM is 2700, and it has a wheelbase of 62.6 inches. The dimensions of the tractor include a length of 117.9 inches, a width of 54.3 inches, and a height of 55.7 inches. The operating weight ranges from 2304 to 2458 pounds, depending on the drive type.

Key Specifications

Category: Utility

Power Output: 26.6

Transmission: Manual

Drive Type: 2WD

Operating Weight: 2304 (2WD) - 2458 (4WD)

Fuel Type: Diesel

Image Gallery

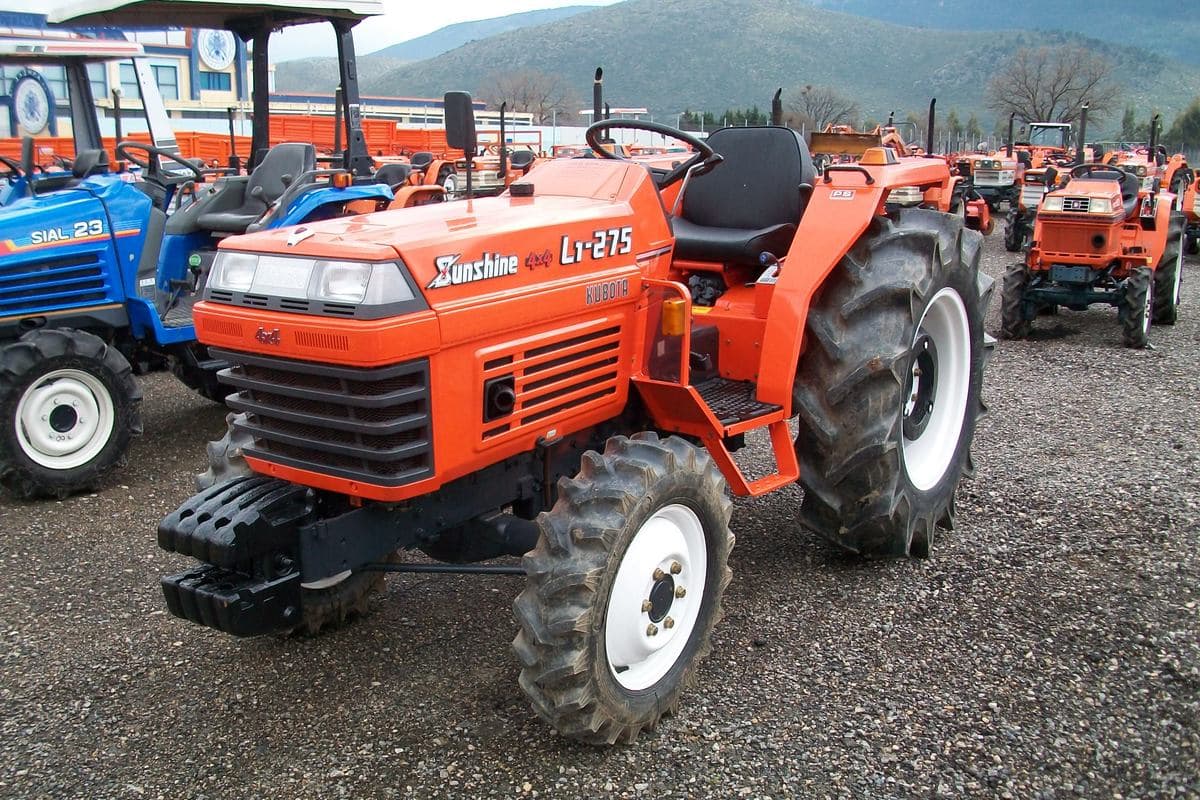

Kubota L1-275 Tractor

Kubota L1-275 vs. Similar Tractors

Power Output

Below Average

Greater than 20% of similar tractors.

Operating Weight

Excellent

Greater than 95% of similar tractors.

Technical Specifications

Engine

Manufacturer: Kubota
Model: D1462
Cooling Type: Liquid-cooled
Cylinder Orientation: -
Valve Configuration: -
Fuel Type: Diesel
Induction Type: Naturally aspirated
Cylinders: 3
Displacement (ci): 89.2
Bore (in): 3.4
Stroke (in): 3.2
Rated RPM: 2700
Power Output (hp): 26.6

Transmission

Type: Manual
Forward Gears: 16
Reverse Gears: 16
Total Gears: -

Dimensions

Length (in): 117.9
Width (in): 54.3
Height (in): 55.7
Operating Weight (lb): 2304 (2WD) - 2458 (4WD)

Power Take-Off (PTO)

PTO Type: -
PTO Speed 1 (rpm): -
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x2 2WD
Drive Type: 2WD
Steering Type: -
Coolant Capacity (qts): -
Front Tire Diameter (in): -
Front Tire Width (in): -
Rear Tire Diameter (in): -
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: -
Manufacture - End Year: 1991
Hitch Type: Category I
Hitch Category: -
Hitch Position: -
Hitch Capacity (lb): -
Operator Station Type: -
Starter Type: Electric
Brake Type: -
Hydraulic System Type: -
