Kubota L1-255

Last Updated: June 2024

Overview

The Kubota L1-255 is a compact utility tractor that excelled in various agricultural tasks from 1988 until 1991. Its robust Kubota D1462 diesel engine, rated at 24.7 horsepower, was coupled with liquid cooling to efficiently manage heat during operation. Designed to cater to a range of activities, the tractor features a shuttle/Glideshift transmission that offers 16 speeds in both forward and reverse directions. With 2WD, turf-ready agricultural tires, and a rear type I hitch, the L1-255 was built for versatile functionality. Its dry disc clutch contributes to smooth operation, and electric starting ensures simplicity in ignition. While dimensions and aspects of weight are well-established, details of the hydraulic system, PTO, and some other technical specifications require further research for precision.

Key Specifications

Category: Utility

Power Output: 24.7

Transmission: Shuttle / Glideshift

Drive Type: 2WD

Operating Weight: 2183 (for 2WD); 2359 (for 4WD); 2447 (for 4WD with GST)

Fuel Type: Diesel

Image Gallery

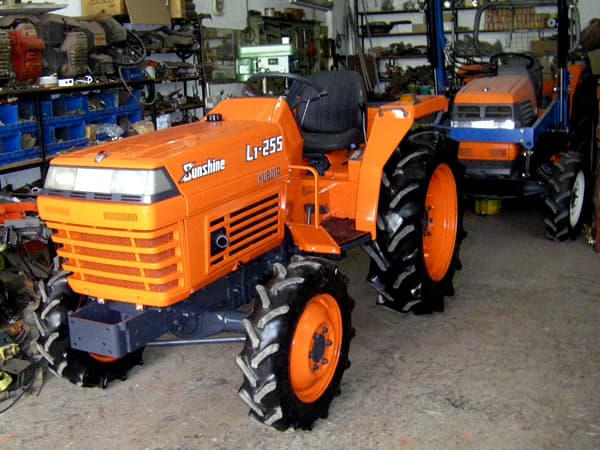

Kubota L1-255 Tractor

Kubota L1-255 vs. Similar Tractors

Power Output

Below Average

Greater than 17% of similar tractors.

Operating Weight

Excellent

Greater than 99% of similar tractors.

Technical Specifications

Engine

Manufacturer: Kubota
Model: D1462
Cooling Type: Liquid-cooled
Cylinder Orientation: -
Valve Configuration: -
Fuel Type: Diesel
Induction Type: Naturally aspirated
Cylinders: 3
Displacement (ci): 89.2
Bore (in): 3.4
Stroke (in): 3.2
Rated RPM: 2700
Power Output (hp): 24.7

Transmission

Type: Shuttle / Glideshift
Forward Gears: 16
Reverse Gears: 16
Total Gears: -

Dimensions

Length (in): 115.75
Width (in): 52
Height (in): 56.1
Operating Weight (lb): 2183 (for 2WD); 2359 (for 4WD); 2447 (for 4WD with GST)

Power Take-Off (PTO)

PTO Type: -
PTO Speed 1 (rpm): -
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x2 2WD
Drive Type: 2WD
Steering Type: -
Coolant Capacity (qts): -
Front Tire Diameter (in): 15 (Assuming tire specification follows standard notation with the last number representing the diameter)
Front Tire Width (in): 5.00 (First number in tire specification assumed to be width)
Rear Tire Diameter (in): 24 (Assuming tire specification follows standard notation with the last number representing the diameter)
Rear Tire Width (in): 11.2 (First number in tire specification assumed to be width)
Front/Rear Rim Diameter (in): -
Tire Type: Agricultural
Manufacture - End Year: 1991
Hitch Type: Three-Point Hitch (Implied by Rear Type I)
Hitch Category: Category 1 (Based on typical association with Rear Type I)
Hitch Position: Rear
Hitch Capacity (lb): -
Operator Station Type: -
Starter Type: Electric Starter
Brake Type: -
Hydraulic System Type: -
