Kubota KT24

Last Updated: June 2024

Overview

The Kubota KT24 is a compact utility tractor, notable for its solid construction and versatile performance capabilities. Equipped with a Kubota D1463 diesel engine, it boasts an engine power output of 23.7 horsepower and operates at a rated RPM of 2600. This tractor features a liquid-cooled system that ensures engine efficiency and longevity. The KT24's chassis unveils a 4x4 MFWD 4WD configuration, catering to various terrain challenges. Power steering adds to its user-friendly operation. It was manufactured between 2000 and 2004, which indicates that it might now be out of production but may still be available in the used market. With the option of a ROPS or Cab operator station, it emphasizes operator safety as well as comfort. This model presents a reliable workhorse that can handle a variety of tasks in different farm settings.

Key Specifications

Category: Utility

Power Output: 23.7

Transmission: Power shift

Drive Type: 4WD

Operating Weight: Cab Glideshift: 2579 | ROPS Glideshift: 2072 | Cab gear: 2315 | ROPS gear: 2028

Fuel Type: Diesel

Image Gallery

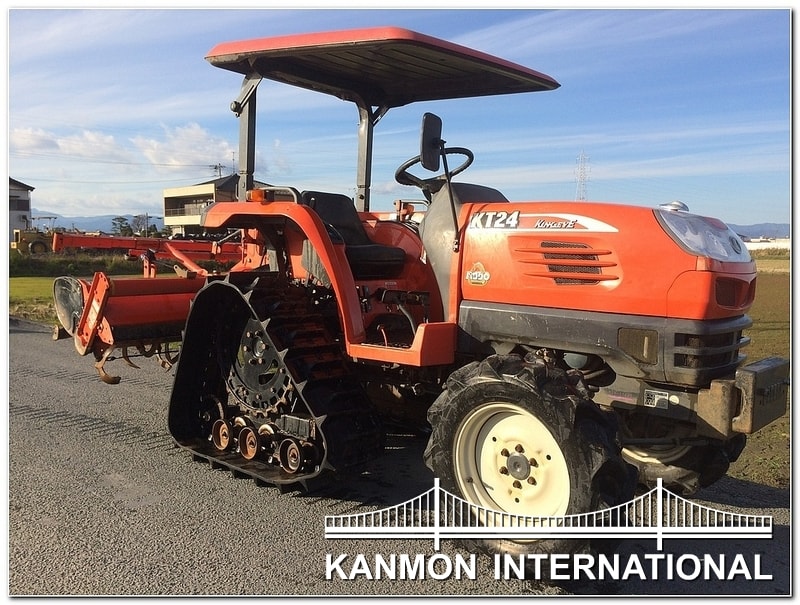

Kubota KT24 Tractor

Kubota KT24 vs. Similar Tractors

Power Output

Below Average

Greater than 15% of similar tractors.

Operating Weight

Excellent

Greater than 99% of similar tractors.

Technical Specifications

Engine

Manufacturer: Kubota
Model: D1463
Cooling Type: Liquid-cooled
Cylinder Orientation: -
Valve Configuration: -
Fuel Type: Diesel
Induction Type: -
Cylinders: 3
Displacement (ci): 89.3
Bore (in): 3.23
Stroke (in): 3.64
Rated RPM: 2600
Power Output (hp): 23.7

Transmission

Type: Power shift
Forward Gears: -
Reverse Gears: -
Total Gears: 48

Dimensions

Length (in): Cab: 110.6 | ROPS: 111.4
Width (in): Cab: 49 | ROPS: 45.3
Height (in): Cab: 75.2 | ROPS: 75
Operating Weight (lb): Cab Glideshift: 2579 | ROPS Glideshift: 2072 | Cab gear: 2315 | ROPS gear: 2028

Power Take-Off (PTO)

PTO Type: -
PTO Speed 1 (rpm): -
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x4 MFWD 4WD
Drive Type: 4WD
Steering Type: Power
Coolant Capacity (qts): -
Front Tire Diameter (in): -
Front Tire Width (in): -
Rear Tire Diameter (in): -
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: Standard (ag)
Manufacture - End Year: 2004
Hitch Type: Type I
Hitch Category: -
Hitch Position: -
Hitch Capacity (lb): -
Operator Station Type: Both ROPS and Cab available
Starter Type: Electric
Brake Type: -
Hydraulic System Type: -
