Kubota KT215

Last Updated: June 2024

Overview

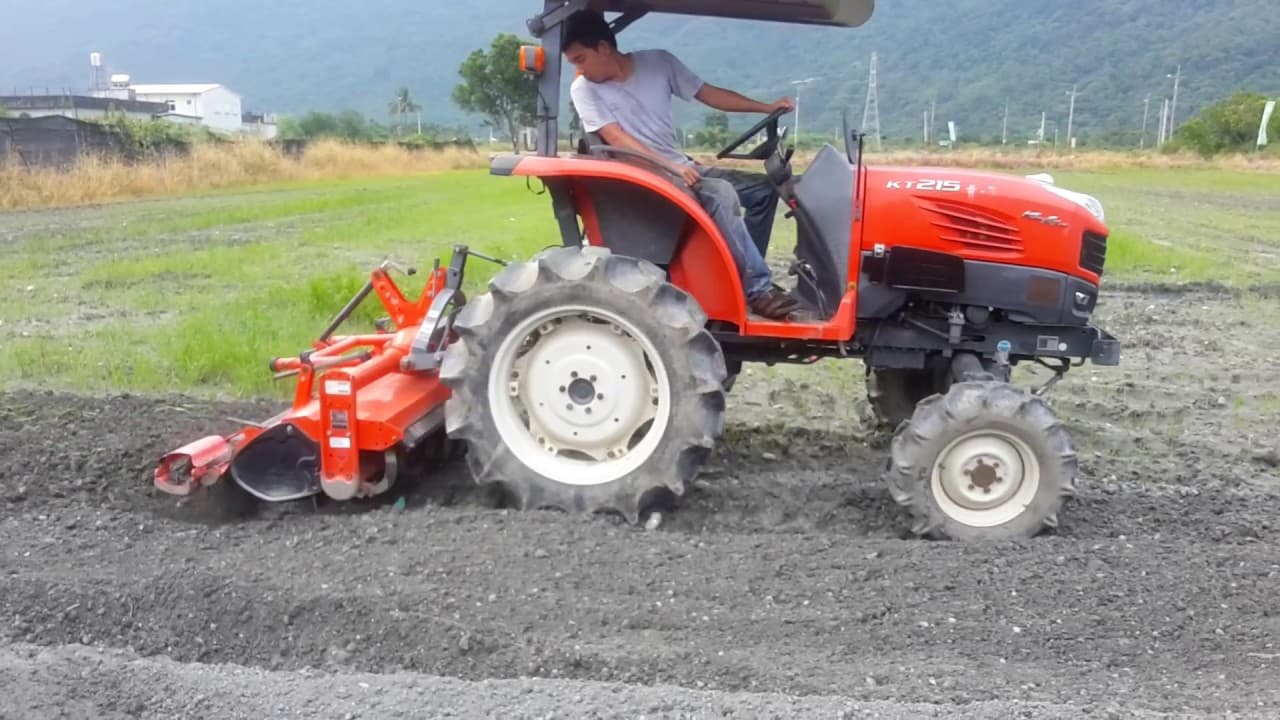

The Kubota KT215 is a compact utility tractor that was manufactured by Kubota between 2009 and 2011. It features a standard 4x4 MFWD 4WD chassis and power steering, making it capable of handling rough terrain and a variety of tasks in different settings. The tractor is powered by a Kubota D1503 three-cylinder diesel engine with a liquid cooling system, delivering an output of 20.7 horsepower at a rated RPM of 2500. The engine's displacement is 91.5 cubic inches, with a bore and stroke of 3.27 inches by 3.64 inches. A 12-speed power shift transmission facilitates efficient operation in both forward and reverse directions. Accommodations for the operator include a choice of a Roll-Over Protection Structure (ROPS) or a cab, both designed for safety and comfort. The tractor's dimensions reflect its utility nature, with a robust weight ranging from 1984 to 2293 pounds, depending on the configuration, providing stability for various tasks. Despite its compact size, the KT215 maintains a relatively high ground clearance of 12.8 inches, enhancing its utility on uneven ground. The tire options indicate the tractor's agricultural focus, although detailed tire sizes and the hitch lift capacity are not specified. This model would be well-suited for small-scale farming, landscaping, and property maintenance tasks.
Show more...

Key Specifications

Category: Utility

Power Output: 20.7

Transmission: Power shift

Drive Type: MFWD 4WD

Operating Weight: 1984 to 2293

Fuel Type: Diesel

Kubota KT215 vs. Similar Tractors

Power Output
Below Average
Greater than 10% of similar tractors.
Operating Weight
Above Average
Greater than 82% of similar tractors.

Technical Specifications

Engine

Manufacturer
Kubota
Model
D1503
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Naturally aspirated
Cylinders
3
Displacement (ci)
91.5
Bore (in)
3.27
Stroke (in)
3.64
Rated RPM
2500
Power Output (hp)
20.7

Transmission

Type
Power shift
Forward Gears
12
Reverse Gears
12
Total Gears
-

Dimensions

Length (in)
111.8
Width (in)
46.1 (ROPS Width), 51.6 (Cab Width)
Height (in)
75 (ROPS Height), 76 (Cab Height)
Operating Weight (lb)
1984 to 2293

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
MFWD 4WD
Steering Type
Power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Ag (Agricultural)
Manufacture - End Year
2011
Hitch Type
Category I
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
ROPS / Cab
Starter Type
Electric
Brake Type
-
Hydraulic System Type
-
