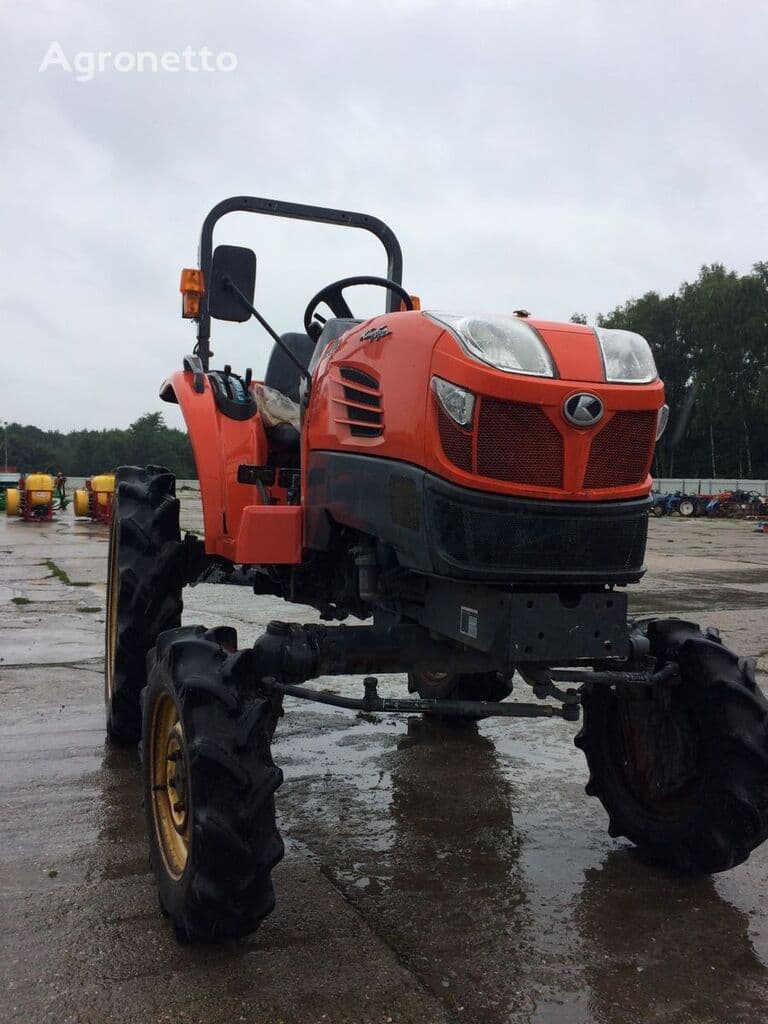

Kubota KT210

Last Updated: June 2024

Overview

The Kubota KT210 is a compact utility tractor known for its 4x4 MFWD 4WD configuration that offers enhanced traction and performance in a variety of working conditions. With a Kubota-manufactured engine model D1403, this tractor boasts a 20.7 horsepower liquid-cooled diesel engine. The power shift transmission provides efficiency in operation with a large number of gears, although the exact number of forward and reverse gears is not specified. It operated within the years 2005 to 2008, offering configurations with both ROPS and cab options. Its physical dimensions and operational weight vary depending on the configuration, with notable features including a dry disc clutch and the versatility of a Glideshift transmission system. Catering to a broad spectrum of tasks, the KT210 serves as a reliable workhorse on smaller farms, and for tasks where its compact size and maneuverability are of advantage.
Show more...

Key Specifications

Category: Utility

Power Output: 20.7

Transmission: Power shift

Drive Type: 4WD

Operating Weight: 1984 (ROPS gear) | 2028 (ROPS Glideshift) | 2249 (cab gear) | 2293 (cab Glideshift)

Fuel Type: Diesel

Kubota KT210 vs. Similar Tractors

Power Output
Below Average
Greater than 10% of similar tractors.
Operating Weight
Excellent
Greater than 99% of similar tractors.

Technical Specifications

Engine

Manufacturer
Kubota
Model
D1403
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Naturally aspirated
Cylinders
3
Displacement (ci)
85
Bore (in)
3.1
Stroke (in)
3.6
Rated RPM
2600
Power Output (hp)
20.7

Transmission

Type
Power shift
Forward Gears
-
Reverse Gears
-
Total Gears
48

Dimensions

Length (in)
111.8
Width (in)
46.1
Height (in)
75 (ROPS) | 76 (cab)
Operating Weight (lb)
1984 (ROPS gear) | 2028 (ROPS Glideshift) | 2249 (cab gear) | 2293 (cab Glideshift)

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
Power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Ag (Agricultural)
Manufacture - End Year
2008
Hitch Type
Category I
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
ROPS/Cab
Starter Type
Electric
Brake Type
-
Hydraulic System Type
-
