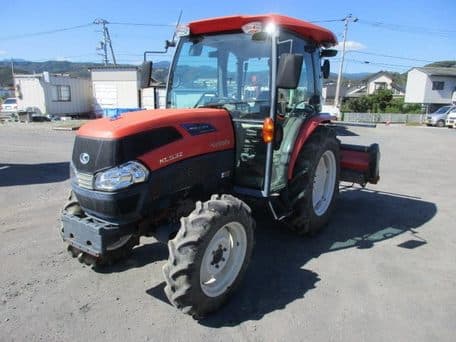

Kubota KL53Z

Last Updated: June 2024

Overview

The Kubota KL53Z is a compact utility tractor that is part of Kubota's KL Kingwel Zero Series, manufactured between 2012 and 2015. It features a 52.3 horsepower Kubota V2403 diesel engine, and is equipped with a four-wheel drive chassis supporting a more versatile performance in varied conditions. Steering is powered for easier maneuverability. The transmission type is a continuously variable transmission (CVT) with infinite (3-range) forward and reverse gears, which provides highly adaptable speed options for different tasks. Notable physical dimensions of this tractor include a length of 136.8 inches, width of 61 inches, and height options of 93.3 inches with ROPS or 90.6 inches with a cab. With an operating weight of 4233 pounds, the tractor maintains a solid presence on the field. This model utilises agricultural standard tires, front: 8.3-20, rear: 13.6-28, combined with a wheelbase of 76.4 inches to ensure stability in operation. It's designed with an emphasis on operator comfort and efficiency, targeted at medium to heavy-duty applications across a range of agricultural tasks.
Show more...

Key Specifications

Category: Utility

Power Output: 52.3

Transmission: Continuously Variable Transmission (CVT)

Drive Type: 4WD

Operating Weight: 4233

Fuel Type: Diesel

Kubota KL53Z vs. Similar Tractors

Power Output
Average
Greater than 50% of similar tractors.
Operating Weight
Average
Greater than 39% of similar tractors.

Technical Specifications

Engine

Manufacturer
Kubota
Model
V2403
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Natural
Cylinders
4
Displacement (ci)
148.5
Bore (in)
3.43
Stroke (in)
4.03
Rated RPM
2600
Power Output (hp)
52.3

Transmission

Type
Continuously Variable Transmission (CVT)
Forward Gears
Infinite (3-range)
Reverse Gears
Infinite (3-range)
Total Gears
Infinite

Dimensions

Length (in)
136.8
Width (in)
61
Height (in)
Height (ROPS): 93.3 | Height (cab): 90.6
Operating Weight (lb)
4233

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
Power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Agricultural
Manufacture - End Year
2015
Hitch Type
Category I
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Electric
Brake Type
-
Hydraulic System Type
-
