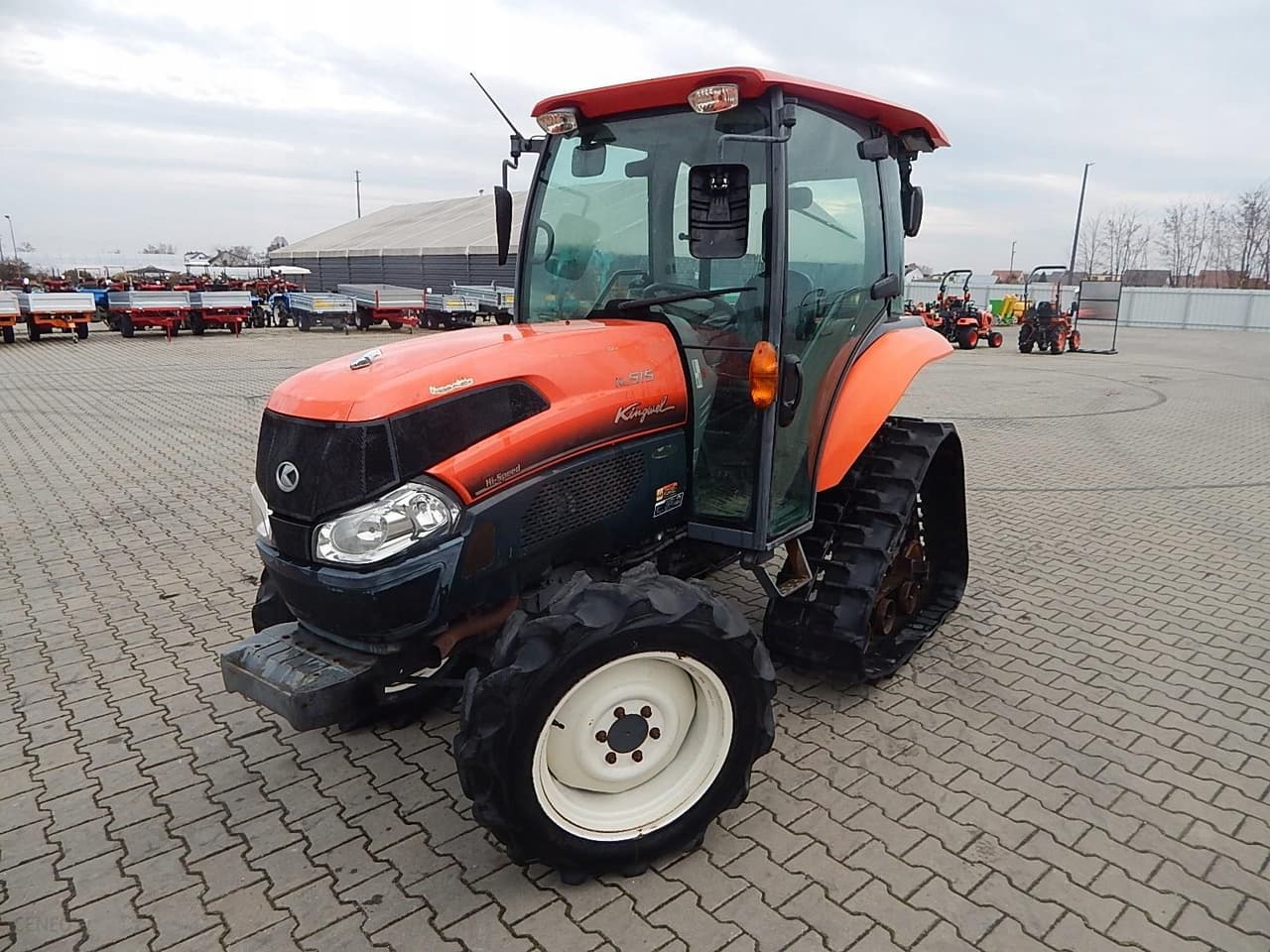

Kubota KL5150

Last Updated: June 2024

Overview

The Kubota KL5150 is a compact utility tractor that was part of the KL Kingwel 50 Series and manufactured between 2010 and 2011. It runs on a 50.3 horsepower Kubota V2403 four-cylinder, liquid-cooled, diesel engine and features a chassis with a 4x4 MFWD 4WD setup. The tractor boasts a strong power steering system and a dry disc clutch that manages its 30 forward and 20 reverse transmission gears, adding up to a 50-gear system that is not specifically categorized. This tractor has the versatility of two weight options, depending on whether it is equipped with ROPS or a cab. Designed to handle a variety of tasks, the KL5150 has standard agricultural tires and features a three-point hitch with Category 3 sizing for attaching various implements. The tractor offers a balance between functionality and comfort with either an open station with ROPS or an enclosed cab for different working conditions.
Show more...

Key Specifications

Category: Utility

Power Output: 50.3

Drive Type: 4WD

Operating Weight: 3616 (ROPS), 4012 (cab)

Fuel Type: Diesel

Kubota KL5150 vs. Similar Tractors

Power Output
Average
Greater than 49% of similar tractors.
Operating Weight
Average
Greater than 31% of similar tractors.

Technical Specifications

Engine

Manufacturer
Kubota
Model
V2403
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Naturally Aspirated
Cylinders
4
Displacement (ci)
148.5
Bore (in)
3.43
Stroke (in)
4.03
Rated RPM
2700
Power Output (hp)
50.3

Transmission

Type
-
Forward Gears
30
Reverse Gears
20
Total Gears
50

Dimensions

Length (in)
139.2
Width (in)
60.4
Height (in)
93.3 (ROPS), 89 (cab)
Operating Weight (lb)
3616 (ROPS), 4012 (cab)

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
Power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Agricultural
Manufacture - End Year
2011
Hitch Type
Three-Point Hitch
Hitch Category
Category 3
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
Both Open (ROPS) and Cab available
Starter Type
Electric
Brake Type
-
Hydraulic System Type
-
