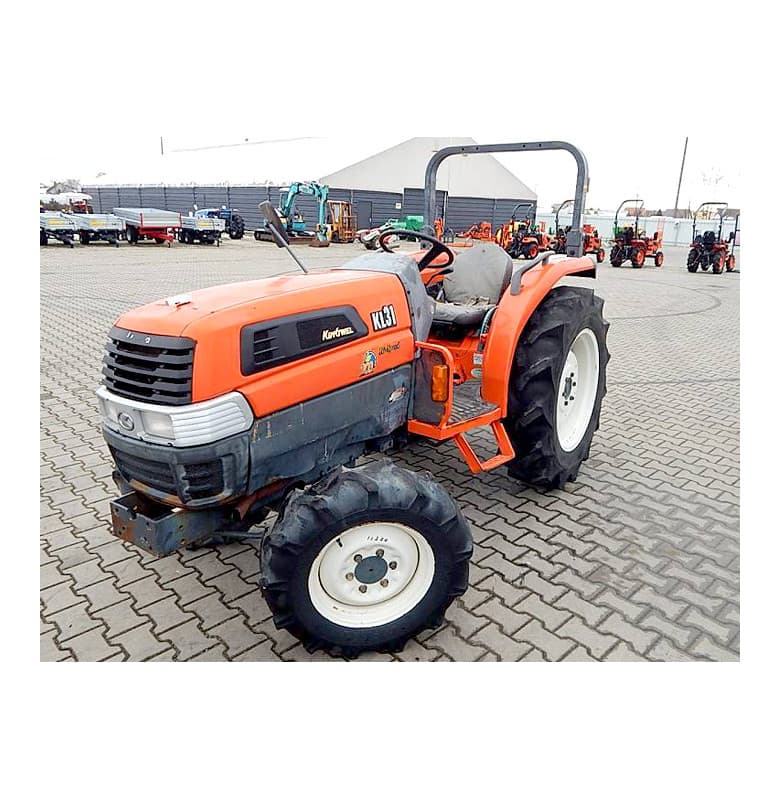

Kubota KL31 Hi-Speed

Last Updated: June 2024

Overview

The Kubota KL31 Hi-Speed is a compact utility tractor, designed to deliver reliable performance and versatility for a variety of tasks. Equipped with a durable Kubota D1703 liquid-cooled diesel engine, this tractor offers a power output of 30.6 horsepower. A robust chassis with 4x4 MFWD 4WD makes it capable of handling challenging terrain with ease. The power steering adds to the operator's comfort. It operates with a 20-speed transmission, although discrepancies exist and it could be 30 forward gears and 20 reverse gears, providing flexibility in speed and maneuverability. The tractor's dimensions and weight indicate it has a sturdy build, with a length of 125.5 inches, a width of 55.9 inches, and a height of 82.7 inches when equipped with a cab. The tractor weighs up to 3285 lbs with the cab option, emphasizing its solid construction. Typical of this category, the KL31 Hi-Speed is likely to be equipped with a Category I hitch type, though the hitch's lift capacity remains unspecified. Its maintenance and operation are eased by its electric starter mechanism and the convenience of power steering.
Show more...

Key Specifications

Category: Utility

Power Output: 30.6

Drive Type: 4WD

Operating Weight: 3285

Fuel Type: Diesel

Kubota KL31 Hi-Speed vs. Similar Tractors

Power Output
Below Average
Greater than 26% of similar tractors.
Operating Weight
Below Average
Greater than 28% of similar tractors.

Technical Specifications

Engine

Manufacturer
Kubota
Model
D1703
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
-
Cylinders
3
Displacement (ci)
100.5
Bore (in)
3.43
Stroke (in)
3.64
Rated RPM
2700
Power Output (hp)
30.6

Transmission

Type
-
Forward Gears
30
Reverse Gears
20
Total Gears
-

Dimensions

Length (in)
125.5
Width (in)
55.9
Height (in)
82.7
Operating Weight (lb)
3285

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
Power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Ag
Manufacture - End Year
-
Hitch Type
Category I
Hitch Category
Category 3
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Electric
Brake Type
-
Hydraulic System Type
-
