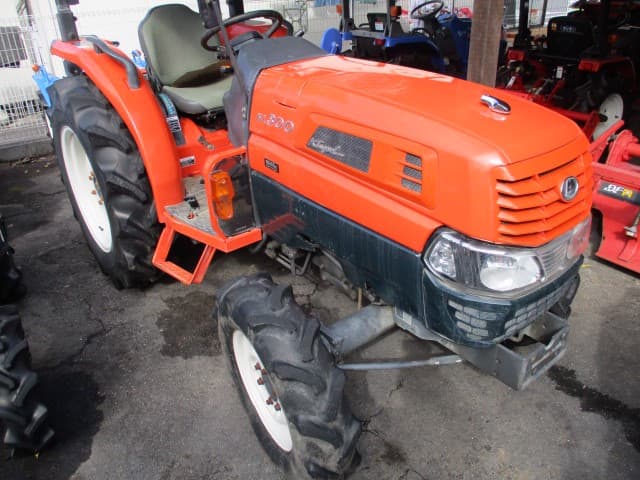

Kubota KL300

Last Updated: June 2024

Overview

The Kubota KL300 is a compact utility tractor that offers versatility and power for various agricultural tasks. With a liquid-cooled, 3-cylinder Kubota D1503 diesel engine producing 29.6 horsepower, the tractor is well-suited for a range of jobs. Equipped with a four-wheel drive chassis (4x4 MFWD 4WD) and power steering, it ensures performance and maneuverability in different terrains. The tractor has a robust 16-speed transmission, providing flexibility with 16 forward and reverse gears. Standard agricultural tires with sizes of Front: 8-16 and Rear: 12.4-26 contribute to the tractor's efficiency on the field. The KL300's dimensions, comprising a length of 125.2 inches, a width of 55.9 inches, and a height of 78 inches, alongside an operating weight between 2910 and 3296 pounds, indicate a sturdy and reliable machine with a reasonable footprint. Manufactured from 2006 to 2007, this tractor embodies Kubota's commitment to durability and user-friendly design.
Show more...

Key Specifications

Category: Utility

Power Output: 29.6

Drive Type: 4WD

Operating Weight: 2910 to 3296

Fuel Type: Diesel

Kubota KL300 vs. Similar Tractors

Power Output
Below Average
Greater than 24% of similar tractors.
Operating Weight
Above Average
Greater than 84% of similar tractors.

Technical Specifications

Engine

Manufacturer
Kubota
Model
D1503
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
-
Cylinders
3
Displacement (ci)
91.5
Bore (in)
3.27
Stroke (in)
3.64
Rated RPM
2700
Power Output (hp)
29.6

Transmission

Type
-
Forward Gears
16
Reverse Gears
16
Total Gears
-

Dimensions

Length (in)
125.2
Width (in)
55.9
Height (in)
78
Operating Weight (lb)
2910 to 3296

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
Power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Standard tires (ag): Front: 8-16. Rear: 12.4-26
Manufacture - End Year
2007
Hitch Type
Rear Type: I
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Electric
Brake Type
-
Hydraulic System Type
-
