Kubota KL270

Last Updated: June 2024

Overview

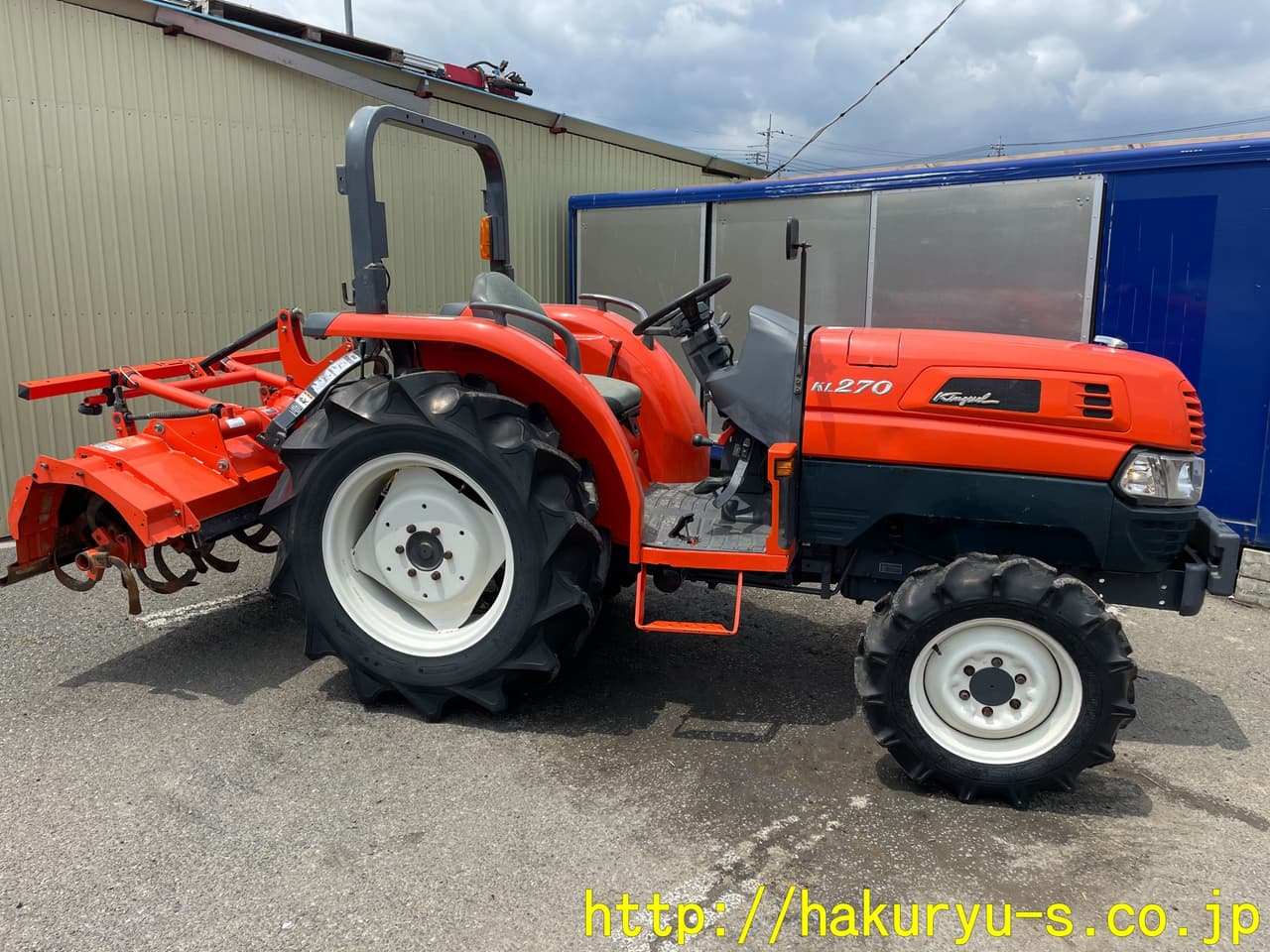

The Kubota KL270 is a compact utility tractor that was manufactured between 2006 and 2007. It is equipped with a Kubota D1503 three-cylinder diesel engine, providing 26.7 horsepower and boasting a displacement of 91.5 cubic inches. The engine is liquid-cooled and operates at a rated RPM of 2600. With a 4x4 MFWD 4WD chassis, this tractor offers power steering for ease of maneuverability. The transmission system is described as having 16 total gears, but the specific forward and reverse gear counts are not specified. The tractor's dimensions include a length of 123.6 inches, a width of 54 inches, and height options depending on the presence of ROPS or a cab: either 76.8 inches or 77.6 inches, respectively. The operating weight varies too, with 2833 pounds for the model with ROPS and 3219 pounds for the one with a cab. Standard agricultural tires are fitted, with front tire size unclear and the rear tire measuring 12.4-24. This tractor serves well for a variety of tasks thanks to its compact size and robust engine.
Show more...

Key Specifications

Category: Utility

Power Output: 26.7

Drive Type: 4WD

Operating Weight: 2833 (ROPS), 3219 (cab)

Fuel Type: Diesel

Kubota KL270 vs. Similar Tractors

Power Output
Below Average
Greater than 20% of similar tractors.
Operating Weight
Below Average
Greater than 23% of similar tractors.

Technical Specifications

Engine

Manufacturer
Kubota
Model
D1503
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Naturally aspirated
Cylinders
3
Displacement (ci)
91.5
Bore (in)
3.27
Stroke (in)
3.64
Rated RPM
2600
Power Output (hp)
26.7

Transmission

Type
-
Forward Gears
-
Reverse Gears
-
Total Gears
16

Dimensions

Length (in)
123.6
Width (in)
54
Height (in)
76.8 (ROPS), 77.6 (cab)
Operating Weight (lb)
2833 (ROPS), 3219 (cab)

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
Power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Ag
Manufacture - End Year
2007
Hitch Type
-
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Electric
Brake Type
-
Hydraulic System Type
-
