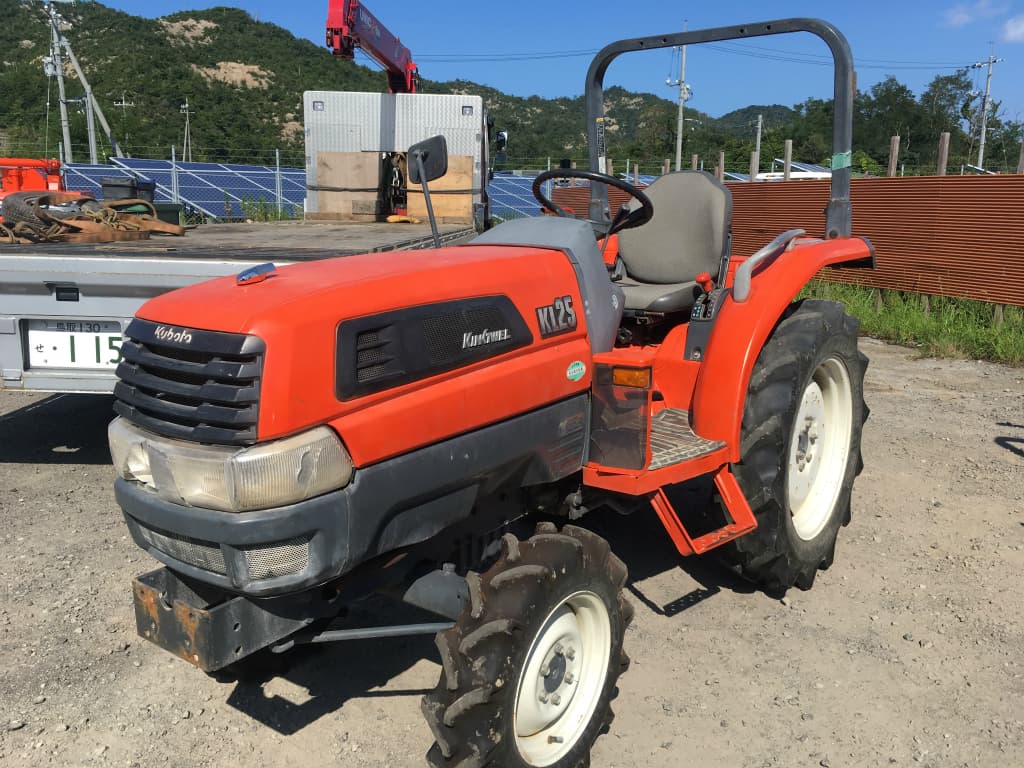

Kubota KL250

Last Updated: June 2024

Overview

The Kubota KL250 is a compact utility tractor known for its robustness and versatility. It was manufactured between 2006 and 2007, featuring a Kubota D1463 diesel engine with three cylinders and a displacement of 89.3 cubic inches, producing 24.7 horsepower. The tractor has a 4x4 MFWD four-wheel-drive chassis, power steering, and a 16-speed transmission with an equal number of forward and reverse gears. The tractor can be configured with either a ROPS or a cab, both affecting the weight and dimensions slightly. The wheelbase and height measurements also vary slightly based on the presence of a ROPS or cab, accommodating the different use cases that the tractor might encounter. The tractor's ground clearance sits at 14.2 inches, providing sufficient height for various agricultural tasks. This model is suited to a range of tasks on the farm, with adequate power and traction to handle challenging environments.
Show more...

Key Specifications

Category: Utility

Power Output: 24.7

Drive Type: 4WD

Operating Weight: ROPS: 2646 | Cab: 3042

Fuel Type: Diesel

Kubota KL250 vs. Similar Tractors

Power Output
Below Average
Greater than 17% of similar tractors.
Operating Weight
Above Average
Greater than 83% of similar tractors.

Technical Specifications

Engine

Manufacturer
Kubota
Model
D1463
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Naturally aspirated
Cylinders
3
Displacement (ci)
89.3
Bore (in)
3.23
Stroke (in)
3.64
Rated RPM
2600
Power Output (hp)
24.7

Transmission

Type
-
Forward Gears
16
Reverse Gears
16
Total Gears
-

Dimensions

Length (in)
ROPS: 118.3 | Cab: 120.5
Width (in)
52
Height (in)
ROPS: 78.2 | Cab: 78.5
Operating Weight (lb)
ROPS: 2646 | Cab: 3042

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
Power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
11.2
Front/Rear Rim Diameter (in)
-
Tire Type
Ag (standard tires)
Manufacture - End Year
2007
Hitch Type
Category I
Hitch Category
Category 3
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
ROPS/Cab
Starter Type
Electric
Brake Type
-
Hydraulic System Type
-
