Kubota KB16

Last Updated: June 2024

Overview

The Kubota KB16 is a sub-compact utility tractor that was produced from 2005 to 2007. It is equipped with a 15.8 horsepower diesel engine and a power shift transmission with nine forward and reverse gears. Featuring a 4x4 MFWD 4WD chassis for increased traction and power steering for maneuverability, the KB16 offers practicality and ease of use for a variety of tasks. The tractor has a wheelbase of 53.2 inches and operates at a rated RPM of 2600, with a liquid-cooled Kubota D905 engine. Its operating weight ranges between 1521 to 1576 pounds and it is known for its durability and reliability. With dimension specifics like a length of 91.3 inches, a width of 42.3 inches, and a height of 73.6 inches with the ROPS, the KB16 can handle both open fields and tighter spaces with efficiency.

Key Specifications

Category: Utility, Sub-Compact

Power Output: 15.8

Transmission: power shift

Drive Type: 4WD

Operating Weight: 1521 to 1576

Fuel Type: diesel

Image Gallery

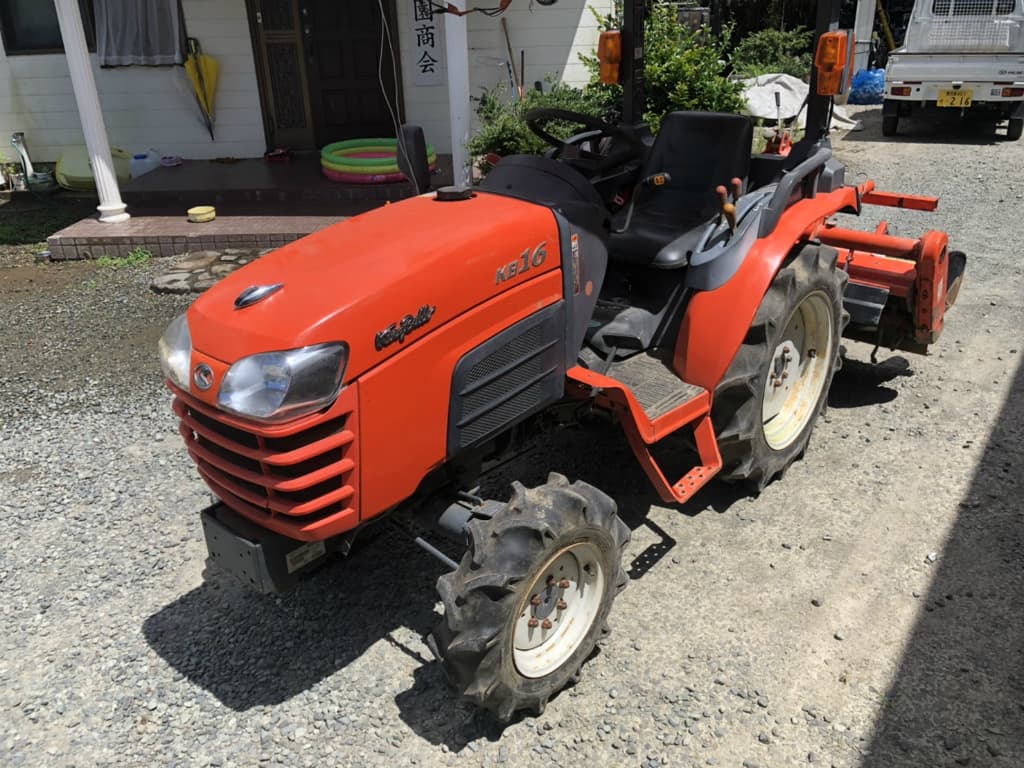

Kubota KB16 Tractor

Kubota KB16 vs. Similar Tractors

Power Output

Poor

Greater than 4% of similar tractors.

Operating Weight

Above Average

Greater than 81% of similar tractors.

Technical Specifications

Engine

Manufacturer: Kubota
Model: D905
Cooling Type: liquid-cooled
Cylinder Orientation: -
Valve Configuration: -
Fuel Type: diesel
Induction Type: -
Cylinders: 3
Displacement (ci): 54.8
Bore (in): 2.83
Stroke (in): 2.9
Rated RPM: 2600
Power Output (hp): 15.8

Transmission

Type: power shift
Forward Gears: 9
Reverse Gears: 9
Total Gears: -

Dimensions

Length (in): 91.3
Width (in): 42.3
Height (in): 73.6
Operating Weight (lb): 1521 to 1576

Power Take-Off (PTO)

PTO Type: -
PTO Speed 1 (rpm): -
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x4 MFWD 4WD
Drive Type: 4WD
Steering Type: power
Coolant Capacity (qts): -
Front Tire Diameter (in): -
Front Tire Width (in): -
Rear Tire Diameter (in): -
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: Standard (ag)
Manufacture - End Year: 2007
Hitch Type: -
Hitch Category: Category 3
Hitch Position: -
Hitch Capacity (lb): -
Operator Station Type: -
Starter Type: Electric Starter
Brake Type: -
Hydraulic System Type: -
