Kubota JB16

Last Updated: June 2024

Overview

The Kubota JB16 is a sub-compact utility tractor that was part of Kubota's JB Bullstar Series manufactured between 2006 and 2008. It features a four-wheel drive chassis (4x4 MFWD 4WD) with a power steering system that enhances maneuverability. The tractor's heart is a reliable Kubota D1005 diesel engine, a liquid-cooled three-cylinder that provides 16.2 horsepower and operates at a rated RPM of 2600. Its manual transmission offers 6 forward and 2 reverse gears, affording a good range of speed options for various tasks. The JB16's dry disc clutch is designed to handle this range efficiently. This model boasts a modest footprint with an overall length of 80.5 inches, a width of 38.2 inches, and a 72.4-inch height. The ground clearance of 11.2 inches makes this tractor suitable for operations over uneven terrain.

Key Specifications

Category: Utility, Sub-Compact

Power Output: 16.2

Transmission: Manual

Drive Type: 4WD

Operating Weight: 1301

Fuel Type: Diesel

Image Gallery

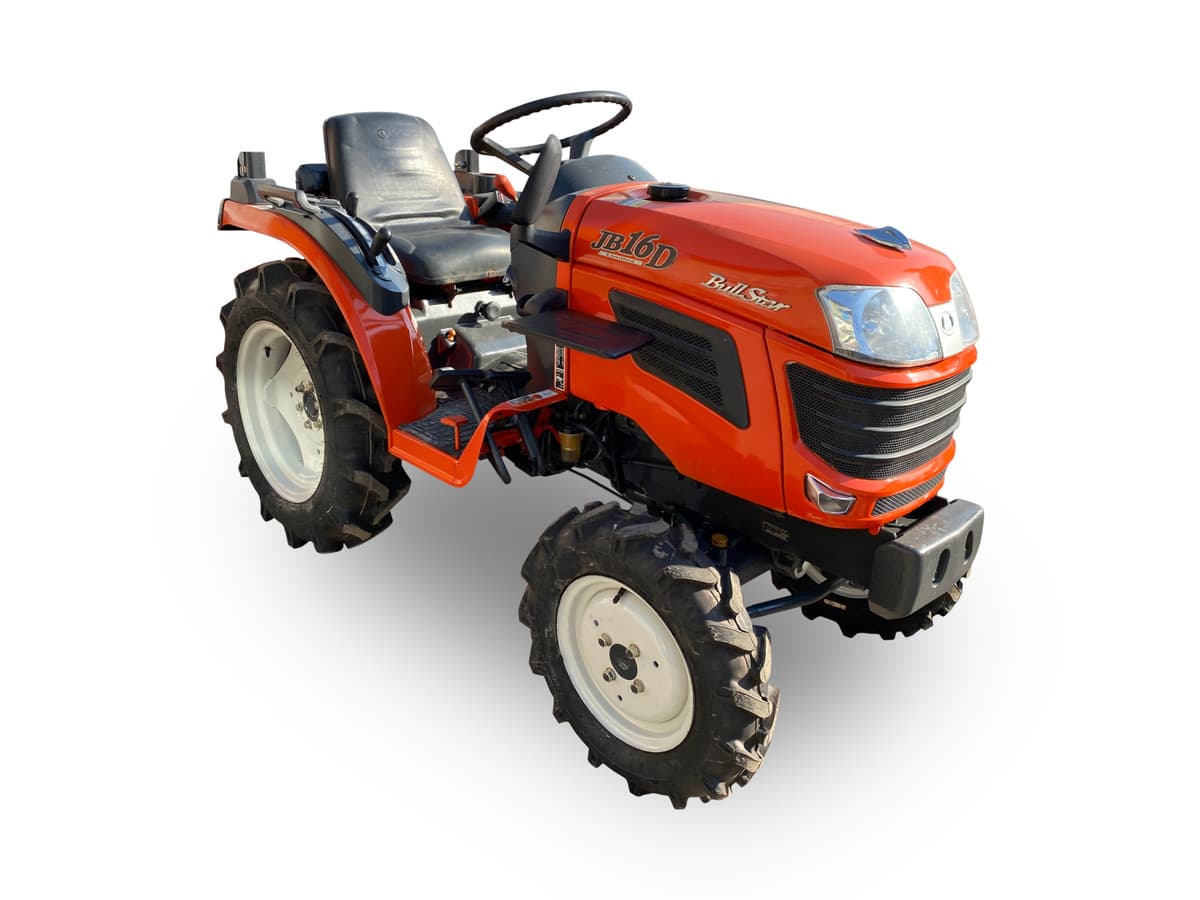

Kubota JB16 Tractor

Kubota JB16 vs. Similar Tractors

Power Output

Poor

Greater than 4% of similar tractors.

Operating Weight

Poor

Greater than 9% of similar tractors.

Technical Specifications

Engine

Manufacturer: Kubota
Model: D1005
Cooling Type: Liquid-cooled
Cylinder Orientation: -
Valve Configuration: -
Fuel Type: Diesel
Induction Type: Naturally Aspirated
Cylinders: 3
Displacement (ci): 61.1
Bore (in): 2.99
Stroke (in): 2.9
Rated RPM: 2600
Power Output (hp): 16.2

Transmission

Type: Manual
Forward Gears: 6
Reverse Gears: 2
Total Gears: -

Dimensions

Length (in): 80.5
Width (in): 38.2
Height (in): 72.4
Operating Weight (lb): 1301

Power Take-Off (PTO)

PTO Type: -
PTO Speed 1 (rpm): -
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x4 MFWD 4WD
Drive Type: 4WD
Steering Type: Power
Coolant Capacity (qts): -
Front Tire Diameter (in): -
Front Tire Width (in): -
Rear Tire Diameter (in): -
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: Agricultural
Manufacture - End Year: 2008
Hitch Type: -
Hitch Category: -
Hitch Position: -
Hitch Capacity (lb): -
Operator Station Type: -
Starter Type: Electric
Brake Type: -
Hydraulic System Type: -
