Kubota JB13

Last Updated: June 2024

Overview

The Kubota JB13 is a sub-compact utility tractor that was manufactured by Kubota between 2006 and 2008. This tractor features a Kubota D722, three-cylinder, liquid-cooled diesel engine with a displacement of 43.9 cubic inches and a power output of 12.9 horsepower at a rated RPM of 2600. It has a 4x4 MFWD 4WD chassis and a power steering system. The manual transmission offers 6 forward and 2 reverse gears. The unit boasts a dry disc clutch and operates with a standard tire setup of 4.00-12 in the front and 7-16 in the rear. The Kubota JB13 has a wheelbase of 50 inches, a length of 78.7 inches, a width of 37 inches, and a height of 70.1 inches. It weighs in at 1213 pounds and is characterized by its compact dimensions and versatility, making it suitable for a variety of tasks within its operating capacity.

Key Specifications

Category: Utility, Sub-Compact

Power Output: 12.9

Transmission: manual

Drive Type: 4WD

Operating Weight: 1213

Fuel Type: diesel

Image Gallery

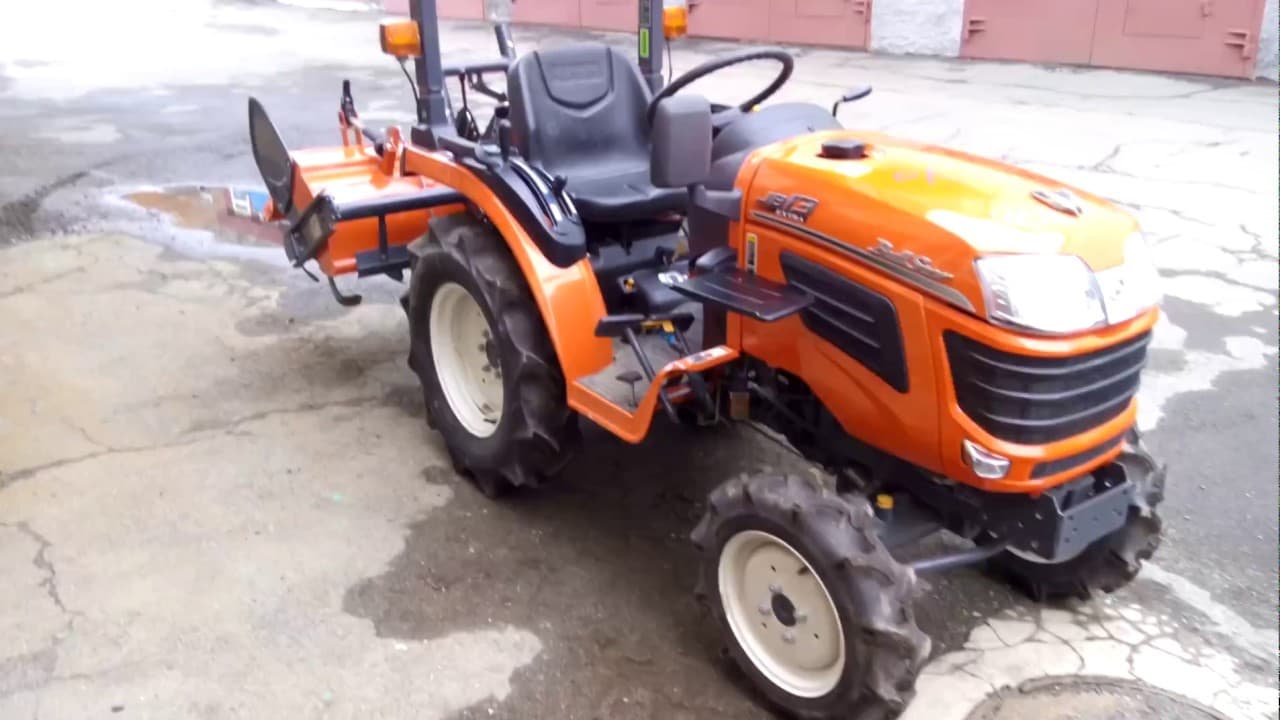

Kubota JB13 Tractor

Kubota JB13 vs. Similar Tractors

Power Output

Poor

Greater than 1% of similar tractors.

Operating Weight

Poor

Greater than 8% of similar tractors.

Technical Specifications

Engine

Manufacturer: Kubota
Model: D722
Cooling Type: liquid-cooled
Cylinder Orientation: -
Valve Configuration: -
Fuel Type: diesel
Induction Type: -
Cylinders: 3
Displacement (ci): 43.9
Bore (in): 2.64
Stroke (in): 2.68
Rated RPM: 2600
Power Output (hp): 12.9

Transmission

Type: manual
Forward Gears: 6
Reverse Gears: 2
Total Gears: -

Dimensions

Length (in): 78.7
Width (in): 37
Height (in): 70.1
Operating Weight (lb): 1213

Power Take-Off (PTO)

PTO Type: -
PTO Speed 1 (rpm): -
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x4 MFWD 4WD
Drive Type: 4WD
Steering Type: power
Coolant Capacity (qts): -
Front Tire Diameter (in): -
Front Tire Width (in): -
Rear Tire Diameter (in): -
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: Standard (ag)
Manufacture - End Year: 2008
Hitch Type: -
Hitch Category: -
Hitch Position: -
Hitch Capacity (lb): -
Operator Station Type: -
Starter Type: electric
Brake Type: -
Hydraulic System Type: -
