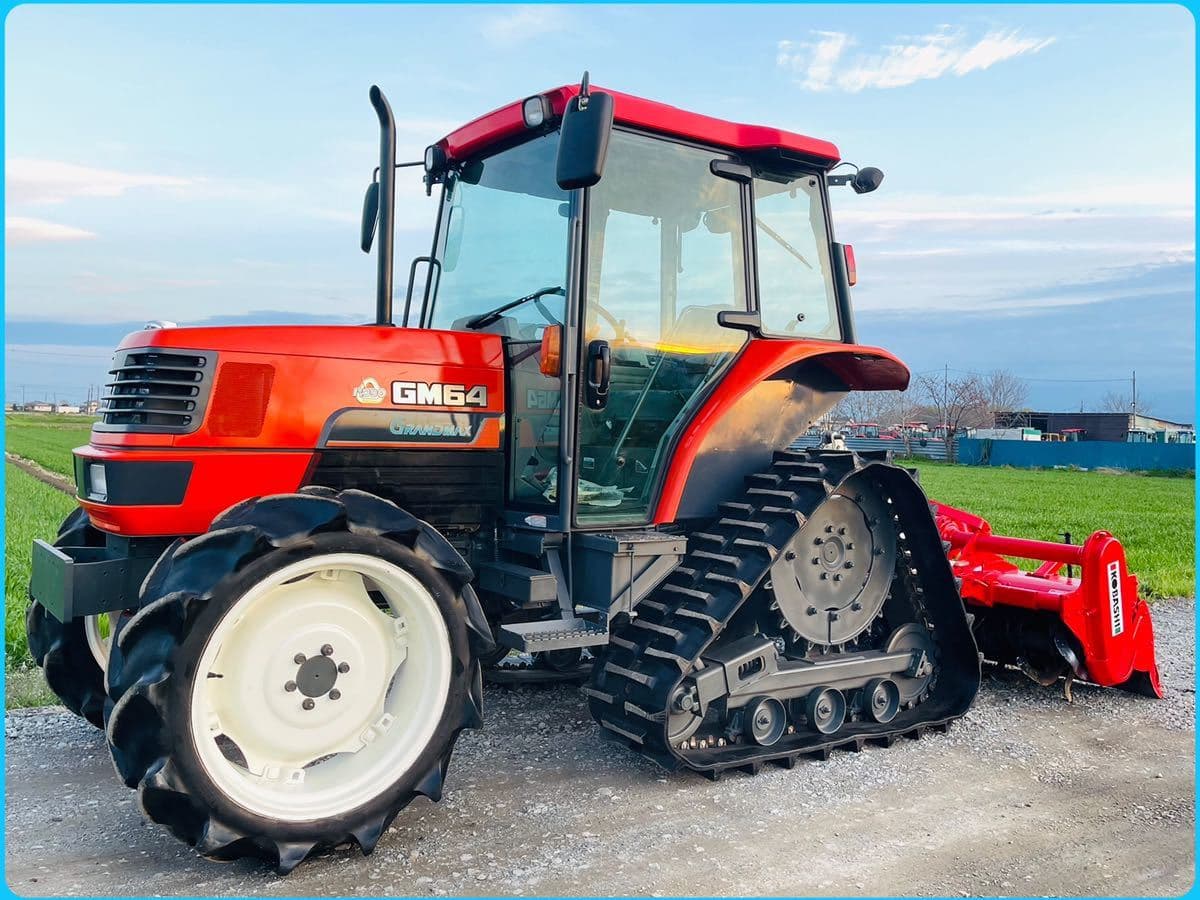

Kubota GM64

Last Updated: June 2024

Overview

The Kubota GM64 is a utility tractor that was manufactured from 1998 to 2006. It is equipped with a Kubota V3300 four-cylinder liquid-cooled diesel engine providing a power output of 63 horsepower. The tractor offers a 4-wheel drive, 4x4 MFWD 4WD chassis and a 24-speed transmission, catering to a variety of tasks with a balance of power and maneuverability. It has power steering which enhances operator comfort and control. This model features a wheelbase of 84.7 inches, is 143.9 inches long, and has a width of 65.2 inches. Depending on the version, it has a height of 98.8 inches with ROPS and 96.9 inches with a cab. The tractor's operating weight ranges from 4916 to 5313 pounds, with the heavier weight indicating a tractor equipped with a cab. The spacious dimensions of the tractor, coupled with its robust construction, make it suitable for a wide range of agricultural tasks.
Show more...

Key Specifications

Category: Utility

Power Output: 63

Drive Type: 4WD

Operating Weight: 4916 (ROPS), 5313 (cab)

Fuel Type: Diesel

Kubota GM64 vs. Similar Tractors

Power Output
Average
Greater than 59% of similar tractors.
Operating Weight
Average
Greater than 43% of similar tractors.

Technical Specifications

Engine

Manufacturer
Kubota
Model
V3300
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
-
Cylinders
4
Displacement (ci)
202.5
Bore (in)
3.86
Stroke (in)
4.33
Rated RPM
2500
Power Output (hp)
63

Transmission

Type
-
Forward Gears
24
Reverse Gears
24
Total Gears
24

Dimensions

Length (in)
143.9
Width (in)
65.2
Height (in)
98.8 (ROPS), 96.9 (cab)
Operating Weight (lb)
4916 (ROPS), 5313 (cab)

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
Power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
22
Front Tire Width (in)
-
Rear Tire Diameter (in)
36
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Ag
Manufacture - End Year
2006
Hitch Type
-
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Electric (assuming negative refers to the electrical ground connection)
Brake Type
-
Hydraulic System Type
-
