Kubota GM56

Last Updated: June 2024

Overview

The Kubota GM56 is a utility tractor that was manufactured between 1998 to 2006. It features a four-wheel drive (4WD) with a 4x4 MFWD chassis and is equipped with a Kubota V3300 diesel engine that delivers 55.1 horsepower. The tractor has a power steering system and uses a liquid-cooling system to maintain engine temperatures. It has a 24-speed transmission, both forward and reverse. The tractor tires are an agricultural type, with the front tire measurements being 8.3 inches in width and 20 inches in diameter, and the rear tire measurements being 12.4 inches in width and 32 inches in diameter. The dimensions of the GM56 are 143.9 inches in length, 61.6 inches in width, and it has two possible heights depending on the presence of ROPS or a cab—96.9 inches and 94.9 inches, respectively. The wheelbase is 82.7 inches and the ground clearance stands at 16 inches. The operating weight varies from 4740 pounds with the ROPS to 5049 pounds with the cab.

Key Specifications

Category: Utility

Power Output: 55.1

Drive Type: 4WD

Operating Weight: 4740 (ROPS), 5049 (cab)

Fuel Type: Diesel

Image Gallery

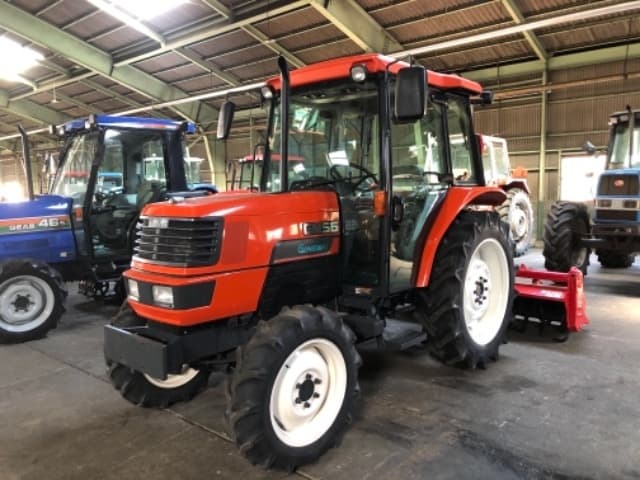

Kubota GM56 Tractor

Kubota GM56 vs. Similar Tractors

Power Output

Average

Greater than 54% of similar tractors.

Operating Weight

Average

Greater than 42% of similar tractors.

Technical Specifications

Engine

Manufacturer: Kubota
Model: V3300
Cooling Type: Liquid-cooled
Cylinder Orientation: -
Valve Configuration: -
Fuel Type: Diesel
Induction Type: -
Cylinders: 4
Displacement (ci): 202.5
Bore (in): 3.86
Stroke (in): 4.33
Rated RPM: 2200
Power Output (hp): 55.1

Transmission

Type: -
Forward Gears: 24
Reverse Gears: 24
Total Gears: -

Dimensions

Length (in): 143.9
Width (in): 61.6
Height (in): 96.9 (ROPS), 94.9 (cab)
Operating Weight (lb): 4740 (ROPS), 5049 (cab)

Power Take-Off (PTO)

PTO Type: -
PTO Speed 1 (rpm): -
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x4 MFWD 4WD
Drive Type: 4WD
Steering Type: Power
Coolant Capacity (qts): -
Front Tire Diameter (in): 20
Front Tire Width (in): 8.3
Rear Tire Diameter (in): 32
Rear Tire Width (in): 12.4
Front/Rear Rim Diameter (in): -
Tire Type: Standard (ag)
Manufacture - End Year: 2006
Hitch Type: -
Hitch Category: Category 3
Hitch Position: Rear
Hitch Capacity (lb): -
Operator Station Type: ROPS/Cab
Starter Type: Electric Starter (implied by "negative" starter and presence of starter volts)
Brake Type: -
Hydraulic System Type: -
