Kubota GL367

Last Updated: June 2024

Overview

The Kubota GL367 is a utility tractor that was manufactured between 1996 and 2001. It is equipped with a Kubota V1903 diesel engine with 4 cylinders and a displacement of 113.3 cubic inches. The engine operates at a rated speed of 2600 RPM and delivers 35.5 horsepower. The GL367 has a power shift transmission that offers 16 forward and reverse gears. The tractor is designed with a dry disc clutch. Dimensions include a length of 130.9 inches, width of 59.1 inches, and the weight varies based on the presence of ROPS or cab, ranging from 3175 to 3616 pounds. It features standard agricultural tires with the front tires sized at 8-16 and rear tires at 12.4-28. For operation, the tractor has a ROPS or cab configuration and an electric start system. Details on the hitch type and hydraulic system are not specified in the provided data.
Show more...

Key Specifications

Power Output: 35.5

Transmission: Power shift

Operating Weight: 3175 to 3616

Fuel Type: Diesel

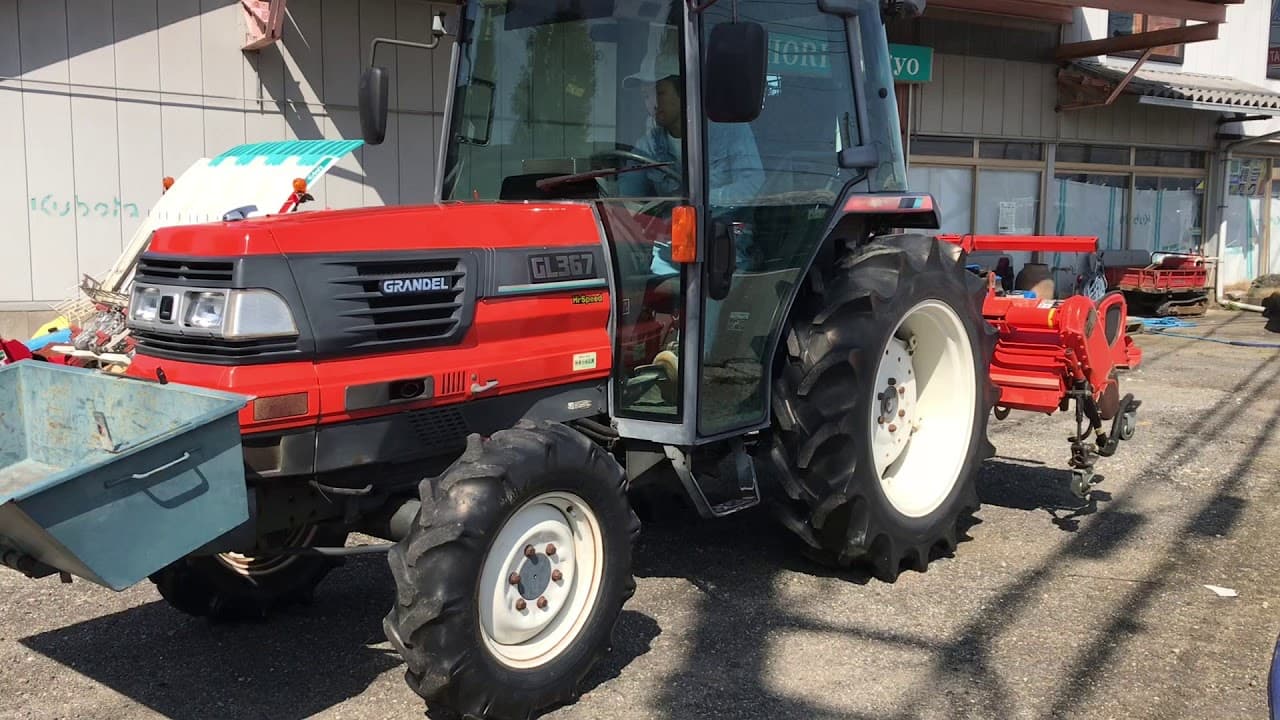

Image Gallery

Kubota GL367 Tractor Kubota GL367 Tractor Kubota GL367 Tractor Kubota GL367 Tractor Kubota GL367 Tractor Kubota GL367 Tractor Kubota GL367 Tractor Kubota GL367 Tractor Kubota GL367 Tractor Kubota GL367 Tractor

Technical Specifications

Engine

Manufacturer
Kubota
Model
V1903
Cooling Type
Liquid
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
-
Cylinders
4
Displacement (ci)
113.3
Bore (in)
3.1
Stroke (in)
3.6
Rated RPM
2600
Power Output (hp)
35.5

Transmission

Type
Power shift
Forward Gears
16
Reverse Gears
16
Total Gears
-

Dimensions

Length (in)
130.9
Width (in)
59.1
Height (in)
-
Operating Weight (lb)
3175 to 3616

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
-
Drive Type
-
Steering Type
-
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Ag
Manufacture - End Year
2001
Hitch Type
-
Hitch Category
I
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
ROPS/Cab
Starter Type
Electric
Brake Type
-
Hydraulic System Type
-
