Kubota GL338

Last Updated: June 2024

Overview

The Kubota GL338 is a compact utility tractor that was manufactured by Kubota from 1993 to 1995. It features a Kubota D1703 diesel engine with 3 cylinders and a displacement of 100.5 cubic inches, capable of delivering 32.6 horsepower at a rated RPM of 2700. The tractor has a four-wheel drive chassis with a 4x4 MFWD configuration and power steering for better maneuverability. The transmission is a power shift type offering 16 forward and reverse gears, ensuring a wide range of operation speeds. It has a wheelbase of 68.9 inches, and the tractor weighs between 2822 pounds with ROPS and 3230 pounds with a cab. Standing at a height of 78 inches for the ROPS version and 88.4 inches for the cab variant, the Kubota GL338 is designed to meet various farming needs while providing a comfortable operator experience.

Key Specifications

Category: Utility

Power Output: 32.6

Transmission: Power shift

Drive Type: MFWD

Operating Weight: 2822 (ROPS), 3230 (cab)

Fuel Type: Diesel

Image Gallery

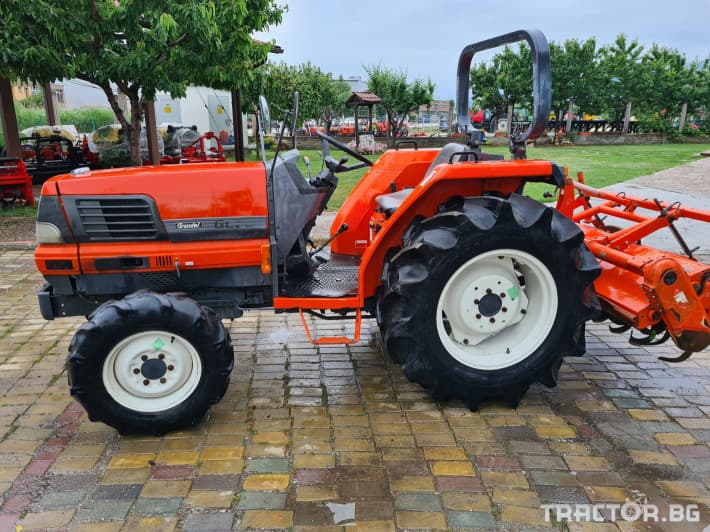

Kubota GL338 Tractor

Kubota GL338 vs. Similar Tractors

Power Output

Below Average

Greater than 28% of similar tractors.

Operating Weight

Below Average

Greater than 23% of similar tractors.

Technical Specifications

Engine

Manufacturer: Kubota
Model: D1703
Cooling Type: Liquid-cooled
Cylinder Orientation: -
Valve Configuration: -
Fuel Type: Diesel
Induction Type: -
Cylinders: 3
Displacement (ci): 100.5
Bore (in): 3.4
Stroke (in): 3.6
Rated RPM: 2700
Power Output (hp): 32.6

Transmission

Type: Power shift
Forward Gears: 16
Reverse Gears: 16
Total Gears: -

Dimensions

Length (in): 125.2
Width (in): 57.3
Height (in): 78 (ROPS), 88.4 (cab)
Operating Weight (lb): 2822 (ROPS), 3230 (cab)

Power Take-Off (PTO)

PTO Type: -
PTO Speed 1 (rpm): -
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x4 MFWD 4WD
Drive Type: MFWD
Steering Type: Power
Coolant Capacity (qts): -
Front Tire Diameter (in): -
Front Tire Width (in): -
Rear Tire Diameter (in): 24
Rear Tire Width (in): 13.6
Front/Rear Rim Diameter (in): -
Tire Type: Agricultural
Manufacture - End Year: 1995
Hitch Type: Category I
Hitch Category: 3
Hitch Position: Rear
Hitch Capacity (lb): -
Operator Station Type: -
Starter Type: Electric
Brake Type: -
Hydraulic System Type: -
