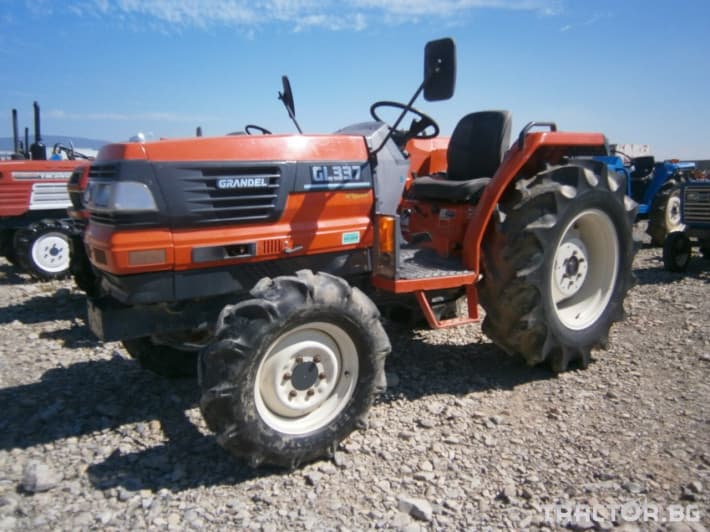

Kubota GL337

Last Updated: June 2024

Overview

The Kubota GL337 is a utility tractor that was manufactured by Kubota between 1996 and 2001. It features a Kubota D1703 diesel engine with a liquid-cooled 3-cylinder setup, capable of delivering 32.6 horsepower. With a displacement of 100.5 cubic inches, the power is adequately robust for various everyday agricultural tasks. For the engine's breath, it has a bore of 3.4 inches and a stroke of 3.6 inches, operating at a rated RPM of 2700. The tractor comes with a power shift transmission offering a notable 16 gears for both forward and reverse travel, which provides a good range of speed options for different operations. Tires on this tractor are agricultural with a rear tire diameter of 24 inches and a width of 13.6 inches. The tractor measures 125.2 inches long, 57.3 inches wide and has an overall height with the cab at 83.1 inches. It weighs in at around 3230 pounds, indicating a sturdy and durable build. With a wheelbase of 68.9 inches and ground clearance of 14.2 inches, the tractor is designed for stability and performance in a variety of conditions. Additional information about hitch specifications, hydraulic system, brake type, and more is not available in the provided data. The Kubota GL337 appears equipped to serve well in various utility roles, from fieldwork to general farm tasks, making it a versatile asset for a small to medium-scale farming enterprise.
Show more...

Key Specifications

Category: Utility

Power Output: 32.6

Transmission: Power shift

Operating Weight: 3230

Fuel Type: Diesel

Kubota GL337 vs. Similar Tractors

Power Output
Below Average
Greater than 28% of similar tractors.
Operating Weight
Below Average
Greater than 27% of similar tractors.

Technical Specifications

Engine

Manufacturer
Kubota
Model
D1703
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
-
Cylinders
3
Displacement (ci)
100.5
Bore (in)
3.4
Stroke (in)
3.6
Rated RPM
2700
Power Output (hp)
32.6

Transmission

Type
Power shift
Forward Gears
16
Reverse Gears
16
Total Gears
-

Dimensions

Length (in)
125.2
Width (in)
57.3
Height (in)
83.1
Operating Weight (lb)
3230

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
565
PTO Speed 2 (rpm)
800
PTO Speed 3 (rpm)
980

Miscellaneous

Chassis
-
Drive Type
-
Steering Type
-
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
24
Rear Tire Width (in)
13.6
Front/Rear Rim Diameter (in)
-
Tire Type
Agricultural
Manufacture - End Year
2001
Hitch Type
-
Hitch Category
I
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Electric
Brake Type
-
Hydraulic System Type
-
