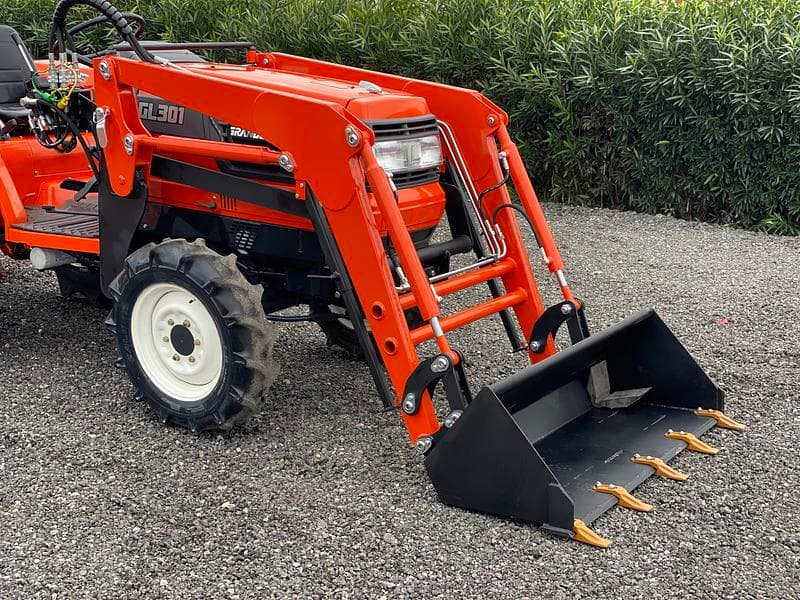

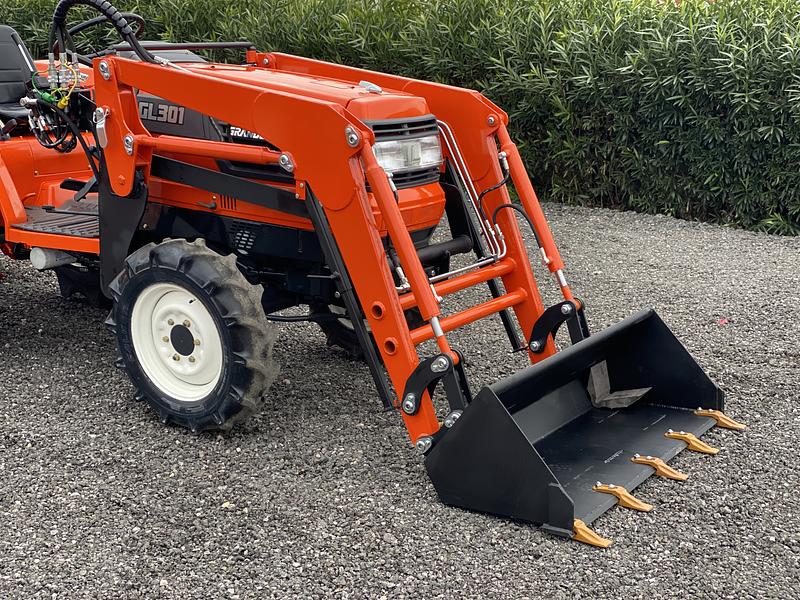

Kubota GL301

Last Updated: September 2024

Overview

The Kubota GL301 is a utility tractor that was made from 1996 to 2001. It's a 4-wheel drive tractor with power steering, which makes it easy to handle. The tractor has a gear transmission with 16 forward and 16 reverse speeds, giving drivers lots of options for different tasks.

Under the hood, the GL301 has a Kubota D1503 engine. This engine is diesel-powered and has 3 cylinders. It's liquid-cooled, which helps keep it running smoothly. The engine puts out 30.6 horsepower, which is below average for tractors. However, it runs at a very high 2700 RPM, making it responsive. The tractor has agricultural tires in front and back, perfect for farm work. It's 125.2 inches long and 55.9 inches wide, making it compact enough for various jobs. Farmers can choose between a ROPS (roll-over protection structure) or a cab for the operator's seat.
Show more...

Key Specifications

Category: Utility

Power Output: 31 hp (22.8 kW)

Transmission: Gear with power shift

Drive Type: 4WD

Fuel Type: Diesel

Kubota GL301 vs. Similar Tractors

Power Output

The Power Output for the Kubota GL301 is Below Average. It is greater than 26% of similar Utility tractors in our database.

Horsepower distribution of Utility tractors

(across 4.7K+ tractors in our database)

Engine Displacement

The Engine Displacement for the Kubota GL301 is Below Average. It is greater than 22% of similar Utility tractors in our database.

Engine displacement distribution of Utility tractors

(across 1K+ tractors in our database)

Engine Rated RPM

The Engine Rated RPM for the Kubota GL301 is Above Average. It is greater than 90% of similar Utility tractors in our database.

Engine rated RPM distribution of Utility tractors

(across 1K+ tractors in our database)

Technical Specifications

Engine

Manufacturer
Kubota
Model
D1503
Cooling Type
Liquid-cooled
Fuel Type
Diesel
Cylinders
3
Displacement
92 ci (1.5 L)
Bore
3.27 in (83.0 mm)
Stroke
3.64 in (92.4 mm)
Rated RPM
2700
Power Output
31 hp (22.8 kW)

Transmission

Type
Gear with power shift
Forward Gears
16
Reverse Gears
16

Drivetrain

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
Power
